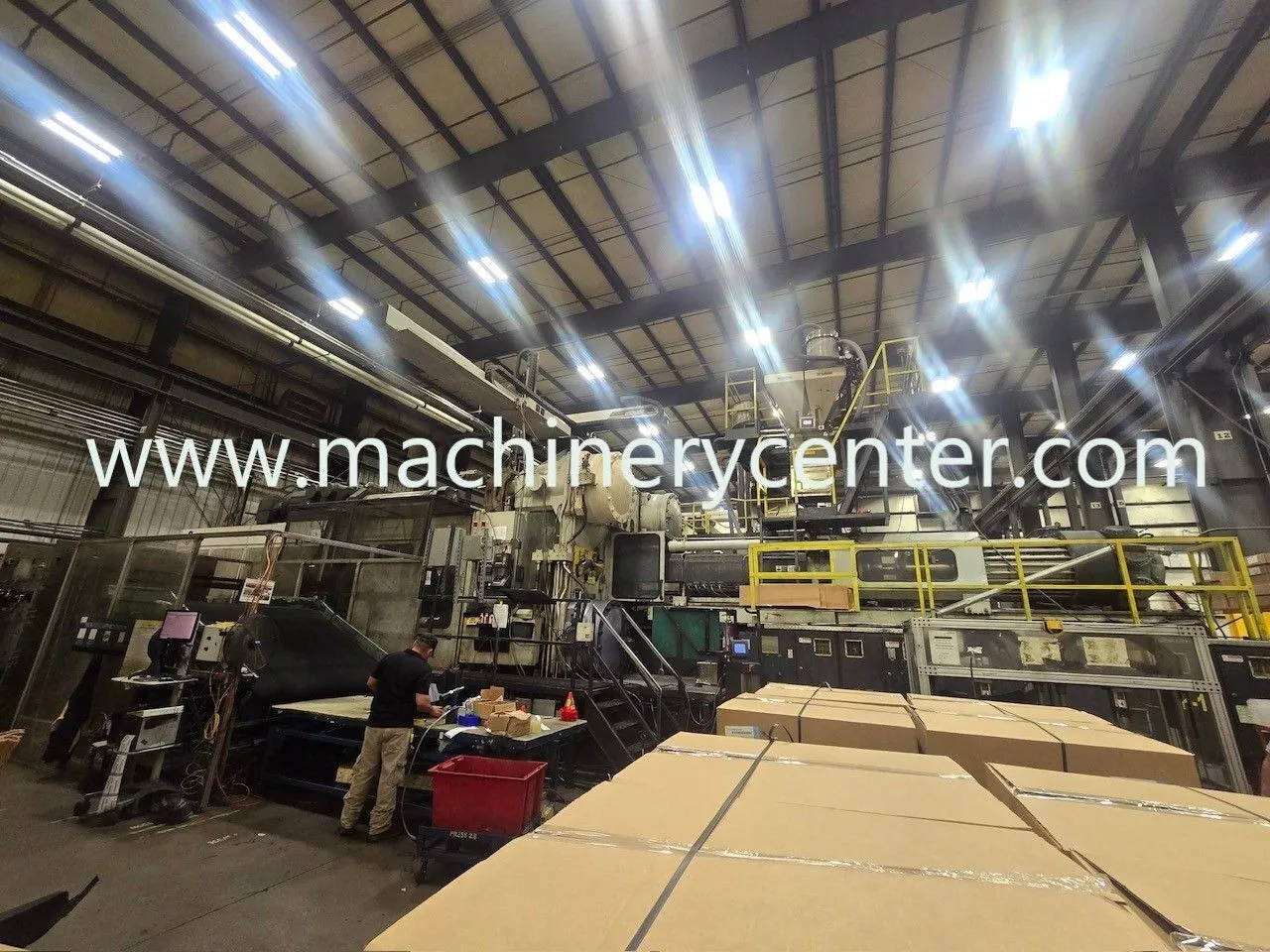

5000 Ton, 786 Oz. HPM Injection Molding Machine '99
Model: HPM 5000
| Year | 1999 | 1999 |
| Tonnage | 5000 | 5000 |
| Shot Size | 786 | 786 |
| Platen Size | 137" x 116.1" | 137" x 116.1" |
| Tie Bar Spacing | 92.9" x 74.8" | 92.9" x 74.8" |
| Mold Height (Min) | 37.4" | 37.4" |
| Mold Height (Max) | 80.71" | 80.71" |
| Daylight | 170" | 170" |
| Clamp Stroke | 114.2" | 114.2" |
| Screw Diameter | 7.87" | 7.87" |
| LD Ratio | 20:1 | 20:1 |
| Control | Camac 486 | Camac 486 |
| Horz/Vert | Horz | Horz |
2800 PSI
786 Oz. Injection Unit
Had A Full Milacron Retrofit - Milacron Controls & Pumps
