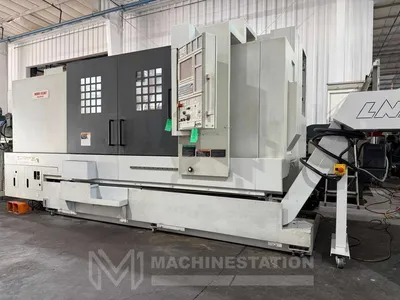

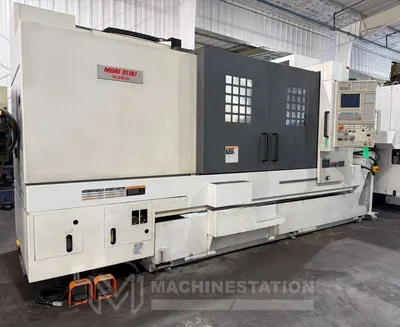

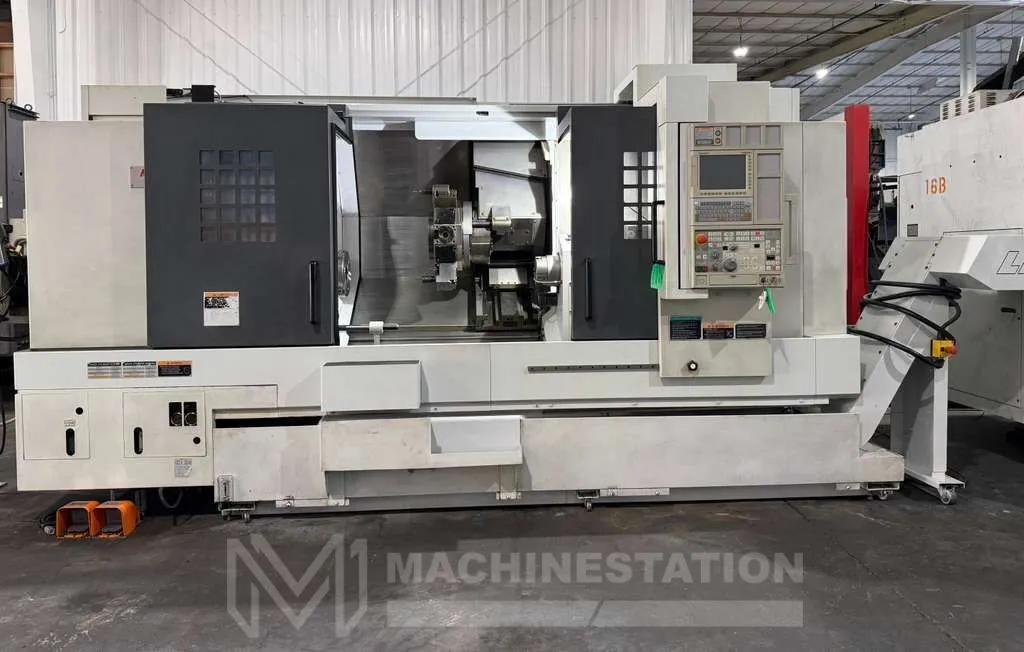

USED 2011 MORI SEIKI NL2500SY/1250

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

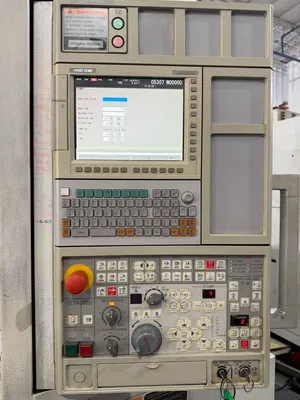

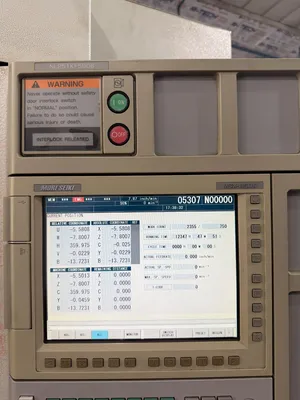

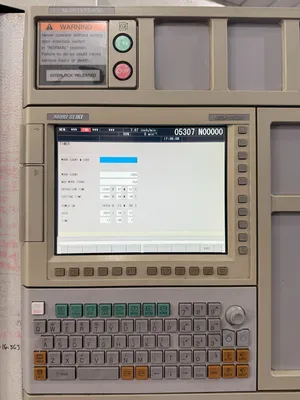

Mori Seiki MSX-850IV CNC Control
8,607 Hours Cutting Time
Heavy Duty Box Way Construction
25 HP Main Spindle Power
PCMCIA Card Slot
Rigid Tapping
Coolant System
Automatic Lubrication System

Capacity:
Max Turning Diameter: 14.0″
Max Turning Length: 51.1″
Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″

Travels:
X Axis Travel: 10.2″
Y Axis Travel: 3.9″ (±2.0)
Z Axis Travel: 53.0″
B Axis Travel (Sub Spindle): 50.6″
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM
Rapid Traverse Rate Y Axis: 394 IPM
Rapid Traverse Rate B Axis: 787 IPM

Main Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.7″
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Turret Type: BMT

General:

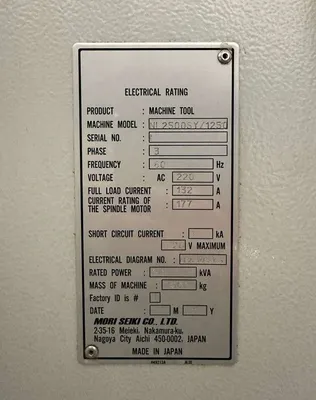

Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 50 kva
Overall Dimensions: 171″ x 85″ x 88″ High
Weight : 16,750 lbs Approx.

Bar Feeder Interface

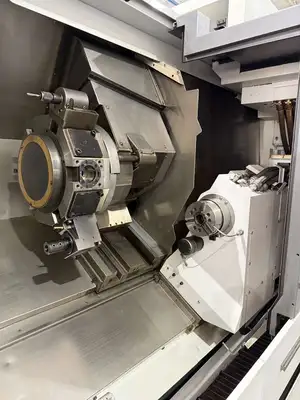

10" 3-Jaw Kitagawa Chuck on Main Spindle

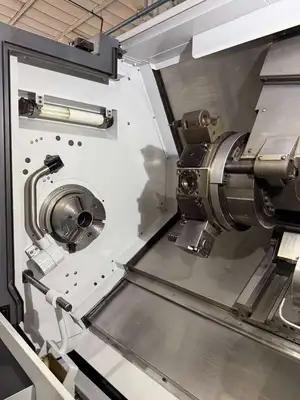

8" 3-Jaw Kitagawa Chuck on Sub Spindle
C Axis Capable
Y Axis On Turret
12 Station High Speed Live Tool Turret
Oil Cooling Unit
Tool Presetter
Parts Catcher
LNS Chip Conveyor
Foot Switches
Comes with two static and one live tool holder.
