SUNRISE K-Series Ironworkers range in capacities from 50 to 95 Tons and feature a vertical cylinder design. The K-series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
| Punch Tonnage | 66 T | 59,874.3 kg |
| Punch Max. Capacity | 7/8" in 3/4" | 7/8" in 3/4" |
| Angle Shear - Maximum Capacity | 4" x 4" x 3/8" | 4" x 4" x 3/8" |
| Notcher | 2" x 3-1/2" x 5/16" | 2" x 3-1/2" x 5/16" |
| Shear Capacity Plate | 14" x 5/8" with Standard Hydraulic Hold-Down for all Shearing Functions! | 14" x 5/8" with Standard Hydraulic Hold-Down for all Shearing Functions! |
| Angle (L1) | 4" | 101.6 mm |
| Angle (L2) | 4" | 101.6 mm |
| Angle (T) | 0.375" | 9.525 mm |
| Throat Depth | 7" | 177.8 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 7.5 hp | 7.5 hp |
| Dimensions | 47 x 30 x 64 in. | 47 x 30 x 64 in. |
| Weight | 2,925 lbs. | 2,925 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

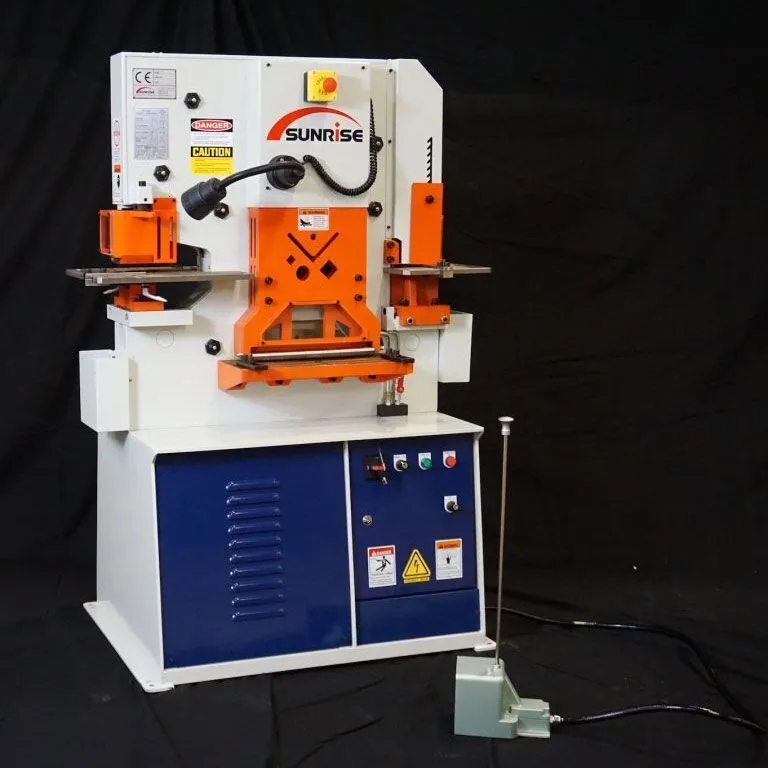

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
