SUNRISE K-Series Ironworkers range in capacities from 50 to 95 Tons and feature a vertical cylinder design. The K-series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
| Punch Tonnage | 50 T | 45,359.3 kg |
| Punch Max. Capacity | 1-1/2" in 3/8" material or 13/16" in 11/16" material | 1-1/2" in 3/8" material or 13/16" in 11/16" material |
| Angle Shear - Maximum Capacity | 3" x 3" x 1/4" | 3" x 3" x 1/4" |
| Notcher | 2" x 3-1/2" x 1/4" | 2" x 3-1/2" x 1/4" |
| Shear Capacity Plate | 12" x 3/8" | 12" x 3/8" |
| Angle (L1) | 3" | 76.2 mm |
| Angle (L2) | 3" | 76.2 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Throat Depth | 6.5" | 165.1 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 5 hp | 5 hp |
| Dimensions | 41 x 30 x 58 in. | 41 x 30 x 58 in. |
| Weight | 1,848 lbs | 1,848 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

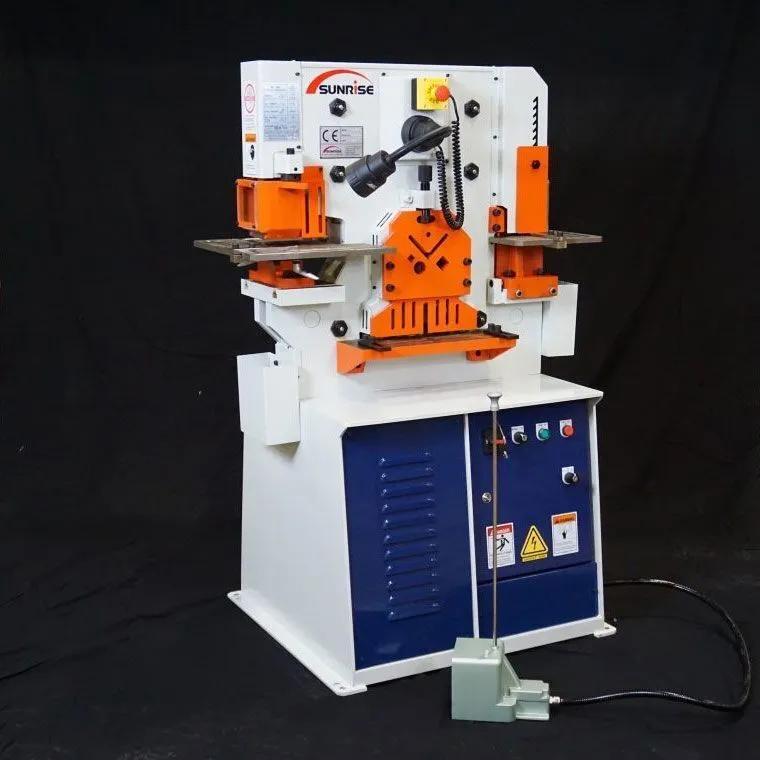

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
