New | in-Stock

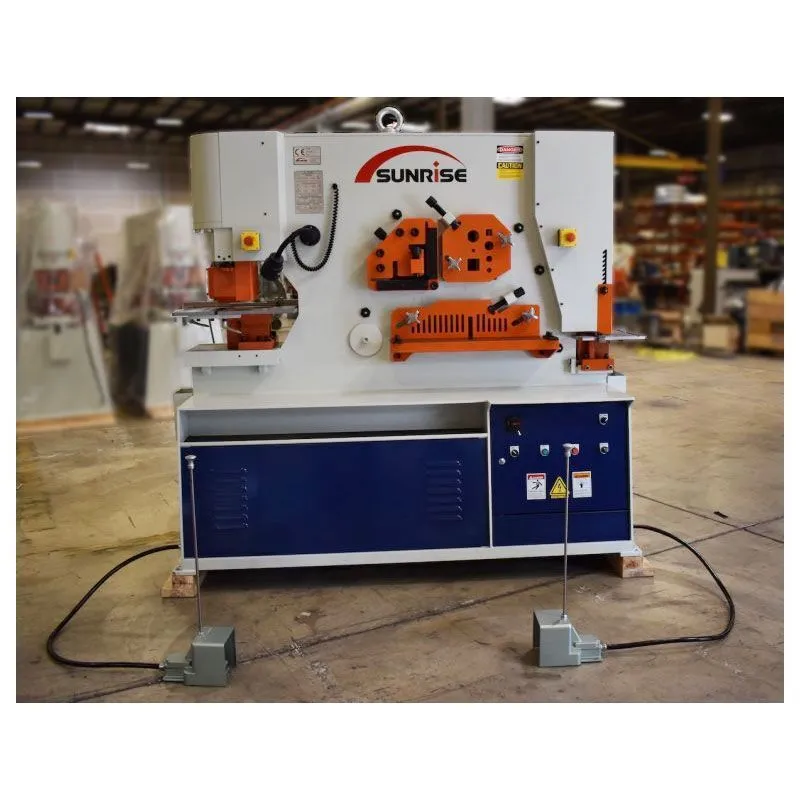

NEW SUNRISE IW-135S

Florida, United States
Asking Price
USD $51,500.00
1 available
3,886Listings|10Followers
Overview
Ironworkers

SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 to 185 Tons and feature two high-speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.

Specs
Punch Tonnage
135 T
122,470.1 kg
Angle Shear - Maximum Capacity
6 x 6 x 11/16 in. – 3 x 3 x 3/8 in. Miter
6 x 6 x 11/16 in. – 3 x 3 x 3/8 in. Miter
Notcher
2-1/2 x 3-1/2 x 5/8 in.
2-1/2 x 3-1/2 x 5/8 in.
Shear Capacity Plate
24 x 11/16 in. or 16 x 1 in.
24 x 11/16 in. or 16 x 1 in.
Angle (L1)
6"
152.4 mm
Angle (L2)
6"
152.4 mm
Angle (T)
0.6875"
17.463 mm
Throat Depth
12"
304.8 mm
Electrics
3-Phase, 220/480v
3-Phase, 220/480v
Power
15 hp
15 hp
Dimensions
86 x 41 x 73 in.
86 x 41 x 73 in.
Weight
7,375 lbs.
7,375 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
