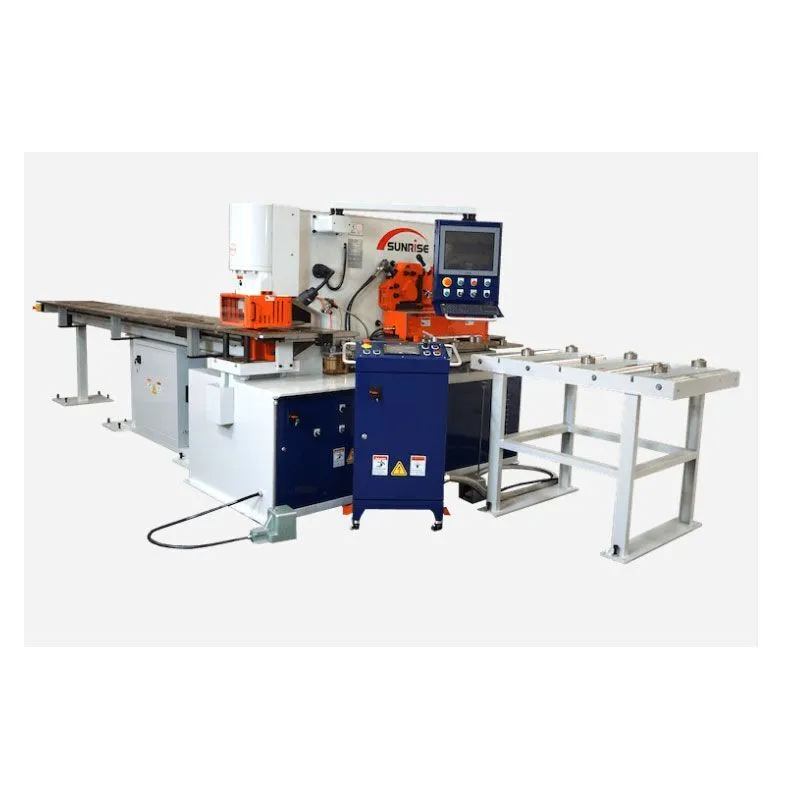

NEW SUNRISE IW-110SD SEMI-CNC

Florida, United States
Asking Price
USD $149,950.00
1 available
3,746Listings|8Followers
Overview
Ironworkers

120" x 16" Semi-CNC Gauge Table | 110 Tons | 6" Angle | 24" Plate | CNC Shear | PC Controller
The Semi-Automatic CNC positioning tables from SUNRISE are plate and angle positioning systems with touch-screen interfaces. The CNC positioning table is available as a factory-installed option on any dual-cylinder ironworker or punching machine with a 20” or larger throat depth.

Specs
Punch Tonnage
110 T
99,790.4 kg
Punch Max. Capacity
1.125" in 1"
1.125" in 1"
Angle Shear - Maximum Capacity
6" x 6" x 1/2"
6" x 6" x 1/2"
Notcher
2" x 3-1/2" x 3/8"
2" x 3-1/2" x 3/8"
Shear Capacity Plate
25" x 9/16" – 14" x 1"
25" x 9/16" – 14" x 1"
Angle (L1)
6"
152.4 mm
Angle (L2)
6"
152.4 mm
Angle (T)
0.5"
12.7 mm
Throat Depth
20"
508 mm
Electrics
3-Phase, 220/480v
3-Phase, 220/480v
Power
15 hp
15 hp

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
