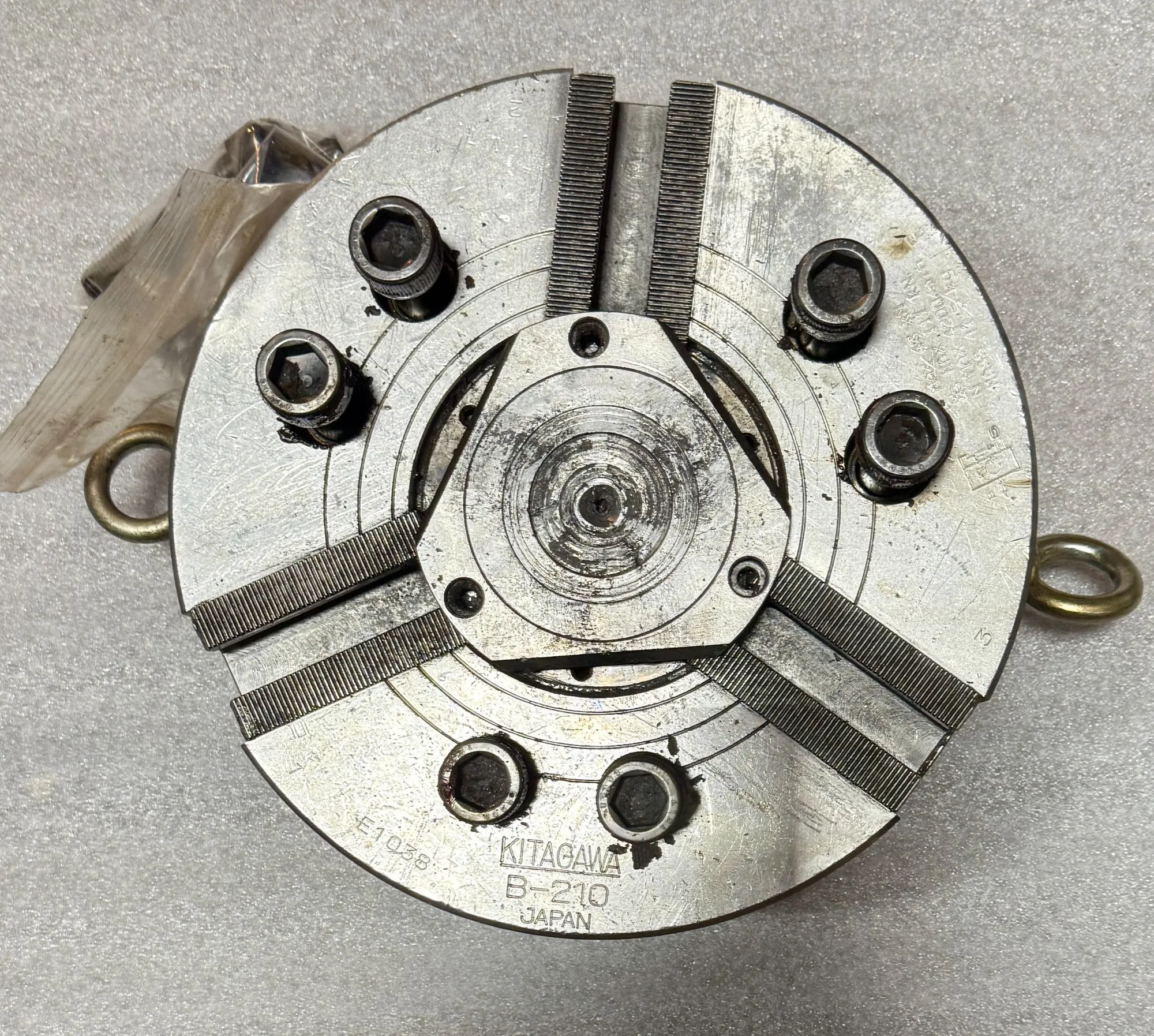

10" KITAGAWA B-210 3-JAW CHUCK with Draw Tube and Kitagawa Hydraulic Actuator S1875-21E, 2.95" Through Hole, 0.35" Jaw Stroke, Flat Back, 4200 RPM Max Speed, 111 kN Clamp Force.
| Type | Self-centering | Self-centering |
| # Jaws | 3 | 3 |
| Type of Actuation | Hydraulic | Hydraulic |
| Body Diameter | 10" | 254 mm |
| Body Height | 6" | 152.4 mm |
| Through Hole Diameter | 2.9528" | 75 mm |
| Jaw Stroke | 0.3465" | 8.8 mm |
| Max Speed | 4,200 RPM | 4,200 RPM |
| Max Pull Force | 9,666.8 lbf | 43 kN |
| Max Grip Force | 24,953.8 lbf | 111 kN |
| Min Grip | 1.2205" | 31 mm |
| Max Grip | 10" | 254 mm |
Chuck: 15" x 15" x 6", 71 lbs
Draw Tube : 42" x 12" x 10", 33 lbs
Actuator: 21" x 18" x 18", 86 lbs
Draw Tube, Kitagawa Hydraulic Actuator S1875-21E
