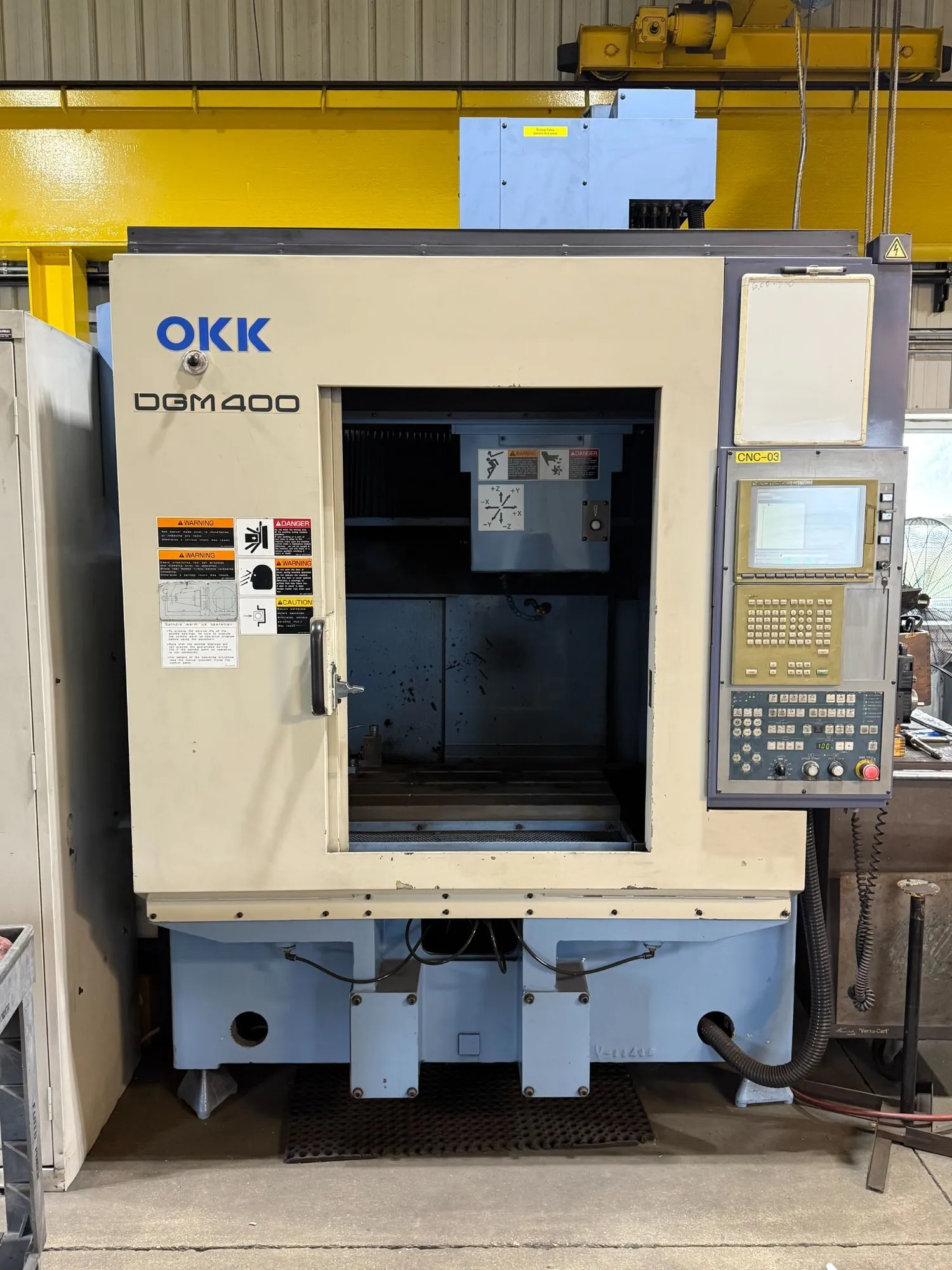

1999 OKK DGM-400 High Speed Graphite Vertical Machining Center with Mitsubishi Neomatic 635 Control, 20,000 RPM Spindle, Daikin Oil Chiller (2017).
| X | 22.05" | 560.07 mm |
| Y | 16.14" | 409.96 mm |
| Z | 16.14" | 409.96 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 16 | 16 |
| Taper | 30 | 30 |
| Table-W | 18" | 457.2 mm |
| Table-L | 30" | 762 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mitsubishi Neomatic CNC Control) | CNC (Mitsubishi Neomatic CNC Control) |
| Dimensions | 5.5' x 10.05' x 9.1' | 5.5' x 10.05' x 9.1' |
| Weight | 11,464 LBS | 11,464 LBS |
Table Dimensions...............30.32" x 17.72"
Max.load on table..............1,102 LBS
Spindle nose to table..........5.9" - 22.05"
Floor to table surface.........32.68"
Max. long travel, X-Axis.......22.05"
Max. cross travel, Y-Axis......16.14"
Max. vert travel, Z-Axis.......16.14"
Spindle drive motor............10 HP
Spindle speed..................20,000 RPM
Rapid traverse X and Y Axes....1,417 IPM
Rapid traverse Z-Axis..........945 IPM
Max. feed rate (all axes)......630 IPM
Magazine capacity..............16
Tool shank.....................BT-30
Max. tool diameter.............2.36"
Max. tool length...............7.87"
Max. tool weight...............11 LBS
Tool change time...............1.5 Seconds
Chip to chip...................6.0 Seconds
Air pressure required..........72.5 PSI
Air flow required..............184 GPM
Dimensions.....................5.5' x 10.05' x 9.1'
Weight.........................11,464 LBS
Neomatic 635 (Mitsubishi) CNC Control
20,000 RPM Spindle
Full Enclosure
Interior Lightning
Air Blast
Spindle Oil Cooler
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
