SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 to 185 Tons and feature two high-speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
| Punch Tonnage | 110 T | 99,790.4 kg |
| Punch Max. Capacity | 1-1/8" in 1" | 2" in 9/16" | 1-1/8" in 1" | 2" in 9/16" |
| Angle Shear - Maximum Capacity | 6" x 6" x 1/2" – 3" x 3" x 3/8" Miter (Some with Hydraulic Angle Hold Down) | 6" x 6" x 1/2" – 3" x 3" x 3/8" Miter (Some with Hydraulic Angle Hold Down) |
| Notcher | 2-1/2" x 3-1/2" x 1/2" | 2-1/2" x 3-1/2" x 1/2" |
| Shear Capacity Plate | 24" x 5/8" | 16" x 3/4" | 12" x 1" (Some with Hydraulic Plate Hold Down) | 24" x 5/8" | 16" x 3/4" | 12" x 1" (Some with Hydraulic Plate Hold Down) |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Throat Depth | 20" | 508 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 10 hp | 10 hp |
| Weight | 7,625 lbs. | 7,625 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

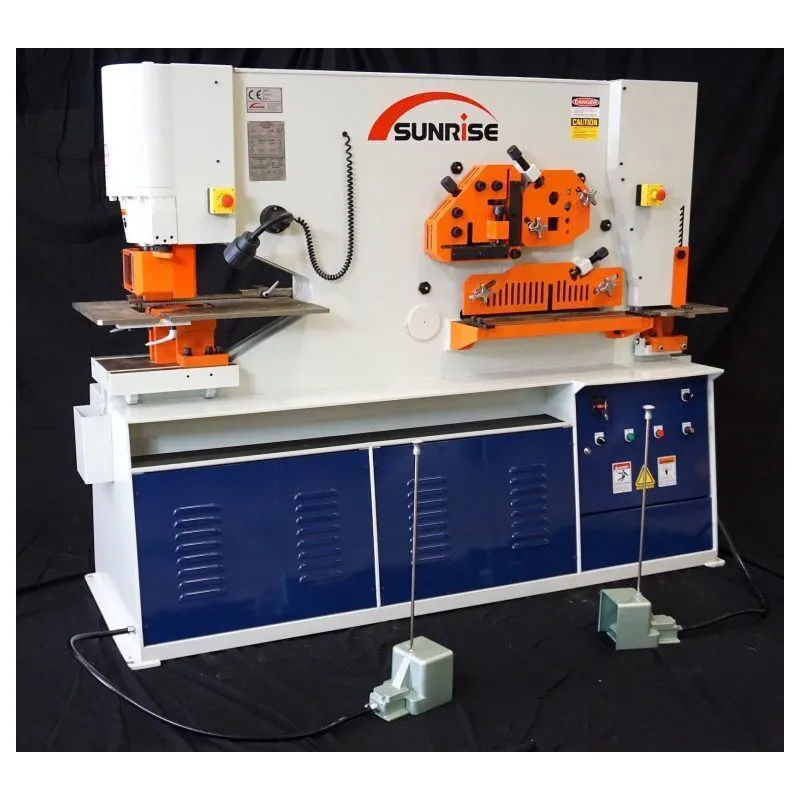

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
