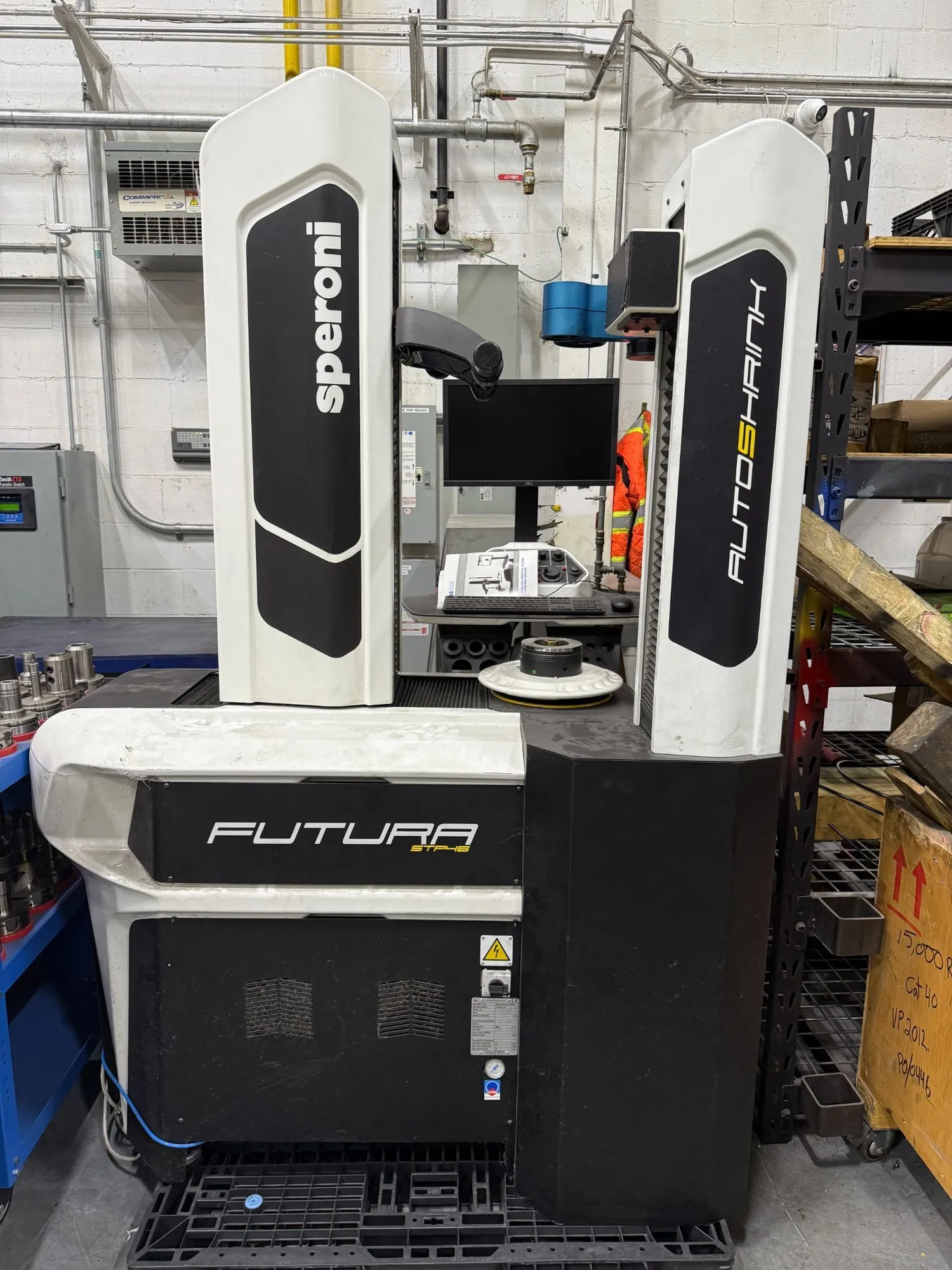

USED 2020 SPERONI FUTURA STP 46 A3
Overview
Description
2020 SPERONI STP46A3 TOOL PRESETTER AND MEASURING UNIT
Manufacturer: Speroni
Model: STP 46 A3
Mfg Date: 2020
POWER: 400v, 50/60hz, 3ph
Type: Tool presetter and measuring unit
Construction: Aged pearlitic cast-iron body for thermal and mechanical stability
Pneumatic requirement: 0.5–0.7 MPa
CAPACITY
Maximum tool diameter: 400 mm
Maximum tool height (length): 600 mm
Axes: X and Z
PRECISION & PERFORMANCE
Repeatability: 1 micron or better
Spindle concentricity: Within 1 micron
Total indicated runout (T.I.R.) at 300 mm: Less than 5 microns
Integral spindle: ISO 50 type
OPTICAL SYSTEM
Telecentric optical system with 45× magnification
High-resolution digital camera
Front-light edge inspection illumination
Glass linear scales for measurement accuracy
CONTROL & SOFTWARE
Manual fine-adjustment knobs for X and Z movement
Automatic mechanical toolholder clamping
Integrated tool management, data storage, and CNC transfer capability
Network connectivity and post-processor data output
Industry 4.0 readiness
Weight: 570 kg
Machine Dimensions: 51'' x 63'' x 82''in
Specifications
| Dimensions | 51'' x 63'' x 82'' | 51'' x 63'' x 82'' |
|---|---|---|
| Weight | 570 kg | 570 kg |
