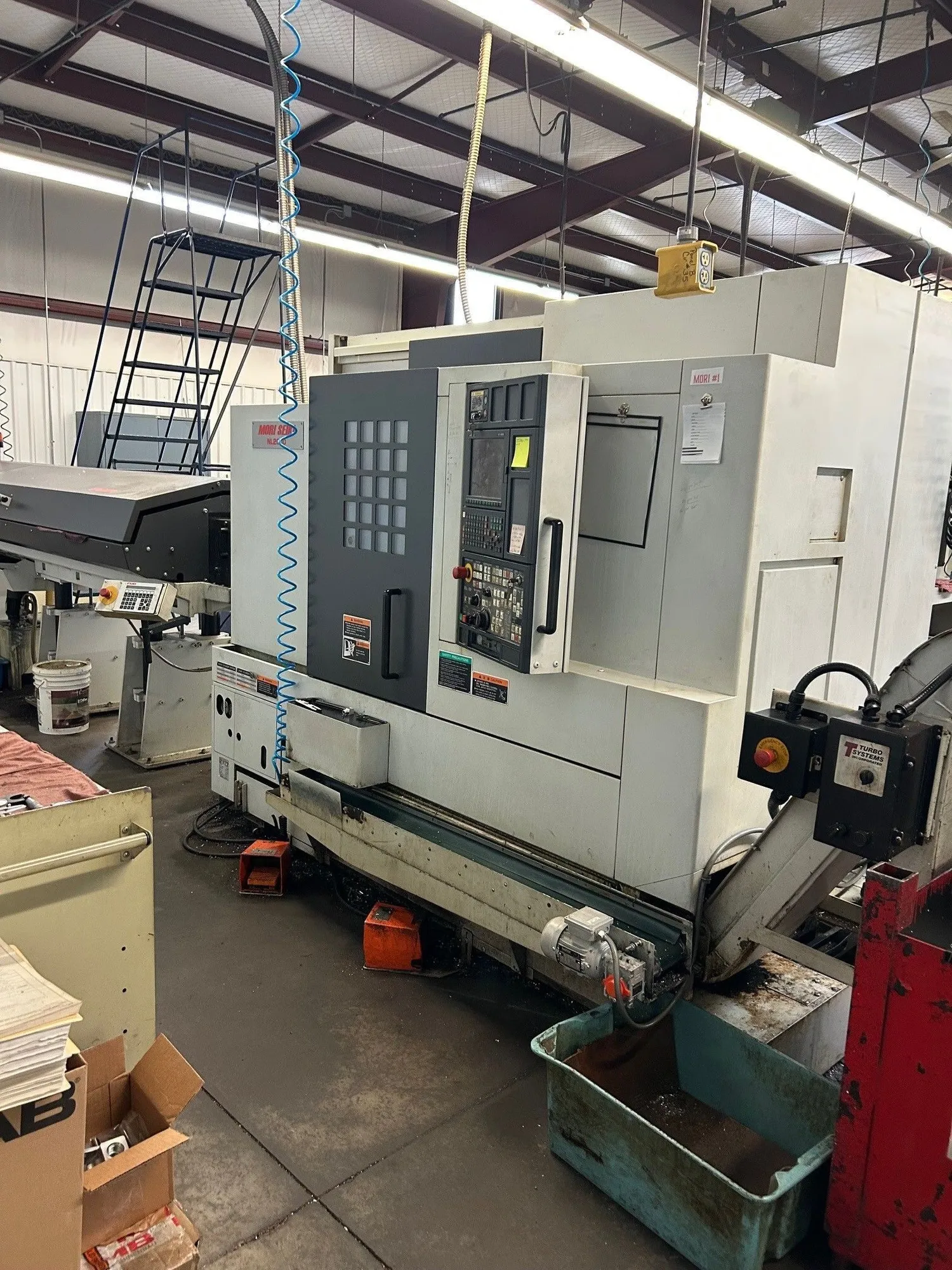

USED 2006 DMG MORI NL2000SY/500
Overview
Specifications
| X-Axis | 10.24" | 260.1 mm |
|---|---|---|
| Y-Axis | 3.94" | 100.08 mm |
| Z-Axis | 22.83" | 579.88 mm |
| C-Axis | 360 | 360 |
| Swing | 22.8" | 579.12 mm |
| Machining Length | 20" | 508 mm |
| Turning Dia | 10.9" | 276.86 mm |
| Max Turning Length | 20.44" | 519.18 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Chuck Size | 8" | 203.2 mm |
| # Axis | 5 | 5 |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Max Tool Spindle Speed | 6000 rpm | 6,000 RPM |
| Spindle Nose | A2-6 | A2-6 |
| Twin Spindle | Yes | Yes |
| Tool Changer | No | No |
| Tailstock (Yes/No) | No | No |
| Sub Spindle Speed | 6000 rpm | 6,000 RPM |
| Live Tool Speed | 6000 rpm | 6,000 RPM |
| Milling on Upper and Lower Turret | Upper Only | Upper Only |
| Slide travel (Y) | 3.94 | 3.94 |
| Bar Capacity L-Spindle | 2.56" | 65.024 mm |
| Bar Capacity R-Spindle | 1.77" | 44.958 mm |
| Spindle Speed L-Spindle | 5,000 RPM | 5,000 RPM |
| Spindle Speed Range L-Spindle | 50-5000 | 50-5000 |
| Spindle Nose L-Spindle | A2-6 | A2-6 |
| Hole Through Draw Tube L-Spindle | 2.56" | 65.024 mm |
| Spindle Speed R-Spindle | 6,000 RPM | 6,000 RPM |
| Spindle Speed Range R-Spindle | 50-6000 | 50-6000 |
| Spindle Nose R-Spindle | A2-5 | A2-5 |
| Hole Through Draw Tube R-Spindle | 1.77" | 44.958 mm |
| Turret Stations | 12 | 12 |
| Number of Rotation Tool Station | 12 | 12 |
| Control | CNC | CNC |
| Dimensions | 133 x 63 x 71 in | 133 x 63 x 71 in |
| Weight | 17600 lbs | 17600 lbs |
Equipped With
Sub Spindle w/ Y-axis
Hydraulic Pump with Chiller
FMB Bar Feeder
