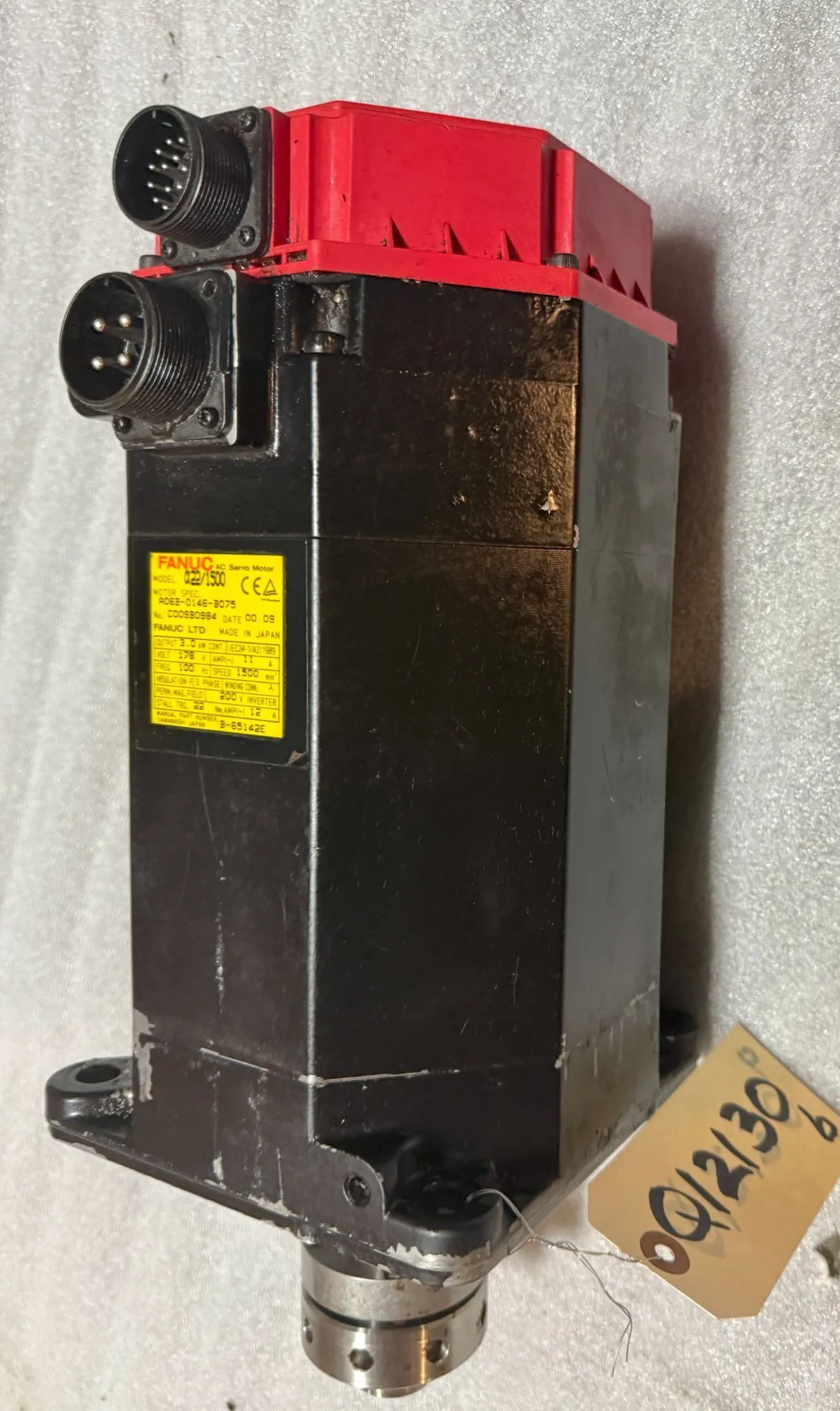

FANUC A06B-0146-B075 AC SERVO MOTOR Alpha 22/1500, 179 V, 1500 RPM.
| Current Type | AC | AC |
| Torque (Stall) | 22 Nm | 21.8 N |
| Amp (Stall) | 12 A | 12 A |
| Voltage | 179 V | 179 V |
| Amperage | 11 A | 11 A |
| Max Speed | 1,500 RPM | 1,500 RPM |
| Frequency | 100 Hz | 100 Hz |
| Motor Phase | 3 | 3 |
| Power | 4 hp | 3 kW |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Manual No | B-65142E | B-65142E |
| Standards | IEC34-1/A2 | IEC34-1/A2 |
| Dimensions | 22" x 11" x 14" | 22" x 11" x 14" |
| Weight | 72 lbs | 72 lbs |
