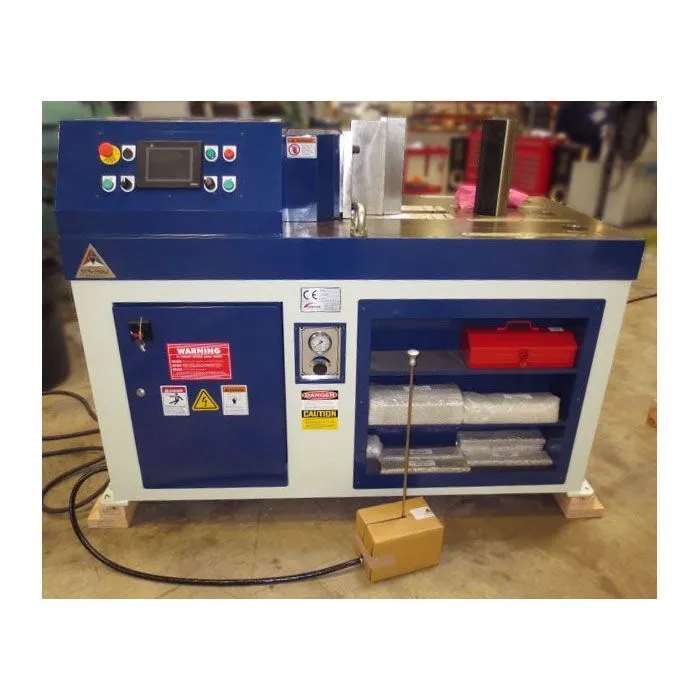

The SUNRISE hydraulic bending machines, available in either 45 or 82 tons, offer a wide range of tooling for different bending operations. Custom tooling is also available. A manual back gauge is included for accurate positioning. Both HBM models feature a standard programmable touch-screen controller with 50 program memory.
| Pressure | 82 T | 74,389.2 kg |
| Stroke Length | 14" | 355.6 mm |
| Forward Speed | 0.4 in/sec. | 10.9 mm/sec. |
| Backward Speed | 0.6 in/sec. | 14 mm/sec. |
| Motor | 7.5 HP | 7.5 HP |
| Phase | 3-Phase | 3-Phase |
| Voltage | 220/480v | 220/480v |
| Stroke Length | 14" | 355.6 mm |
| Dimensions | 70 x 32 x 50 in. | 70 x 32 x 50 in. |
| Weight | 4,600 lbs. | 4,600 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
