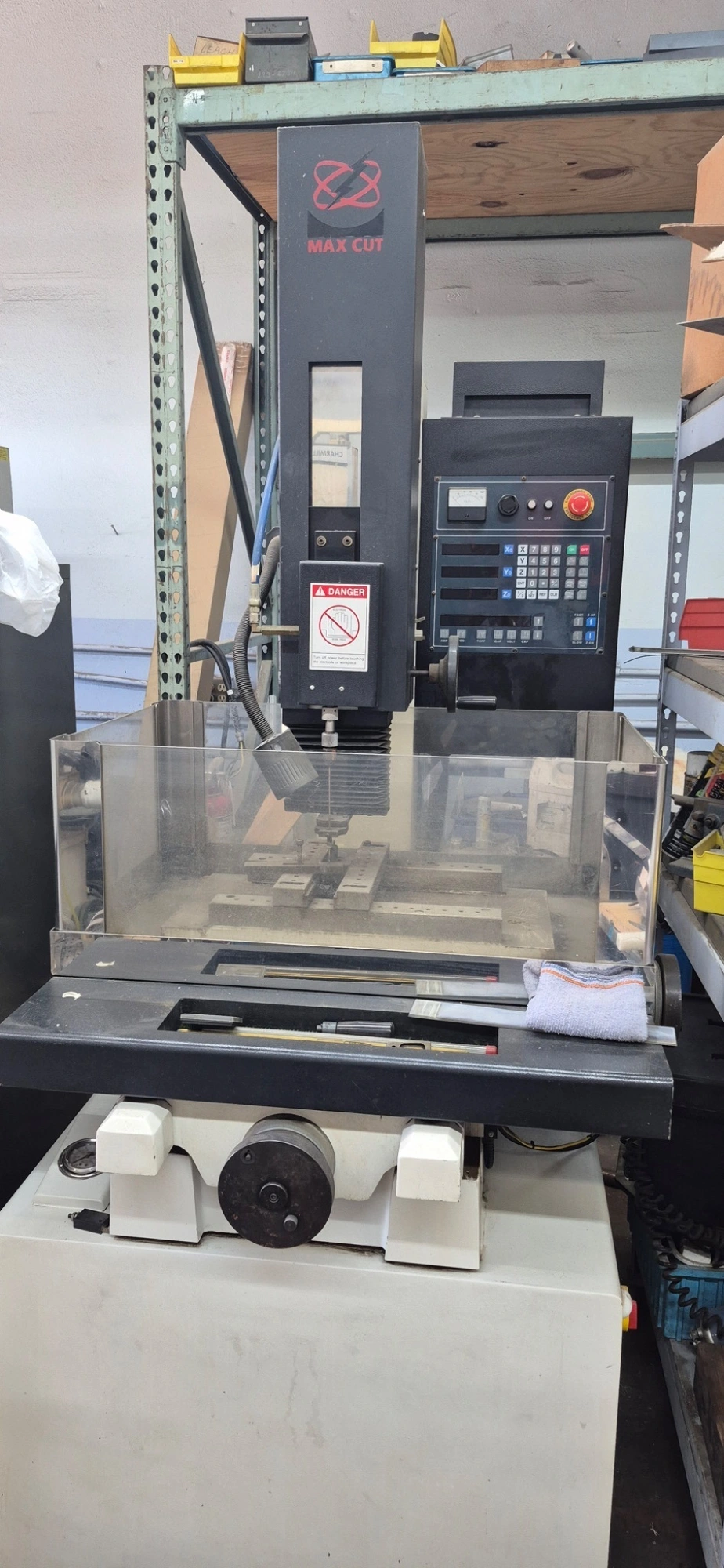

Belmont Max Cut EDM Small Hole Drill
ZNC EDM Hole Drill
17.71" x 11.81" x 11.81" Max Workpiece
0.3mm - 3 mm EDM Tube Diameter
30 Amp Generator
| Table Dimension Length | 450 mm | 17.717" |
| Table Dimension Width | 300 mm | 11.811" |
| Table Load Capacity | 150 kg | 330.7 lb |
| X - Axis Travel | 300 mm | 11.811" |
| Y - Axis Travel | 250 mm | 9.8425" |
| Z - Axis Travel | 120 mm | 4.7244" |
| Guide Axis Travel | 350 mm | 13.78" |
| Hole-Dia. (Min) | 0.3 mm | 0.0118" |
| Hole-Dia. (Max) | 3 mm | 0.1181" |
| Power Supply | 30 a | 30 A |
| Dimensions | 1400 x 1600 x 1800 mm | 1400 x 1600 x 1800 mm |
| Weight | 900 kg | 900 kg |
