Mauldin Machine Inc.
Dealers In New and Used Industrial Metal Working Machinery
PROPOSAL
We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales”, for immediate acceptance, the following:

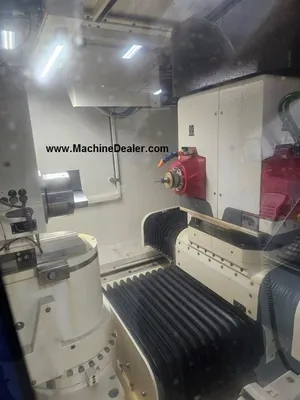

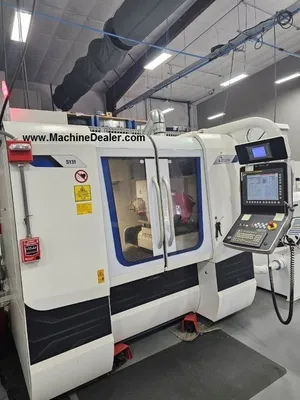

ONE PREOWNED STUDER MODEL S131 RADIUS INTERNAL
CYLINDRICAL CNC GRINDER – NEW 2020
SPECIFICATIONS:
Swing Over Table 300 mm
Maximum Workpiece Length 300 mm
Maximum Grinding Length Internal 165 mm
Maximum Grinding Length External 125 mm
Maximum Travel X Axis 350 mm
X Axis Transverse Speed…………………………….…..…0.001-20,000 mm/min
Maximum Travel Z Axis 400 mm
Z Axis Transverse Speed………………………………..….0.001-20,000 mm/min
Swivel Range Axis B5……………………………………….….-91 to +61 Degrees
Spindle Turret Max Number of Spindles……………………………………4
Spindle Turret Swivel Range…………………………………-50 to +280 Degrees
Chuck Workhead Rotational Speed Range 1 to 1500 RPM
Chuck Workhead Face and Mount A4/ MK5
Chuck Workhead Spindle Bore 35.5 mm
Chuck Workhead Drive 3 KW
Internal Grinding Speed…………………………………………..24,000 to 120,000 RPM
Footprint Excluding Coolant System………………………………..89” L-R / 120” F-B
Approximate Shipping Weight………………………………………….……12,600 Lbs.
FEATURES & EQUIPMENT:

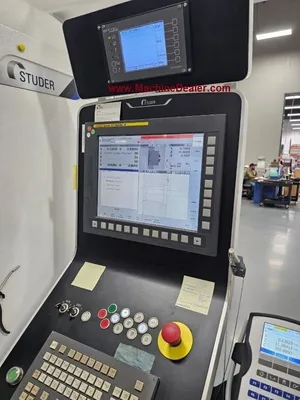

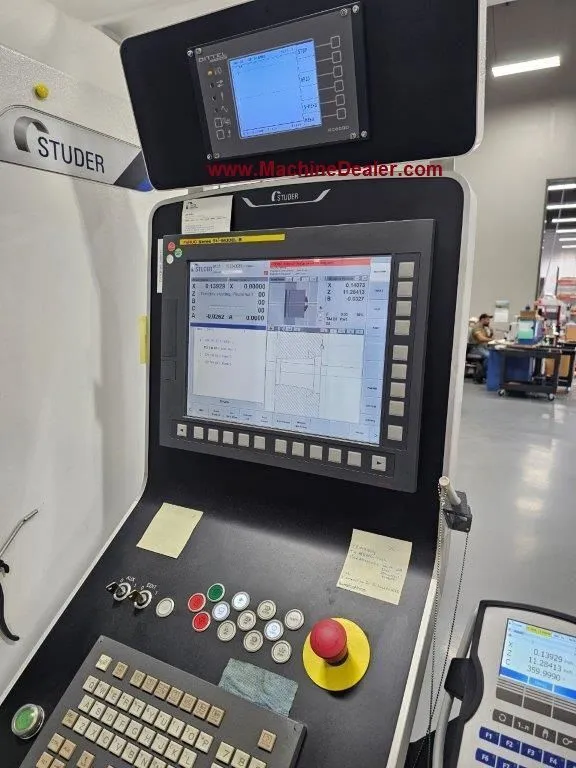

Fanuc 31iB CNC Control
15” Flat Screen Color with touch function
UBS Interface

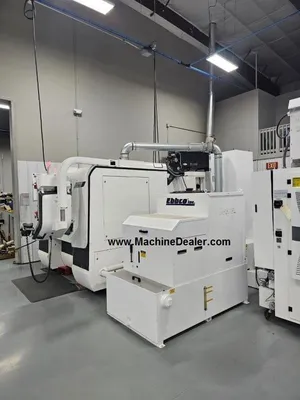

Coolant System with filtration
All Documentation
CONDITION: VERY GOOD TO EXCELLENT. VERY LOW HOURS. INSPECT UNDER POWER. BEING OFFERED AS IT NO LONGER NEEDED IN THE OWNER CURRENT OPERATIONS.
PRICE. . . . . .AS INSPECTED/ON LOCATION. . . . . . .$ ON REQUEST
Stock # 3055CDM
Specifications are correct to the best of our knowledge but are subject to correction upon your inspection. All sales are subject to our “Standard Terms and Conditions of Sales” with exception made only by Mauldin Machine Inc and all parties involved in the transaction. This equipment is used. No warrantees implied or written.
See Terms of Sale At: https://www.machinedealer.com/wordpress/2021/5260/
3024 Discovery Lane • Jacksonville, Arkansas 72076 • Phone: (501) 835-5494
PO Box 8549 • Jacksonville, Arkansas 72078
Website: www.mauldinmachine.com • E-mail: [email protected]
