| Swing | 20" | 508 mm |
| Centers | 80.31" | 2,039.9 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,550 RPM | 1,550 RPM |
| Swing Over Cross Slide | 13" | 330.2 mm |

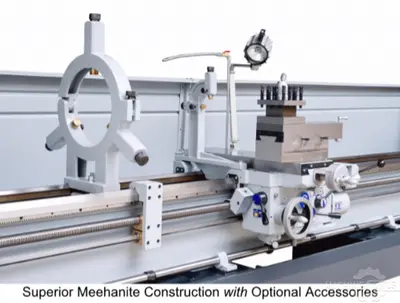

26” X 80” Lathe with 15 HP Spindle Motor, 12 - Spindle Speed Geared Ranges for High-Torque, D-11 Camlock Spindle, 4-⅛” Spindle Bore, Longitudinal Rapid Traverse Positioning, Efficient 2 - Speed Quill Advance and 33-¼” Swing in 6.5” Wide Gap.GENERAL SPECIFICATIONS Swing Over Bed: 26”Distance Between Centers: 80.3”Center Height: 3”Swing Over Cross Slide: 17.5/16”Swing Thru Gap: 33-¼”Length of Gap in Front of Faceplate, D1-11: 6-½”Bed Width: 15-¾”Spindle Motor Horsepower: 15HP 3PHSpindle Speeds: 12 from 5-1,200 RPMSpindle Bore: 4-⅛”Spindle Power: D1-11Cross Slide Travel: 14.96”Cross Slide Width: 7-3/32”Cross Slide Resolution Per Division: 0.001”Carriage Lead Screw Diameter: 1-½”Carriage Lead Screw Pitch: 4 TPICompound Top Slide Travel: 10”Compound Top Slide Width: 4-11/32”Cutting Tool Height Maximum: 1” X 1”Tailstock Quick Diameter: 2-15/16”Quill Stroke: 6-5/16”Quill Taper: MT-5INCLUDES: 15 HP Spindle Motor, 12 - Spindle Speed Geared Ranges for High-Torque, D-11 Camlock Spindle, 4-⅛” Spindle Bore, Longitudinal Rapid Traverse Positioning, Efficient 2 - Speed Quill Advance and 33-¼” Swing in 6.5” Wide Gap.
