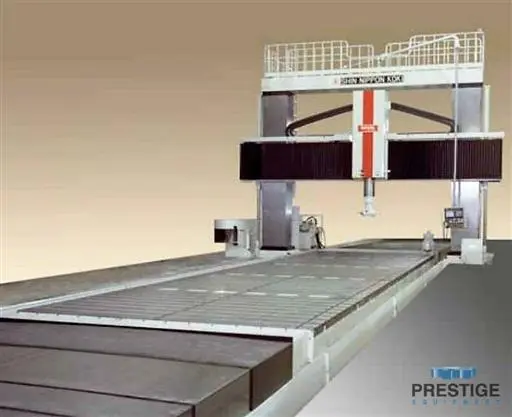

USED 2021 SNK RB-8VM
Specs
SPECIFICATIONS:
Table Dimensions: 393.70" x 157.48"
Distance Between Columns: 196.07"
Distance Spindle Nose - Table: 0 - 137.79"
Gantry Travel, X-Axis: 403.54"
Head Cross Travel, Y-Axis: 209.44"
Ram Travel, Z-Axis: 31.49"
Cross Rail Vertical Travel, W-Axis: 114.17"
Spindle Speeds: 30 - 4500 RPM
Spindle Taper: ISO #50
Ram Diameter: 12.99"
Rapid Traverse, X-Axis: 393.70 IPM
Rapid Traverse, Y-Axis: 787.40 IPM
Rapid Traverse, Z-Axis: 314.96 IPM
Rapid Traverse, W-Axis: 157.48 IPM
Cutting Feed Rate, X/Y/Z-Axes: .039 - 236.22 IPM
Cutting Feed Rate, W-Axis: .039 - 157.48 IPM
Spindle Motor: 40 HP / 49.6 HP
Equipped With:
Fanuc 31i CNC Control
Angle Head Milling Attachment
Spindle Extension Attachment
Features:
Fanuc 31i CNC Control
Angle Head Milling Attachment
Spindle Extension Attachment
