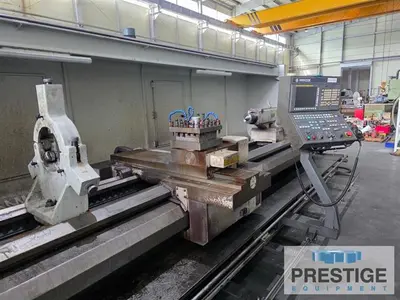

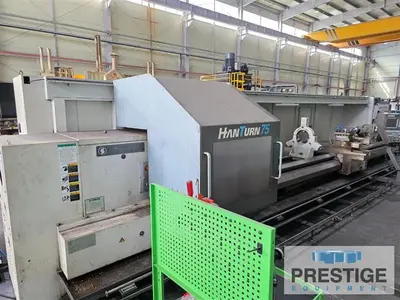

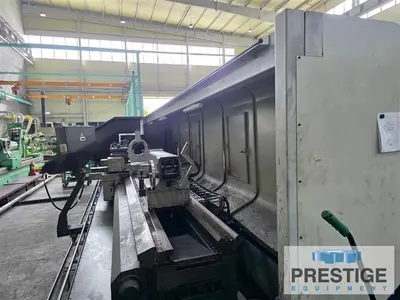

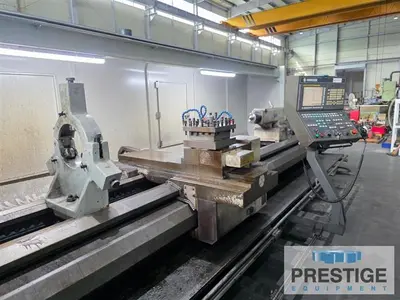

USED 2012 HANKOOK HANTURN 75 X 6M

CAPACITIES:
Swing Over Bed: 29.52"
Swing Over Carriage: 18.89"
Max. Turning Diameter: 29.52"
Distance Between Centers: 236.22"
Loading Capacity Between Centers: 8,800 Lbs.
Maximum Spindle Speed: 1-1,250 RPM
Spindle Nose: A2-11
Spindle Bore: 4.13"
Spindle Drive Motor: 20 HP/24 HP
X-Axis Travel: 16.73"
Z-Axis Travel: 251.18"
Tailstock Quill Diameter: 4.40"
Tailstock Spindle Taper: MT-6
Tailstock Quill Travel: 7.87"
Approximate Machine Weight: 28,600 Lbs.

Equipped With:

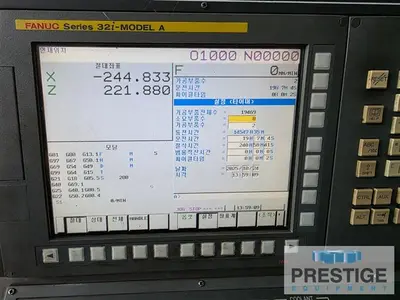

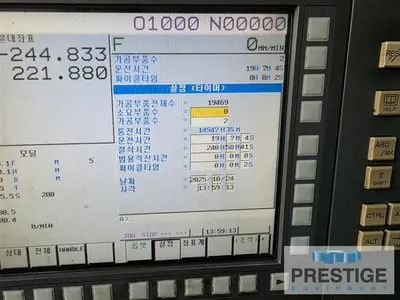

Fanuc 32i-TA CNC Control
Automatic Square Tool Post

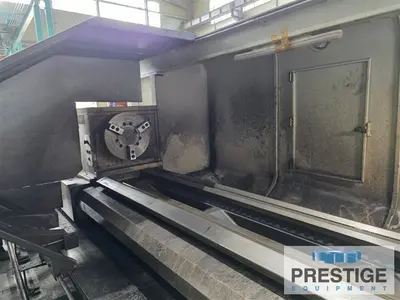

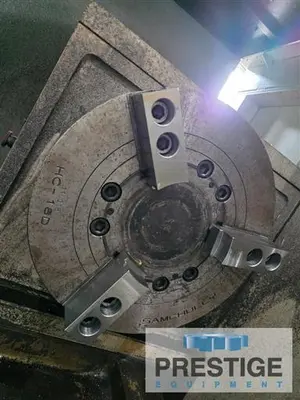

18" 3-Jaw Hydraulic Chuck

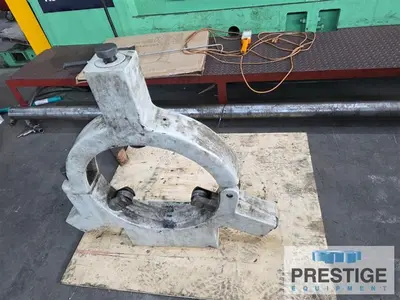

(2) Steady Rest (9.84" & 15.7")
Tailstock

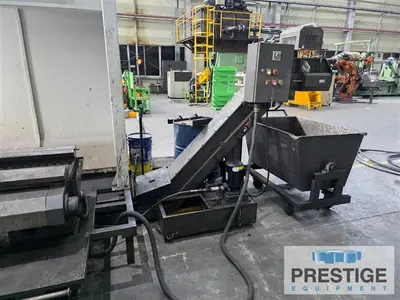

Chip Conveyor

Features:
Fanuc 32i-TA CNC Control
Automatic Square Tool Post
18" 3-Jaw Hydraulic Chuck
(2) Steady Rest (9.84" & 15.7")
Tailstock
Chip Conveyor
