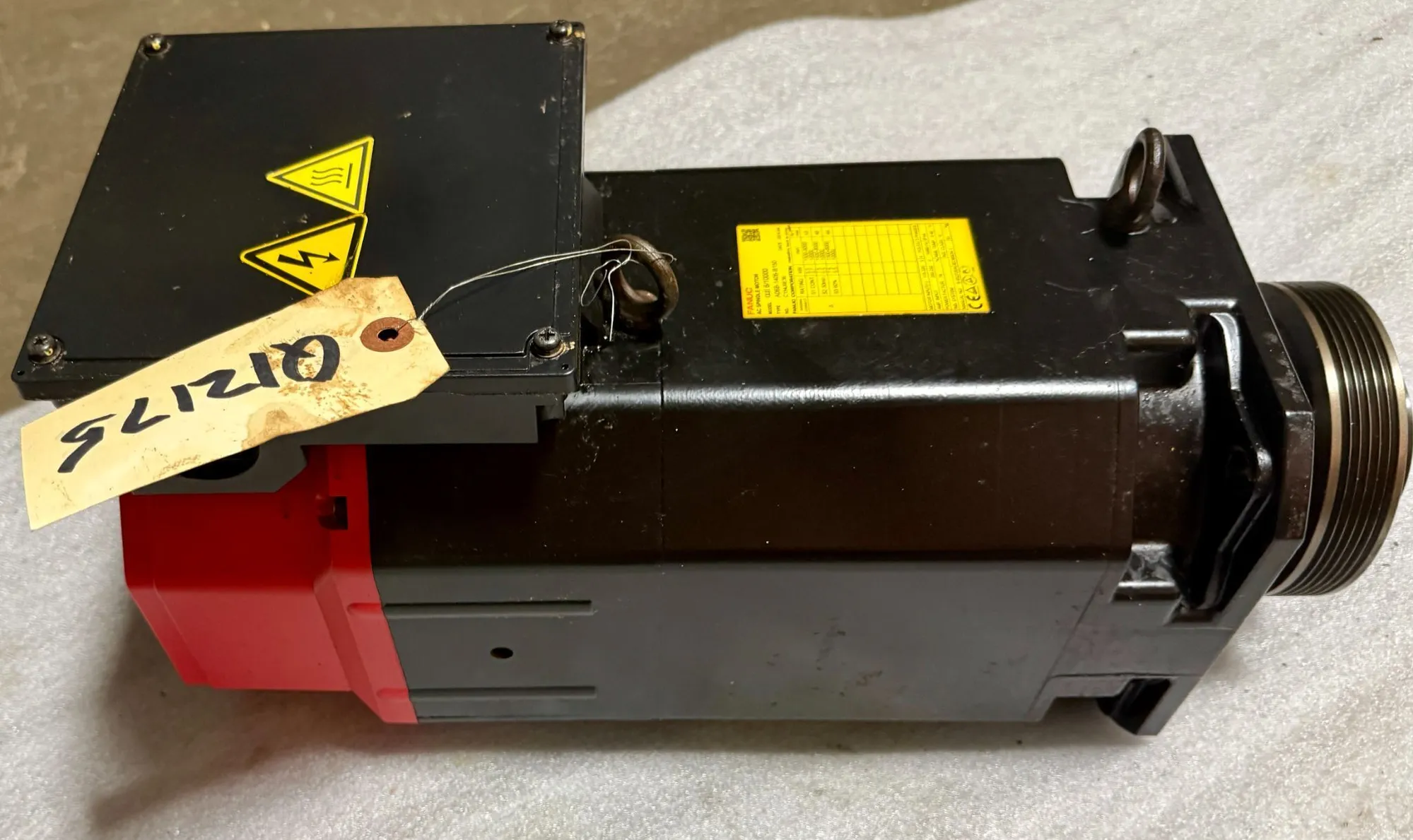

FANUC A06B-1406-B150 AC SPINDLE MOTOR, Model AiI 6/10000, New 2015.
| Current Type | AC | AC |
| Motor Power | 10.1 hp | 7.5 kW |
| # Poles | 4 | 4 |
| Base Speed | 8,000 RPM | 8,000 RPM |
| Power Factor | 79% | 79% |
| Insulation Class | H (Max 180° C / 356° F) | H (Max 180° C / 356° F) |
| Duty | Cont | Cont |
| Ambient Temperature | 104°F | 40°C |
| Enclosure Rating | IP 54 | IP 54 |
| Manual No | B-65272EN | B-65272EN |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 24" x 12" x 14" | 24" x 12" x 14" |
| Weight | 130 lbs | 130 lbs |
Input Voltage: 115-220 V
