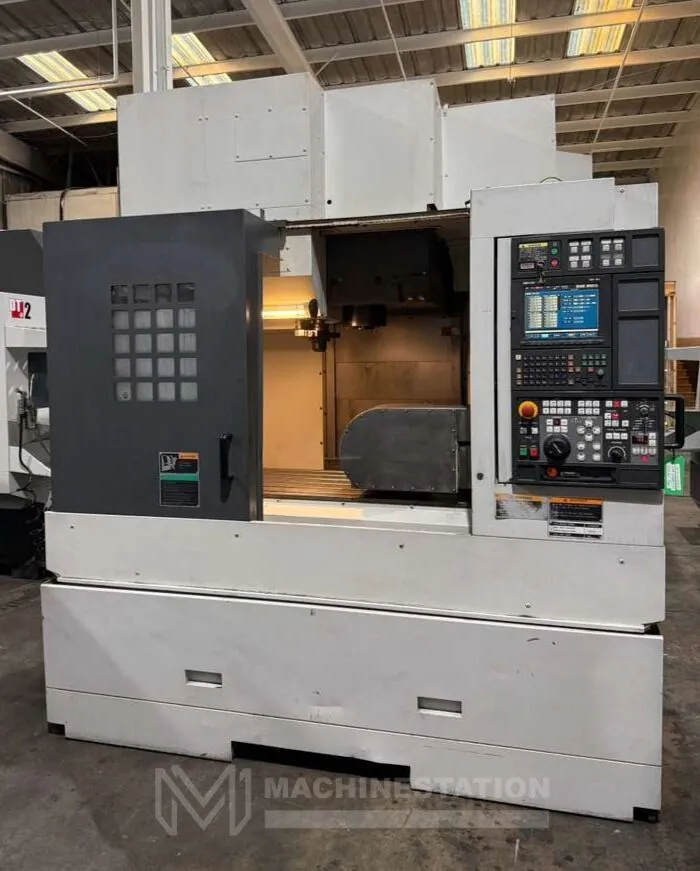

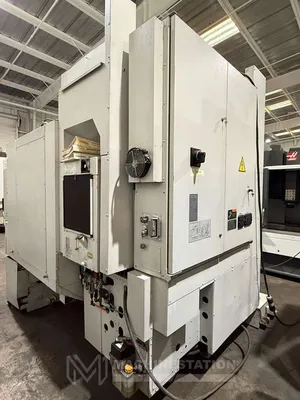

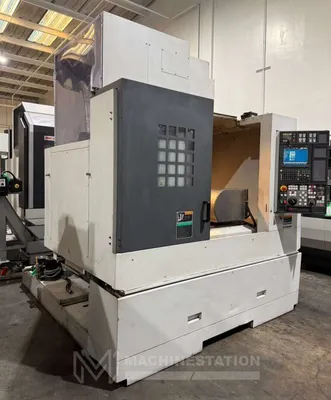

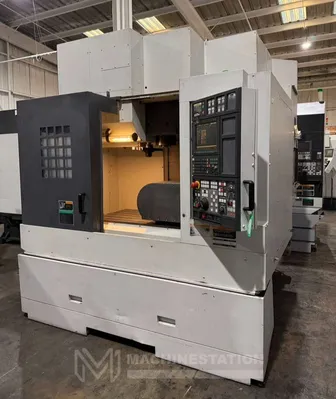

USED 2005 MORI SEIKI DURACENTER 5

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

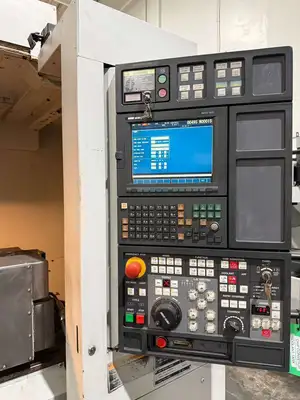

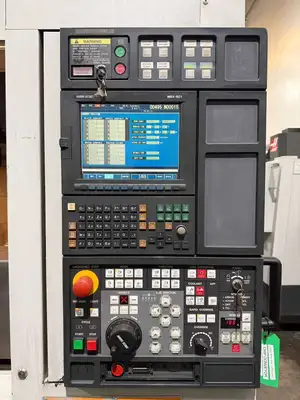

Mori Seiki MSX-501 Series CNC Control

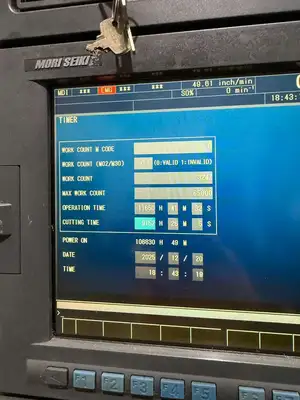

9,152 Hours Cutting Time
20 Station Side Mounted Tool Changer
PCMCIA Card Slot
Spindle Orientation
Rigid Tapping

Travels:
X-Axis: 31.5″
Y-Axis: 20.1″
Z-Axis: 20.1″
Rapid Traverse Rates X, Y Axis: 1417″ Per Minute
Rapid Traverse Rates Z Axis: 787″ Per Minute
Cutting Feed Rates: ″ Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″

Table:
Length: 43.3″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1760 lbs

Spindle:
Spindle: Taper Size: CAT-40

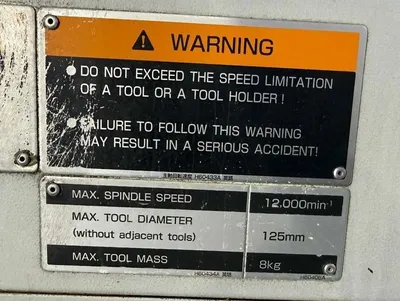

Speed Range: 12,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 20 Station
Tool Weight: 17.63 lbs
Max Tool Dia: 4.9″
Max Tool Length: 11.8″

General:
Air Required: 80 psi, 4 scfm

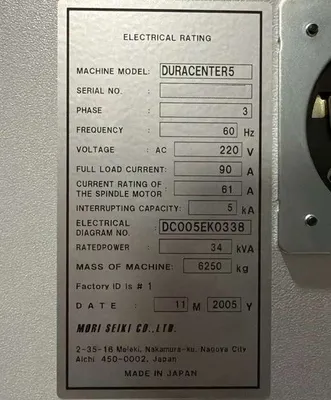

Power: 220v / 34 kva / 3-Phase
Overall Dimensions: 104″ x 90″ x 103″ High Approx.
Weight: 13,780 lbs Approx.

6″ Diameter 5th Axis Rotary Table
CAT-40 Taper 12,000 RPM Spindle
Through Spindle Coolant
Renishaw Probing System (Probe Needed)
Coolant tank

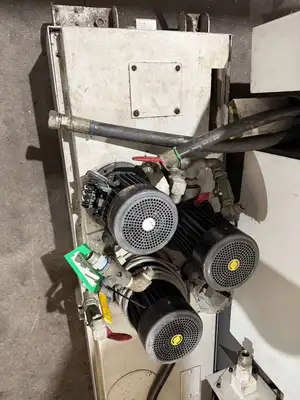

Chiller Unit
Books & Manuals
