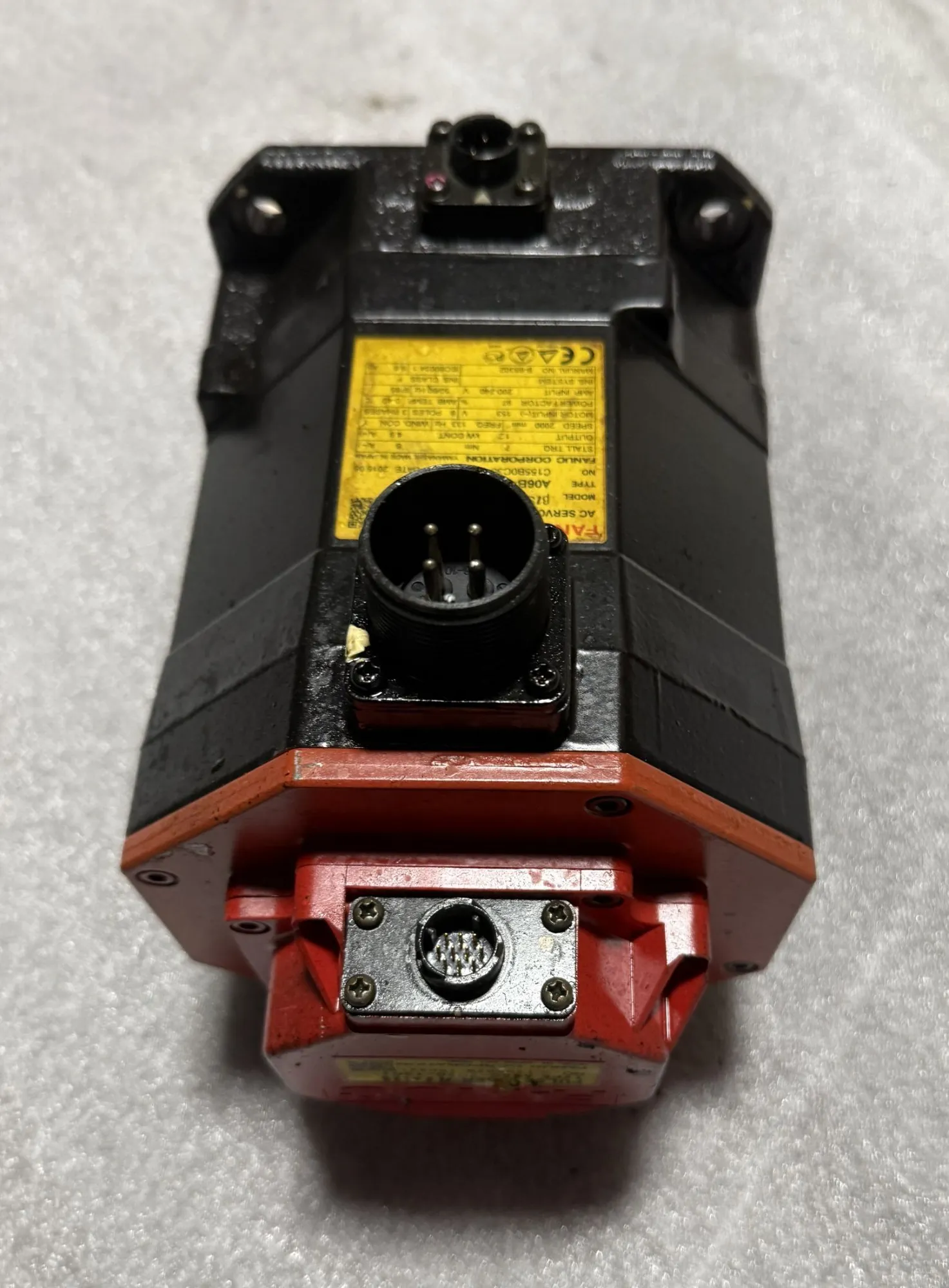

FANUC A06B-0075-B303 AC SERVO MOTOR, Model BiS 8/3000
| Current Type | AC | AC |
| Torque (Stall) | 7 Nm | 7.1 N |
| Amp (Stall) | 6 A | 6 A |
| Voltage | 153 V | 153 V |
| # Poles | 8 | 8 |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Ambient Temperature | 104°F | 40°C |
| Power Factor | 97% | 97% |
| Frequency | 133 Hz | 133 Hz |
| Motor Phase | 3 | 3 |
| Power | 1.6 hp | 1.2 kW |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 65 | IP 65 |
| Encoder | BiA128 A860-2020-T301 | BiA128 A860-2020-T301 |
| Manual No | B-65302 | B-65302 |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 12" x 8" x 10" | 12" x 8" x 10" |
| Weight | 26 lbs | 26 lbs |
