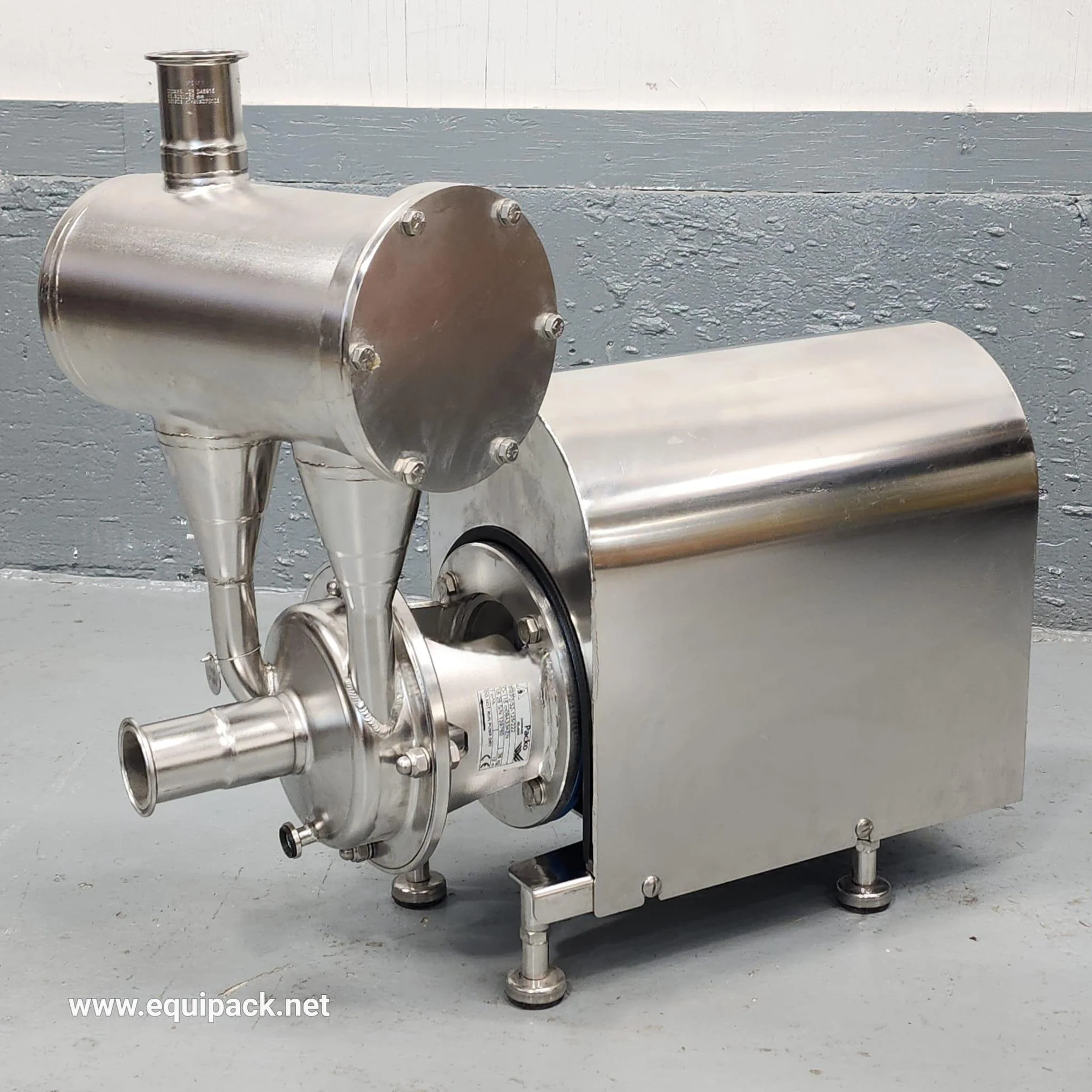

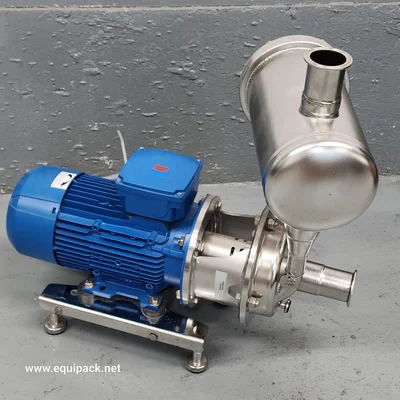

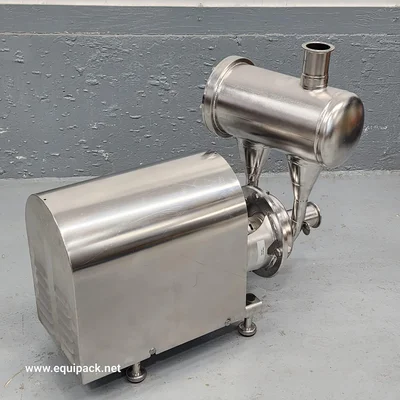

Pump Pharmaceutical, CIP Sanitary 316 S/S Brand New Centrifugal Pump # 3451

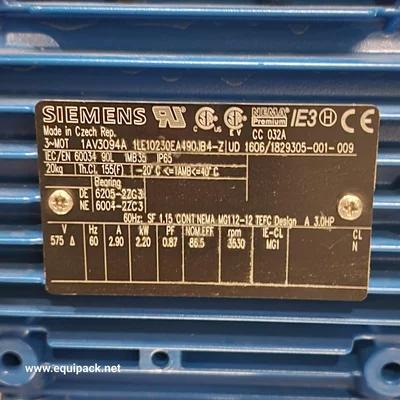

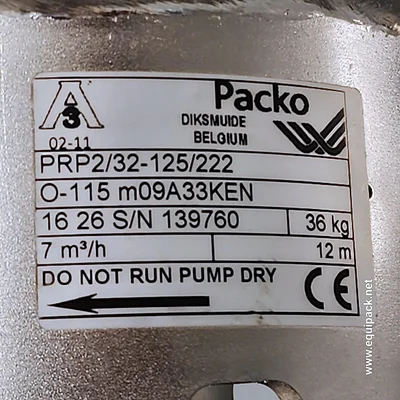

Pump Pharmaceutical, CIP Sanitary 316 S/S Centrifugal Series PRP2 Packo Pump 575 volts, 60hz, 2.90 amps, 3530 rpm, 3hp, 3ph.
Max. flow   80 m3/h
Differential head            75 m wc
Max. Inlet pressure        13 bar
Viscosity            10 cP
Max. temperature          140 °C

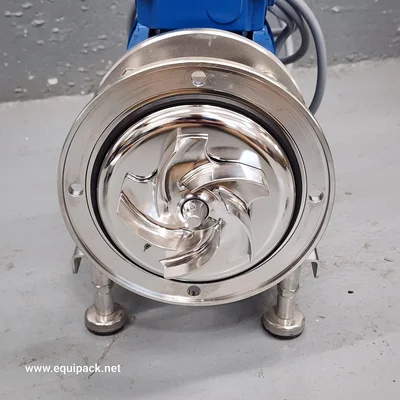

Impeller type    Open
Max. free passage          22 mm
Max. drive power           22 kW
Speed   3000 / 3600 rpm
Available frequency       50 / 60 Hz
Materials wetted parts  Stainless steel 316L for casing and backplate, 1.4435 for the impellers, duplex 1.4462 for metallic parts of the seal and impeller screw
Materials O-ring          EPDM, FKM, FEP-FKM, FFKM, Silicone
Mechanical seal configuration    Single, quench, double
Connections       Sterile connections
Surface finish    Pharmaceutical quality, roughness value < 0,4 µm for wetted parts, electropolished and fully certified.
Certificates        3A. 1935/2004 EC. FDA. USP. ATEX. EAC
