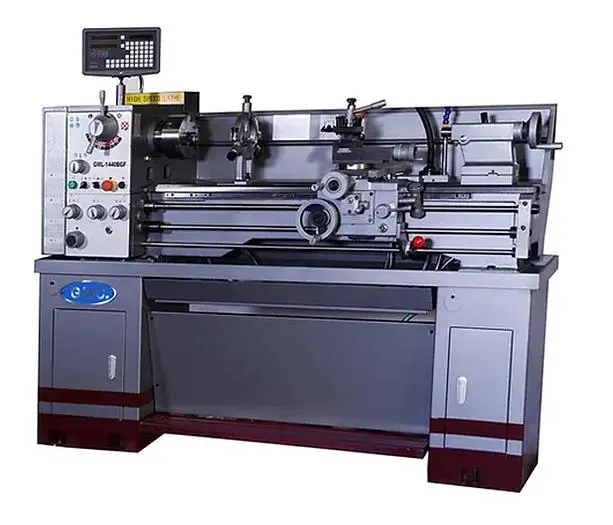

Product: Lathes
Max Swing Over Bed: 14"
Max Workpiece Length: 40"
Max Cutting Length: 34"
Max Swing Over Cross Slide: 8.25"
Distance Between Centers: 40"
Bed Width: 7.5"
Spindle Nose: D1-4 Camlock
Spindle Bore: 1.5"
Spindle Speed: 70-2,000 RPM
Range of Longitudinal Feeds: 0.00168” - 0.11750”/rev. IPR, 24 kinds
Range of Cross feeds: 0.00046” - 0.03231” /rev. IPR, 24 kinds
Main Motor: 3 HP Single Phase
Electrical: 220 VAC, 12 Amp
Coolant Pump: 1/16 HP, Single Phase, 220 V
Overall Dimensions (approx.): 70 x 35 x 59"H
Weight (approx): 1,730 lbs.
Equipped with:
SINO (DRO) Digital Readout - Installed
Taper Attachment - Installed
6” 3-Jaw Chuck with reversible jaws
8” 4-Jaw Chuck with reversible jaws
10” Face Plate
3.75” Large Steady Rest
2” Follow Rest
Foot Brake
Coolant System
Metal Stand with 2 Cabinets
Halogen work lamp
4-Way Tool Post
Full Length Splash Guard
2 – Dead Centers
1 – Reducing Sleeve
1 – Thread Chasing Dial
1 – Tool Box with maintenance tools
1 Year Warranty on Parts
