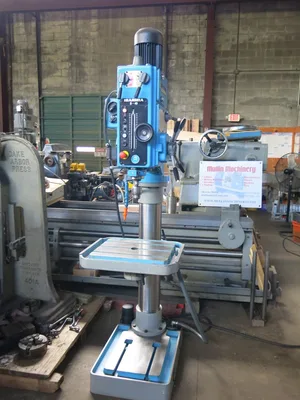

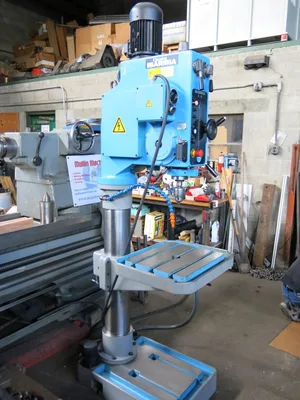

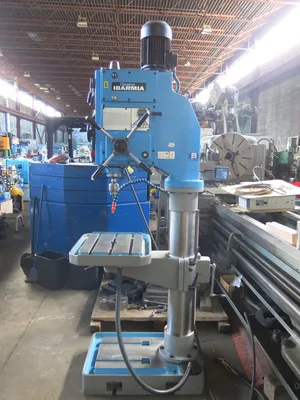

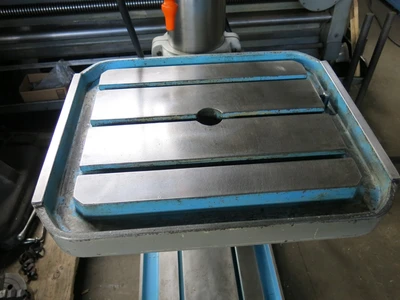

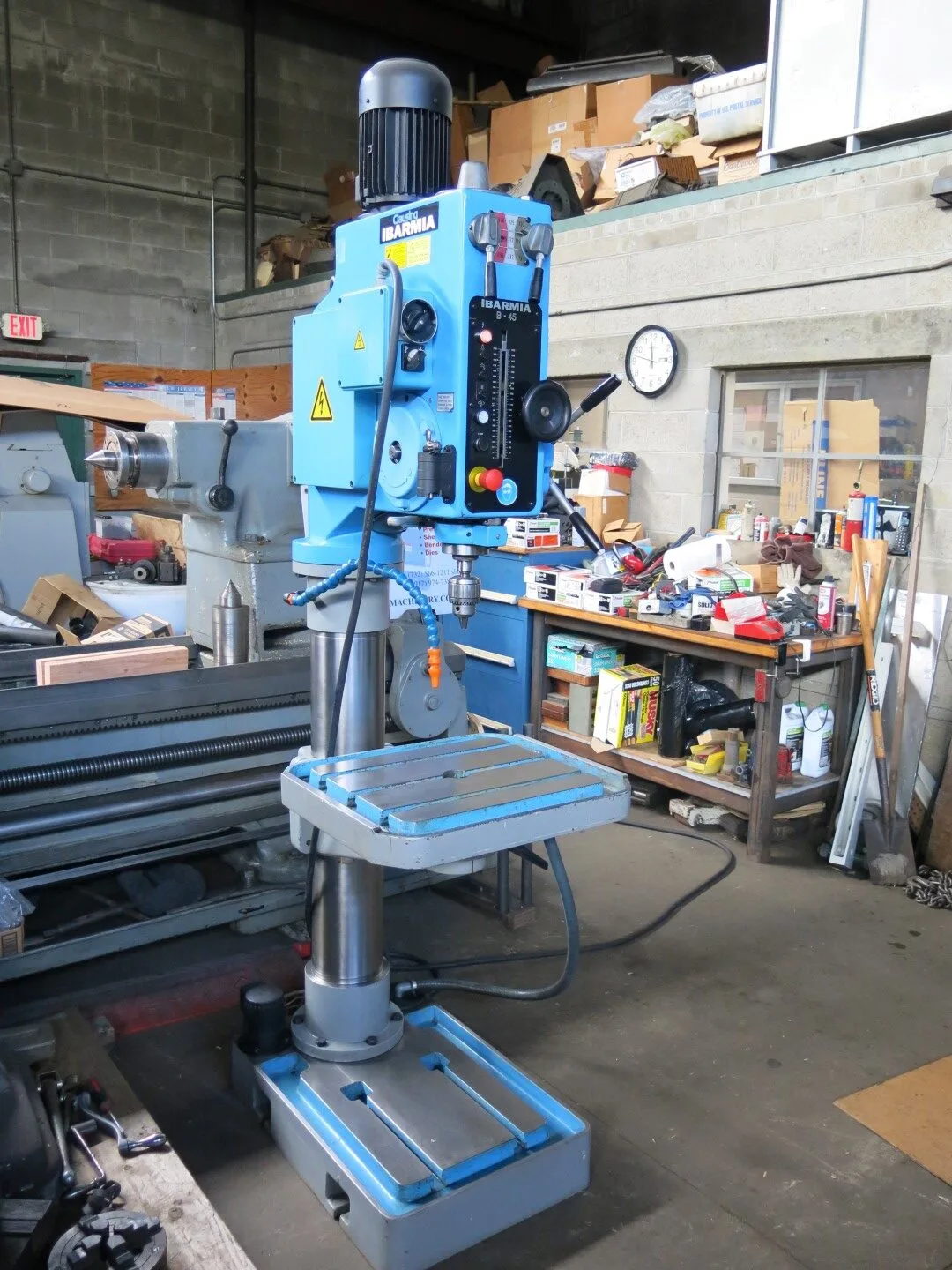

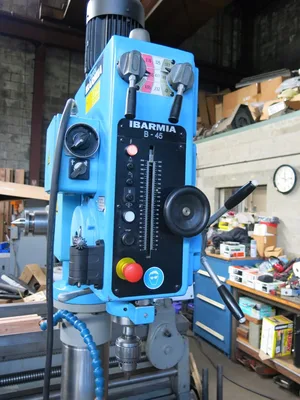

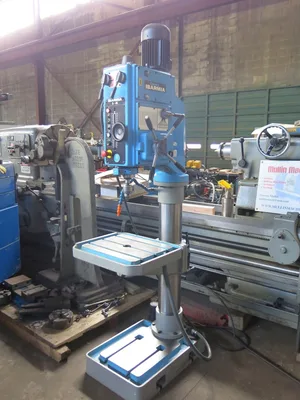

Clausing Ibarmia B-45 Geared Head Drill Press
Overview
Clausing Ibarmia B-45 Geared Head Drill Press
Capacities
Maximum drilling capacity in steel
1.77″ (45mm)
Maximum drilling capacity in cast iron
2.17″ (55mm)
Maximum tapping capacity in steel
1.3″ (33mm)
Maximum tapping capacity in cast iron
1.57″ (40mm)
Specifications
Spindle taper
4MT
Quill diameter
3.46″ (88mm)
Spindle travel (drilling depth)
7.87″ (200mm)
Main motor power
3 Hp (2.2Kw)
Coolant pump motor power
.1 Hp (.07Kw)
Number of speeds (see speed charts)
9
Number of automatic feeds
4
Auto feed range: in./rev. (mm/rev)
.0039/.0079/
.0118/.0157
(0.1-0.2-0.3-0.4)
Speeds- 73-103-149-232-325-472-695-976-1415

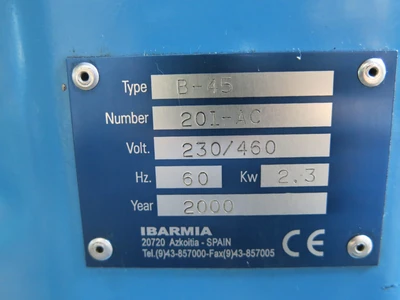

Wired- 230/460 3ph
Weight- 1430 lbs
***ALL ORIGINAL PAINT. SCHOOL MACHINES***
(2) IDENTICAL AND CONSECUTIVE SERIAL# MACHINES AVAILABLE- PRICE IS FOR (1)
