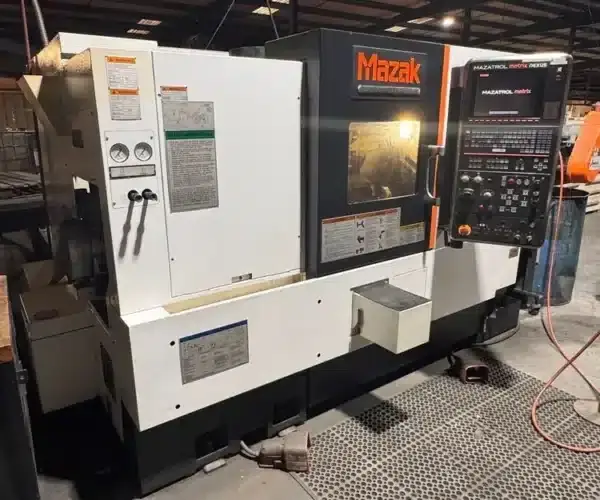

Mazak Nexus 250MSY-II – 2012

MAZAK QUICK TURN NEXUS 250-II MSY / QTN250MSY / QTN-250MSY

Swing: 26.4″

Turning Diameter:14.75″

Center Distance:21.28″

Bar Capacity3″

X Axis Travel9″

Z Axis Travel22.75″

Y Axis Travel4″

W Axis Travel23″

C Axis Index0.001°

Rapid Traverse (X/Z/W/Y): 1,181/1,181/1,181/826 ipm

Spindle Speed (RPM) 4,000 rpm

Main Motor 35 hp

Turret Capacity12 + 12

Live Toolingyes

Live Tooling Speed 4,500 rpm

Live Tooling Motor7.5 hp

Sub Spindleyes

Sub Spindle Chuck6″

Sub Spindle Speed6,000 RPM

Sub Spindle Motor (HP)7.5 hp

Y Axisyes

Dimensions 117″ x 73″ x 73″

Weight 12,000 pounds

Mazatrol Matrix Nexus CNC Control

Sub Spindle

Live Tooling

Y Axis

Conversational Programming

Chip Conveyor
