HYUNDAI WIA L400LC – 2012

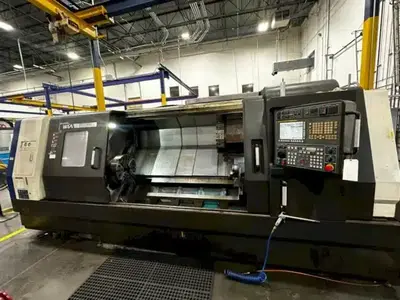

Hyundai Wia L400LC Used CNC Lathe
SPECIFICATIONS

# Axis 2

Swing 28.5″

Turning Diameter 24.8″

Center Distance 83.5″

Chuck Size 20″

Bar Capacity 6.5″

X-Axis Travel 12.6″

Z-Axis Travel 86.6″

Spindle Nose A2-15

Spindle Speed 2,000 rpm

Main Motor 50 hp

Turret Capacity 12

Tailstock (Yes/No) yes

Live Tooling no

Y Axis (Yes / No) no

Sub Spindle no

Machine Dimensions 215″ x 83″ x 85″

Machine Weight 24500 lb
EQUIPPED WITH

– Fanuc 32i-Model A CNC Control

– LNS Chip Conveyor

– Coolant Tank & Pump

– Gear Box

– Big Bore Option

– Tailstock

– Embedded Ethernet
