USED 2025 IGREK DT 4000

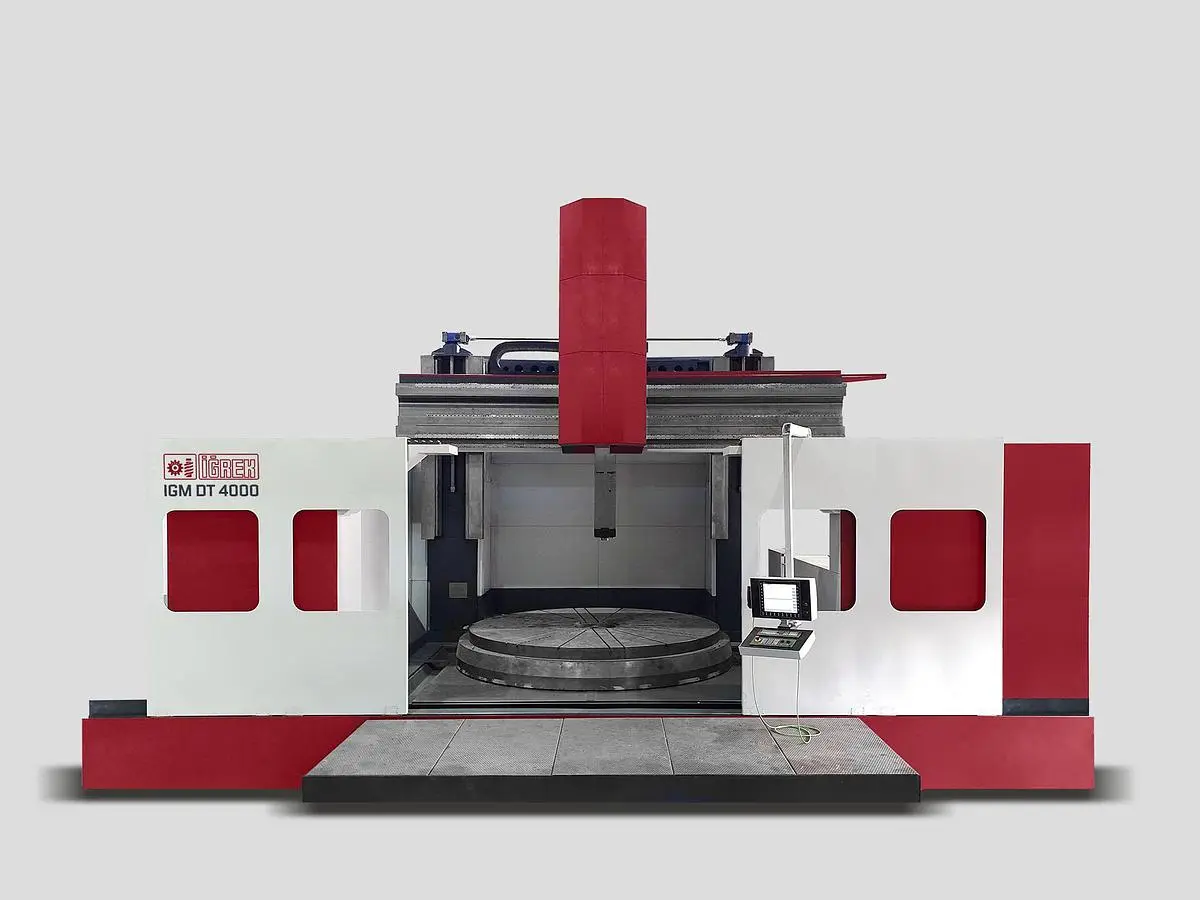

NEW MACHINEVertical Lathe with Ø4000 mm Hydrostatic Rotary Table & Moving TraverseWorld-class CNC vertical lathe, capable of precision machining for heavy parts with its direct driven, hydrostatic guided rotary table and moving traverse. Milling and hole drilling abilities thanks to live spindle and precision positioning C-Axis.Hydrostatic Guided Rotary Table with C-AxisMilling, Boring, Grinding with Live SpindleMoving TraverseWork Load Capacity: 40000 kgSiemens 840D SL CNC ControlAutomatic Tool ChangerLive Spindle with Table C-Axis Positioning

Manufacturer: Igrek
Model: DT 4000
Year: 2025
Condition: Used
Stock Number: 5654250
Table diameter: 4,000 mm
Max turning diameter: 5,000 mm
Max turning height from table: 2,000 mm
Ram slide stroke: 2,100 mm
Ram section: 350 x 350 mm
Vertical travel of moving traverse: 2,000 mm
Table drive system: Segmented Direct Drive Motors
Table torque: Nominal 8,200 Nm - Max 14,400 Nm
Table speed: 60 rpm
Table workload: 40,000 kg
Table guide system: Hydrostatic Bearing & Guides
Spindle speeds: 4,000 rpm
Spindle power: 37 kW
Spindle torque: 1200 Nm
Tooling taper: ISO 50
Machine size: 7,500 x 12,000 x 9,500 mm
Machine weight: 125,000 kg
