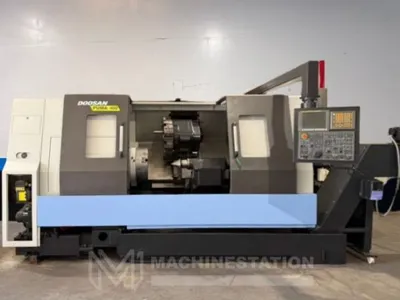

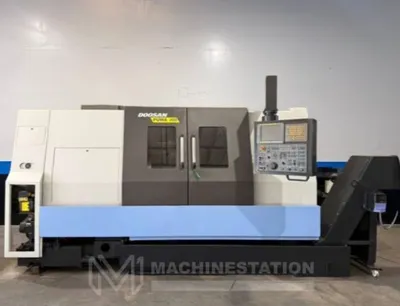

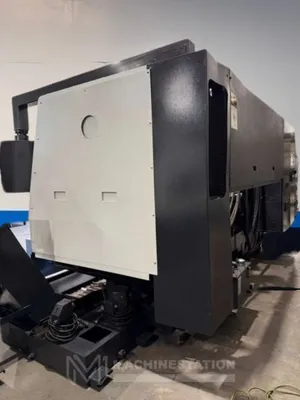

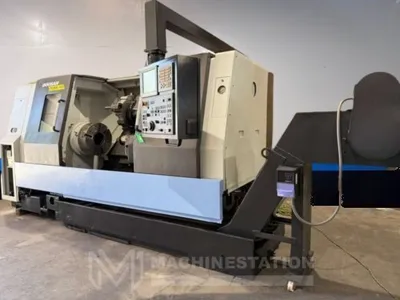

USED 2012 DOOSAN PUMA 400C

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Doosan-Fanuc i-series CNC Control
Heavy Duty Box Way Construction
PCMCIA Card Interface

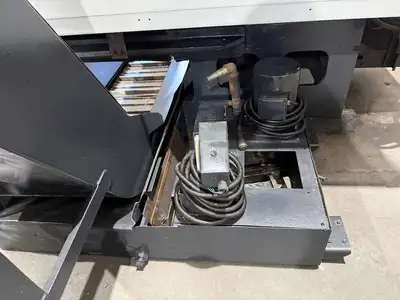

Coolant System

Specifications:
Max Turning Diameter: 21.65″
Max Turning Length: 40.31″
Swing Over Bed: 30.71″
Swing Over Saddle: 23.22″
Max Bar Capacity: 7.1″

Travel:
X Axis Travel: 14.25″
Z Axis Travel: 43.50″
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 787 IPM

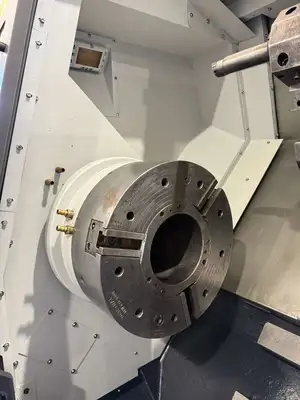

Spindle:
Spindle Nose: A1-15
Spindle Bore: 7.5″
Spindle Speed: 1500 RPM
Spindle Motor: 50 HP

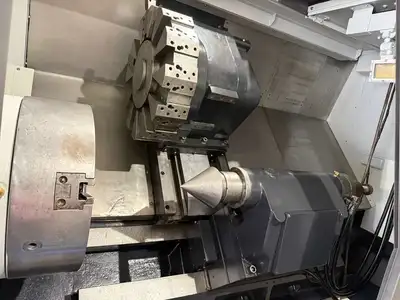

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
OD Tool Size: 1.25″ x 1.25″
Boring Bar Diameter: 2.36″
Tool Holders Type: BMT

Tailstock:
Tailstock Taper: MT-6
Tailstock Quill Dia.: 4.72″
Tailstock Quill Travel: 4.72″

General:

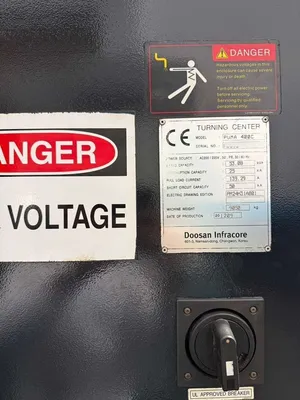

Power: 200v – 220v / 3-Phase / 53.1 kva / 50/60 Hz
Overall Dimensions: 166″ x 86″ x 91″ High Approx.
Weight: 19,950 lbs Approx.
