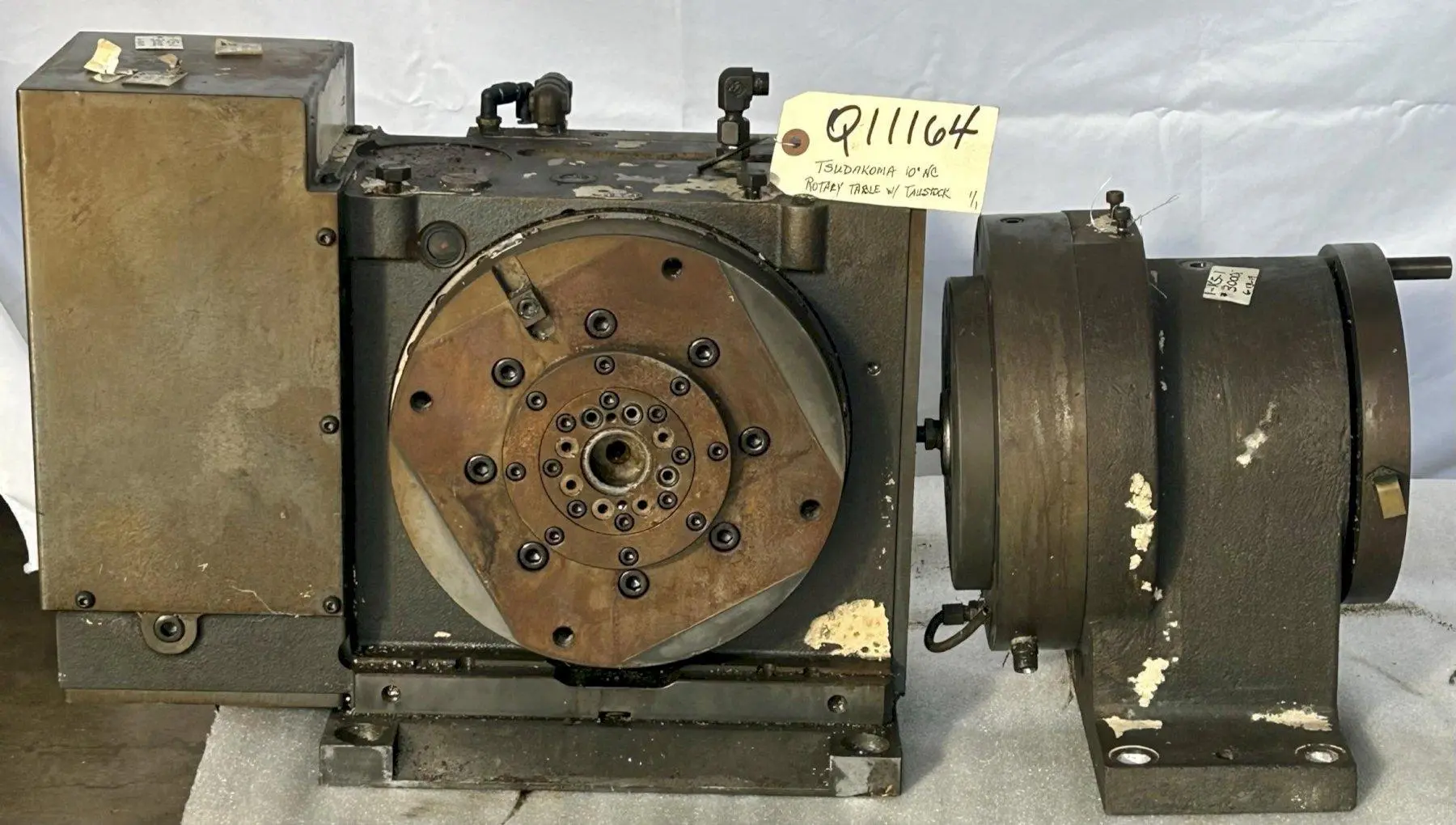

10" TSUDAKOMA CNC VERTICAL ROTARY TABLE with TAILSTOCK, Model RB-250L, 10" Face Plate, New 2002.
| Hand Type | Left | Left |
| Table Diameter | 9.84" | 249.94 mm |
| Max Load Capacity, Vertical | 330 lb | 149.7 kg |
| Center Bore | 2.8" | 71.12 mm |
| Table T-Slot Width | 12H7 | 0 mm |
| Max Table Rotation Speed | 22.2 RPM | 22.2 RPM |
| Repeatability | ± 0.001° | 0° |
| Positioning Accuracy | ± 0.004° | 0° |
| Drive Mechanism | Hydraulic | Hydraulic |
| Dimensions | 32" x 20" x 15" | 32" x 20" x 15" |
| Weight | 465 lbs | 465 lbs |
