Introducing the new 2025 Productive Robotics Blaze MIG Cobot. This advanced 7-axis collaborative robot offers a reach of 61", impressive repeatability, and speeds up to 2+ m/s. ISO 10218-1 compliant, it learns by demonstration without programming.
| # Axis | 7 | 7 |
| Horizontal Reach | 61" | 1,549.4 mm |
| Reach | 61" | 61" |
| Repeatability | +/- 0.1mm ~ .004" | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s | 0-2+ m/s |
| IP Class | 61 | 61 |
| Joint Ranges | +/- 360 Degrees (all) | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz | 100 - 240 VAC 50-60hz |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |

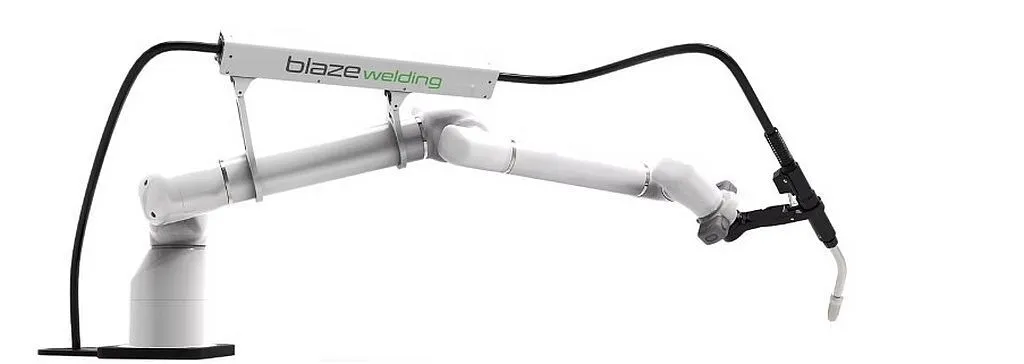

Blaze MIG Cobot
Zero programming welding cobot. Works with your current welder and table.
Designed and built in the USA with direct factory support
7-axis positioning allows more welds without refixturing
Teach a job faster than welding once by hand
Software: Drag and drop, unlimited weld capability
Reach: 61" including torch
Compatible with Miller, Lincoln, and most others.
Includes:
• 1 Blaze Cobot
• 1 Torch
• 1 Blaze Welding Software
• 1 No Programming Needed Teach Tablet
• IP61 Sealed Electronics
Note:
No power supply included
Welding trigger control only
