NEW 2025 PRODUCTIVE ROBOTICS Blaze Max MIG

Ohio, United States
1,923Listings|28Followers
Overview
Robots

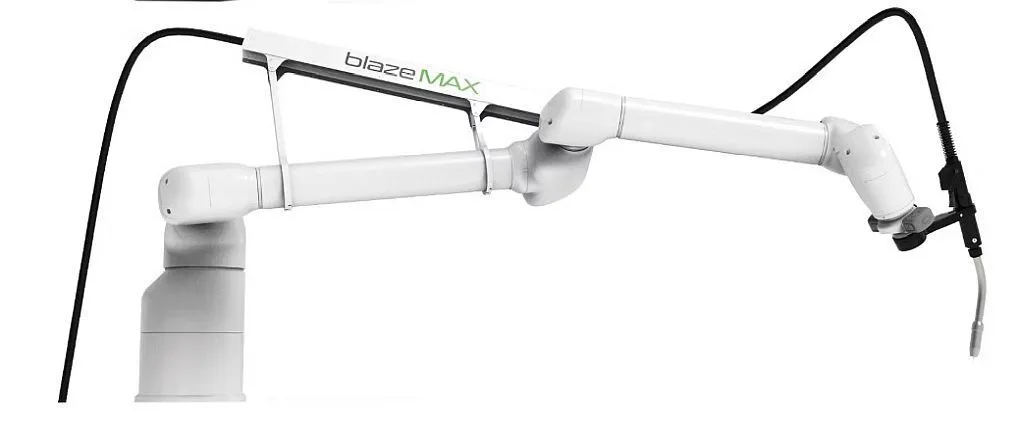

Introducing the new 2025 Productive Robotics Blaze Max MIG Cobot w/ Miller Auto Continuum 350. This advanced 7-axis collaborative robot offers a reach of 85", impressive repeatability, and speeds up to 2+ m/s. ISO 10218-1 compliant, it learns by demonstration without programming. Includes welder and wire feeder.

Specs
# Axis
7
7
Horizontal Reach
85"
2,159 mm
Reach
85"
85"
Repeatability
+/- 0.1mm ~ .004"
+/- 0.1mm ~ .004"
Speed
0-2+ m/s
0-2+ m/s
IP Class
61
61
Joint Ranges
+/- 360 Degrees (all)
+/- 360 Degrees (all)
Programming
No Programming Learns by Demonstration
No Programming Learns by Demonstration
Safety
ISO 10218-1 Compliant ; Power and force limited
ISO 10218-1 Compliant ; Power and force limited
Robot Mounting Flange Diameter
220 mm: OB7
220 mm: OB7
Gripper Mounting Flange:
ISO 9409-1-50-4-M6
ISO 9409-1-50-4-M6
Working Temperature:
0-37 Celsius 32-100 Fahrenheit
0-37 Celsius 32-100 Fahrenheit
Power Source
100 - 240 VAC 50-60hz
100 - 240 VAC 50-60hz
Uninterruptible Power:
10 minutes (robot stopped) for moving robot to new location
10 minutes (robot stopped) for moving robot to new location
Power Consumption:
OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Linear Speed:
2m/s max (Dependent on position)
2m/s max (Dependent on position)
Welder
w/ Miller Auto Continuum 350
w/ Miller Auto Continuum 350

Blaze Max MIG w/ Miller Auto Continuum 350
Zero programming welding cobot. Works with your current welder and table.
​Designed and built in the USA with direct factory support

7-axis positioning allows more welds without refixturing
Teach a job faster than welding once by hand
Software: Drag and drop, unlimited weld capability
Reach: 61" or 85" including torch
Compatible with Miller, Lincoln, and most others.

Includes:
1 Blaze Max Cobot
1 Miller Auto Continuum 350
1 Miller Wire Feeder
1 Blaze Welding Software
1 IP 61 Sealed Electronic Computer
1 No Programming Needed Teach Tablet
