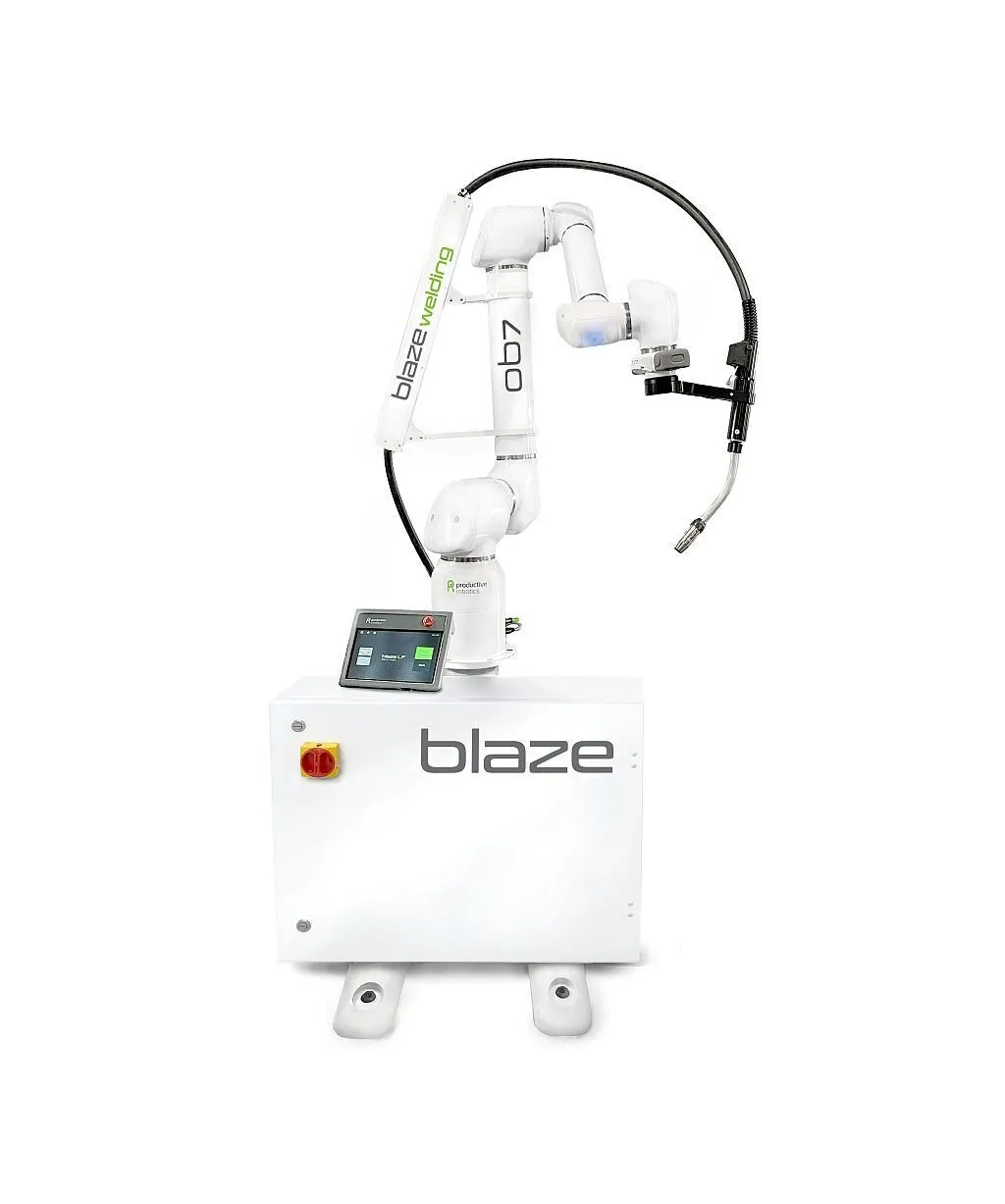

NEW 2025 PRODUCTIVE ROBOTICS Blaze MIG

Ohio, United States
1,925Listings|28Followers
Overview
Robots

Introducing the 2025 Productive Robotics Blaze MIG Cobot, a new 7-axis collaborative robot. With zero programming needed, it uses intuitive demonstration learning, making it easy to integrate into your welding setup. Made in the USA.
This Robot can be easily moved between workstations and includes Blaze robot, Sealed electronics, No programming teach tablet and includes Miller Auto DeltaWeld 350.

Specs
# Axis
7
7
Horizontal Reach
61"
1,549.4 mm
Reach
61"
61"
Repeatability
+/- 0.1mm ~ .004"
+/- 0.1mm ~ .004"
Speed
0-2+ m/s
0-2+ m/s
IP Class
61
61
Joint Ranges
+/- 360 Degrees (all)
+/- 360 Degrees (all)
Programming
No Programming Learns by Demonstration
No Programming Learns by Demonstration
Safety
ISO 10218-1 Compliant ; Power and force limited
ISO 10218-1 Compliant ; Power and force limited
Robot Mounting Flange Diameter
220 mm: OB7
220 mm: OB7
Working Temperature:
0-37 Celsius 32-100 Fahrenheit
0-37 Celsius 32-100 Fahrenheit
Power Source
100 - 240 VAC 50-60hz
100 - 240 VAC 50-60hz
Uninterruptible Power:
10 minutes (robot stopped) for moving robot to new location
10 minutes (robot stopped) for moving robot to new location
Power Consumption:
OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload
Linear Speed:
2m/s max (Dependent on position)
2m/s max (Dependent on position)
Welder
Miller Auto DeltaWeld 350
Miller Auto DeltaWeld 350
Dimensions
Miller Auto DeltaWeld 350
Miller Auto DeltaWeld 350

Blaze MIG Cobot w/ Miller Auto DeltaWeld 350
Zero programming welding cobot. Works with your current welder and table.
​Designed and built in the USA with direct factory support

7-axis positioning allows more welds without refixturing
Teach a job faster than welding once by hand
Software: Drag and drop, unlimited weld capability
Reach: 61" or 85" including torch
Compatible with Miller, Lincoln, and most others.

Includes:
1 Blaze Robot
1 Sealed Electronics
1 Blaze Welding Software
1 Zero-Program Teach Tablet
1 Miller Auto DeltaWeld 350
