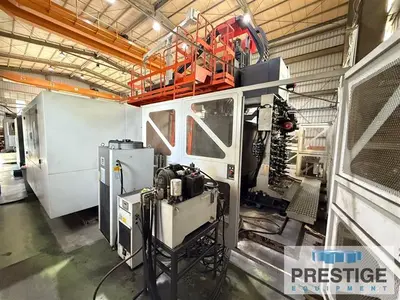

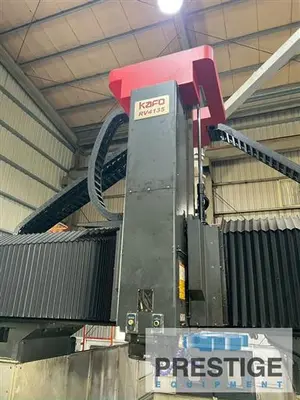

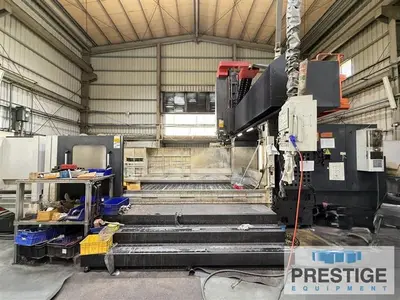

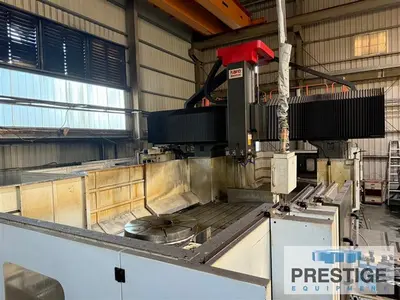

USED 2019 KAFO RV-4135 5-FACE

CAPACITY:
Table Size: 157.48" x 82.67"
Table Capacity: 37,400 Lbs.
Distance Between Columns: 106.29"
X-Axis Travel (Table Longitudinal): 161.41"
Y-Axis Travel (Head): 137.79"
Z-Axis Travel (Spindle): 43.30"
Distance From Spindle Nose to Table: 7.87"-51.18"
Spindle Speeds: 10,000 RPM
Spindle Taper: BT-50
Spindle Drive Motor: 60 HP/49 HP
Approximate Dimensions: 425" x 307" x 226"
Machine Weight: 104,500 Lbs.

Equipped With:

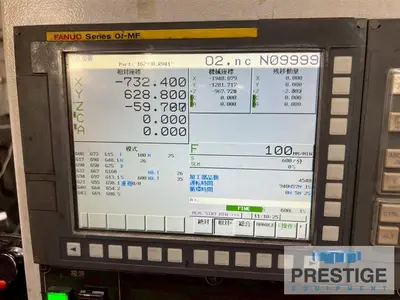

Fanuc Oi-MF CNC Control with 10.4" LCD

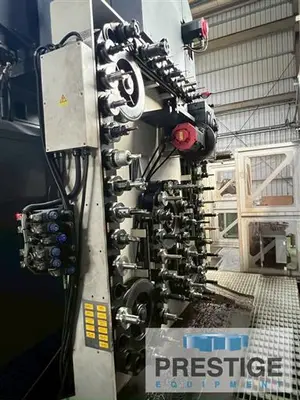

60-Station Automatic Tool Changer

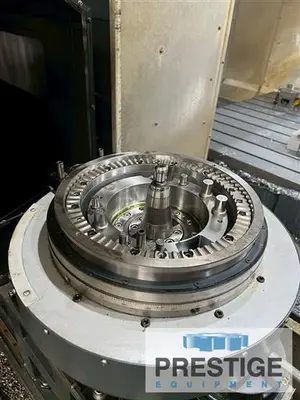

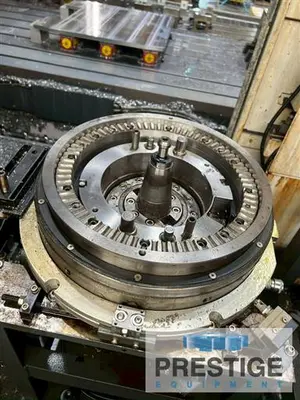

Auto Head Storage with 90 Degree Head
Universal Head (3,500 RPM w/ 5 Deg. Indexing)

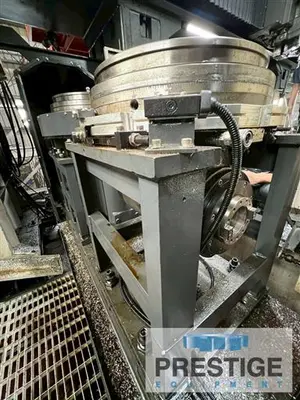

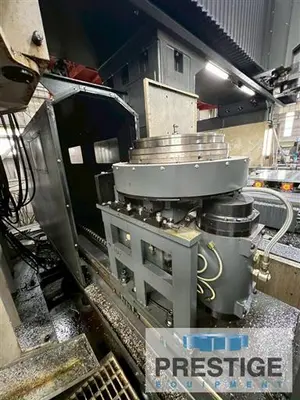

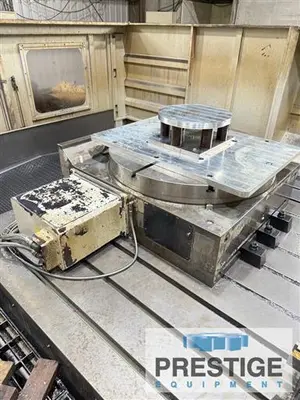

4th Axis Rotary Table (NCT-B-1000R)
X/Y/Z Linear Scales
Air Thru Spindle
Chip Conveyor

NOTE:
Inspect In Plant Under Power

Features:
Fanuc Oi-MF CNC Control with 10.4" LCD
60-Station Automatic Tool Changer
Auto Head Storage with 90 Degree Head
Universal Head (3,500 RPM w/ 5 Deg. Indexing)
4th Axis Rotary Table (NCT-B-1000R)
X/Y/Z Linear Scales
Air Thru Spindle
Chip Conveyor
