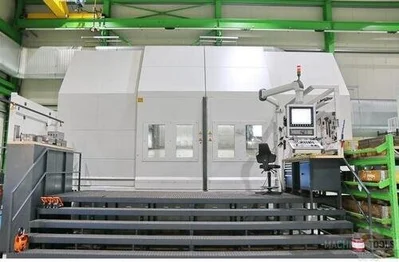

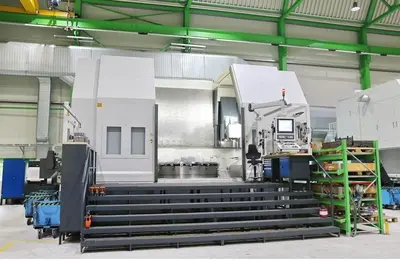

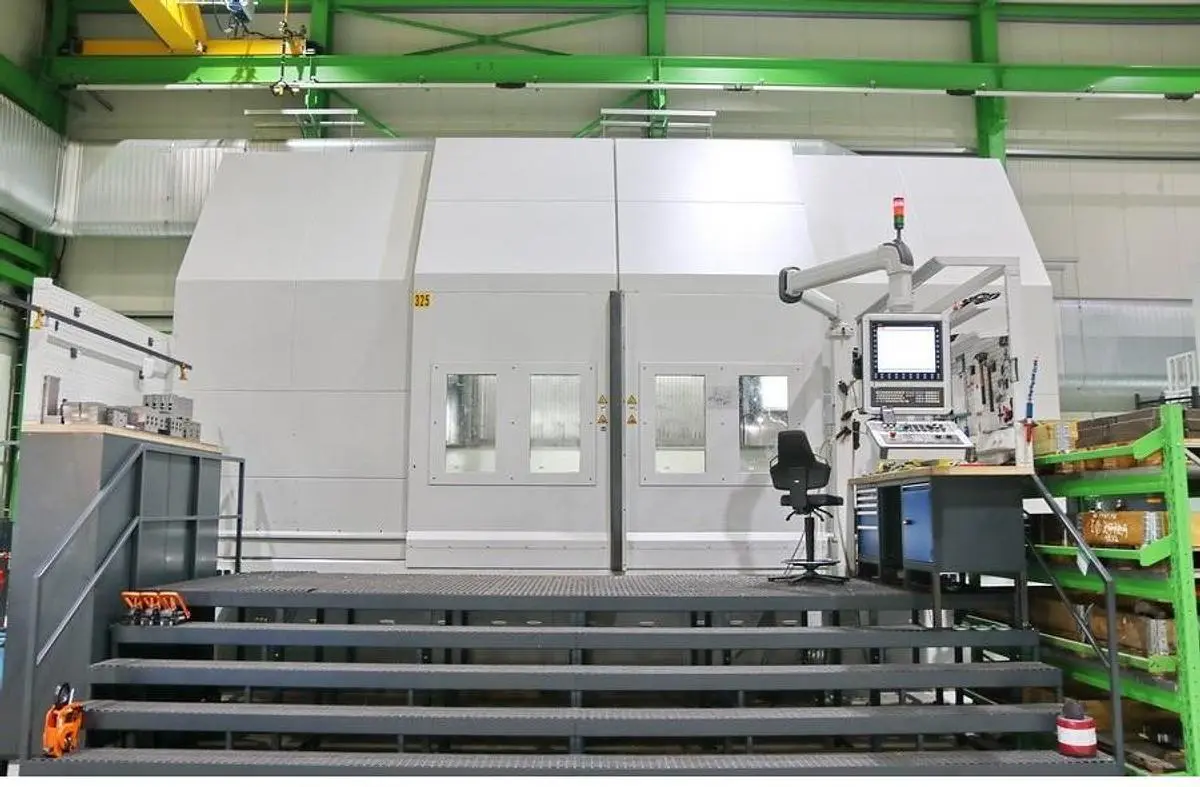

USED 2021 PITTLER PV 2500
Overview

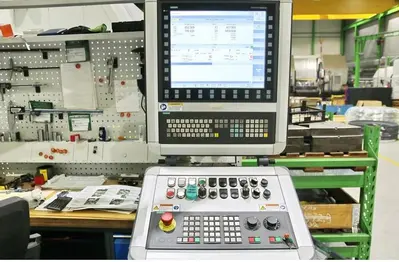

Siemens 840D SL CNC Control
2 Tool Mounts:
Tool Mount: Right
tool taper Capto C8
swivellable B: 0 - 270 °
Spindle speed - driven tool pos. max. 6.000 rpm
max. Torque 120 Nm
Tool Mount: Links / Left
tool taper Capto C8
Chip conveyor 2x

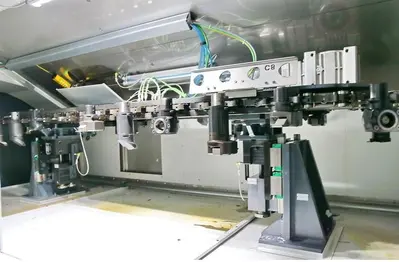

Tool magazine: Right
number of tool positions 41 pos.
max. tool weight 20 kg
max. tool length 400 mm
workpiece diameter at full load 150 mm
tool taper Capto C8
Tool magazine: Left
number of tool positions 25 pos.
workpiece diameter at full load 150 mm
max. tool weight 20 kg
max. tool length 400 mm
tool taper Capto C8
Coolant system 6 bar
High pressure coolant 70 bar
Through spindle coolant
Signal-Light
Paper band filter Knoll
Electronic hand wheel
Hydraulic system
Automatic Front door
Specs
Manufacturer: Pittler
Model: PV 2500
Year: 2021
Condition: Used
Stock Number: 5654248

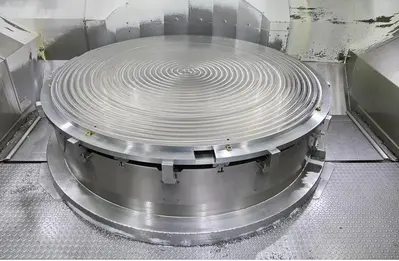

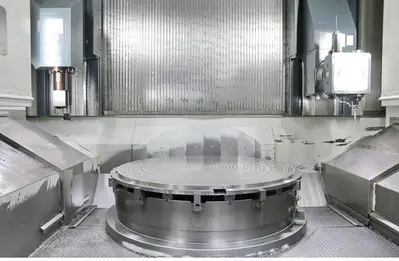

Turning diameter: 2,800 mm
Diameter spindle flange: 1,100 mm
Swing diameter: 3,000 mm
Table turn speed: 230 rpm
Table power: 206 kW
Max torque table: 53,000 Nm
Tool taper: Capto C8
B axis: 0 - 270°
Spindle speeds: 6,000 rpm
Max torque spindle: 120 Nm
X axis travel: 2,700 mm
x axis 2: 2,700 mm
Z axis travel: 2x 1,000 mm
Rapid traverse X: 40 m/min
Rapid traverse Z: 24 m/min
Total power requirement: 200 kVA
Machine weight: 30 Ton
Machine dimensions: 10.4 x 6.3 x 5.7 m
