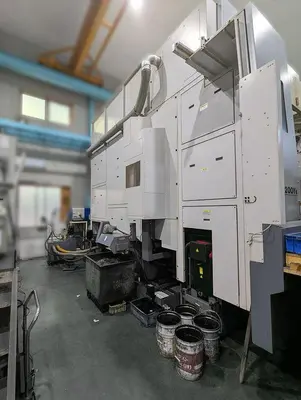

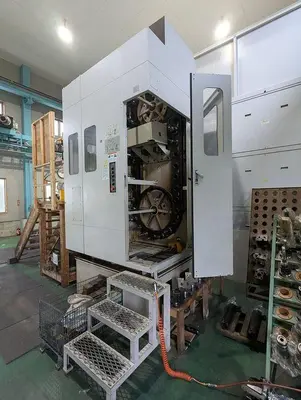

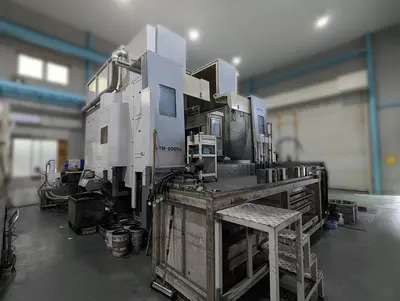

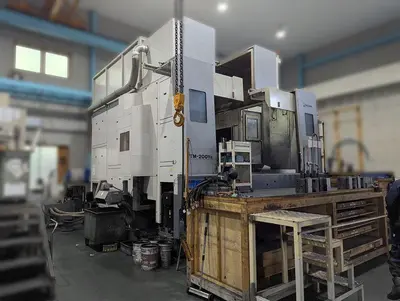

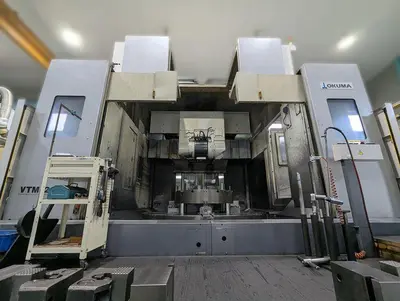

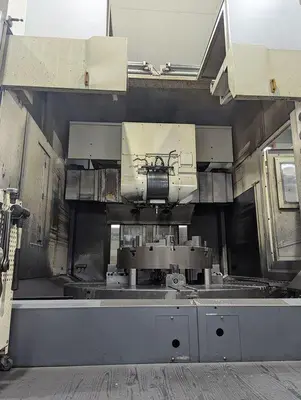

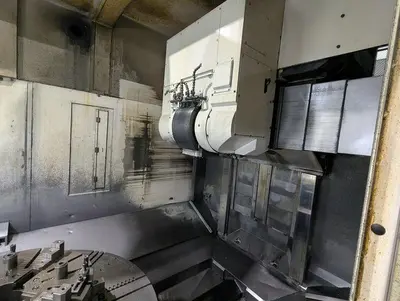

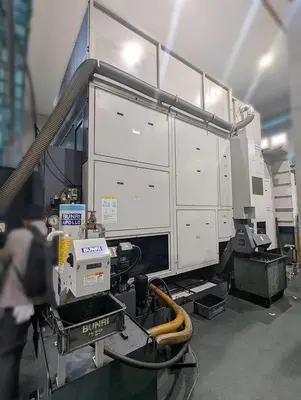

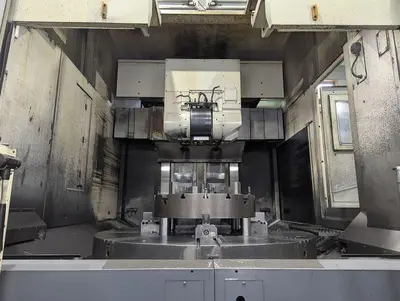

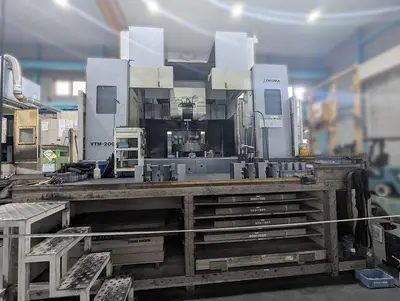

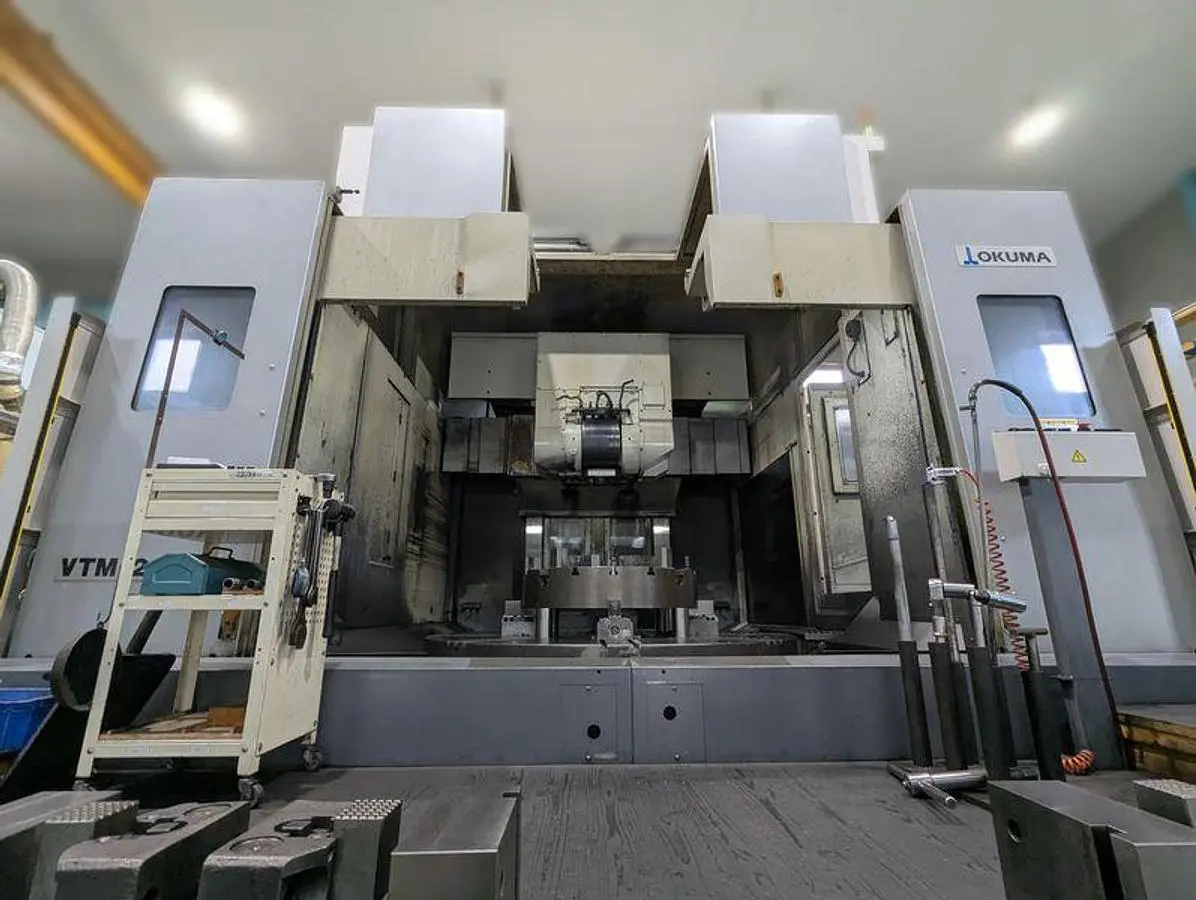

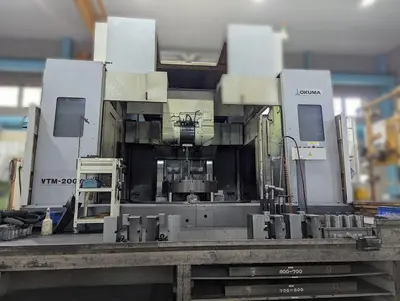

USED 2010 OKUMA VTM-200YB
Overview

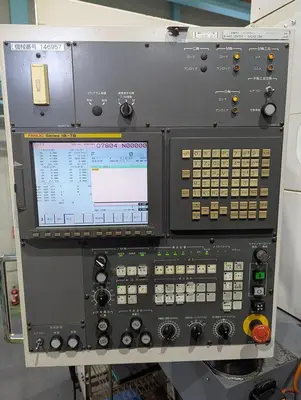

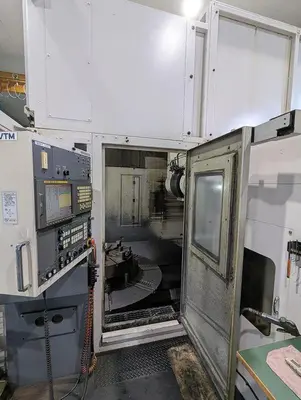

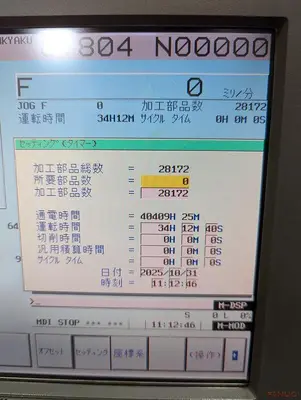

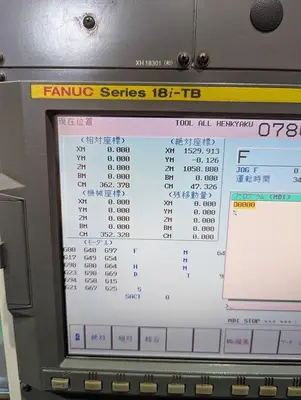

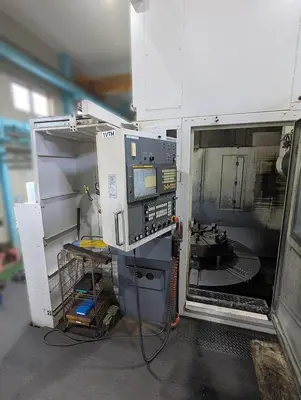

Fanuc 18iTB CNC Control

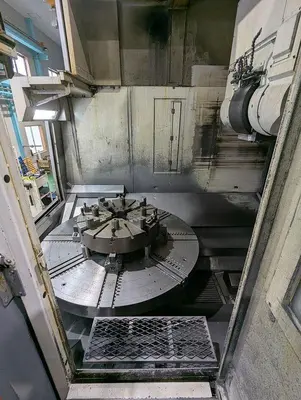

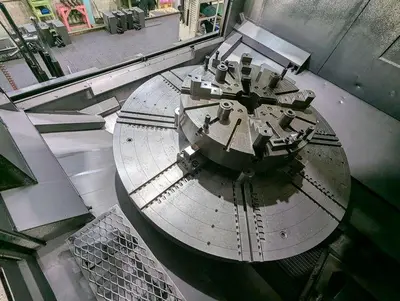

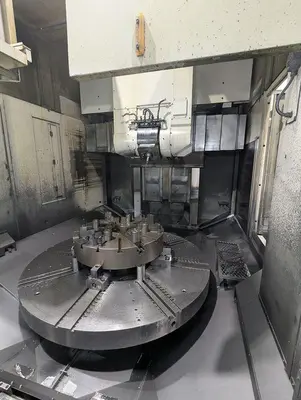

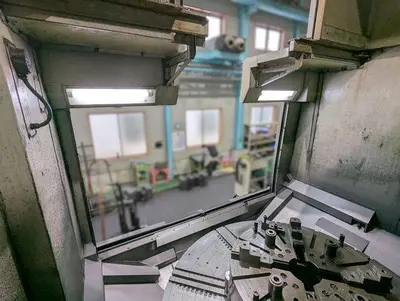

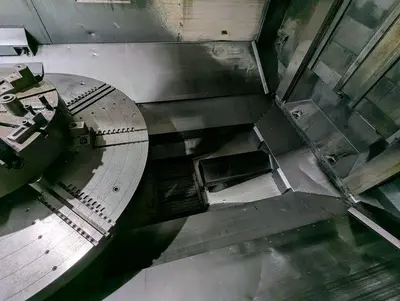

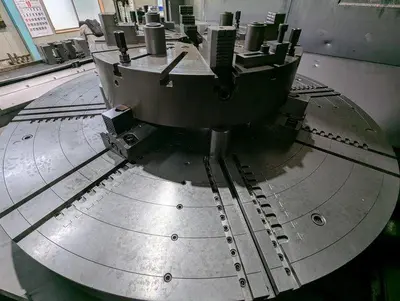

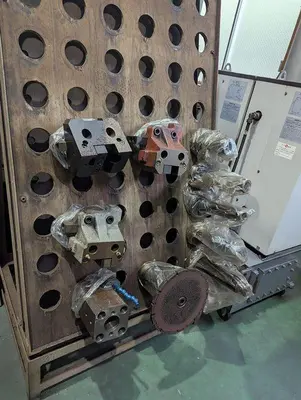

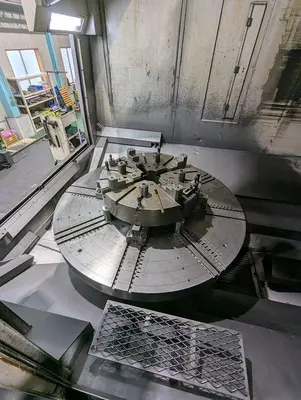

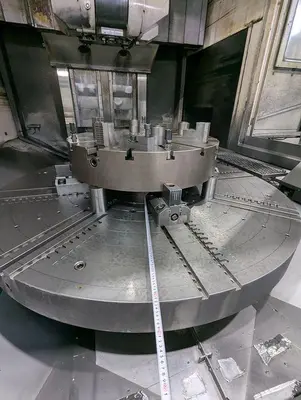

2,000 mm Diameter 4-Jaw Independent Chuck (jaw lock)
5 Controlled Axes (X,Y,Z,B,C)
3 Axes Controlled Simultaneously, Excluding B)
B-Axis Angled Indexing for Turning (Indexing every 5°)
M-Axis Spindle Center Through Coolant - 1.5 Mpa
X, Y, Z and B Axis Scale Feedback
Touch Probe for Workpiece Measurement by Renishaw

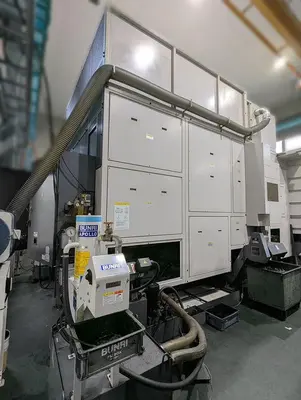

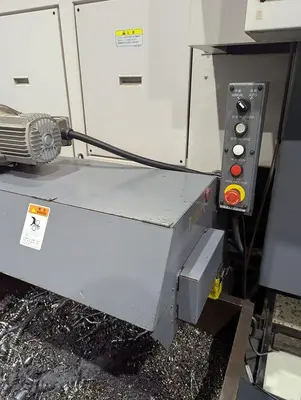

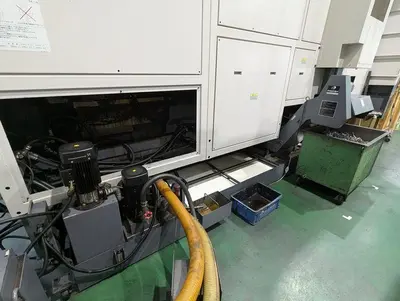

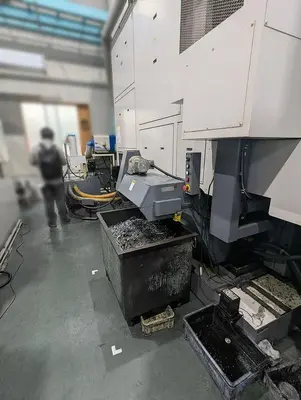

Chip Conveyor - Hinge Type
Automatic Door for Workpiece Removal
Tape Storage Capacity 0 1280 m
Chamfering, corner radius

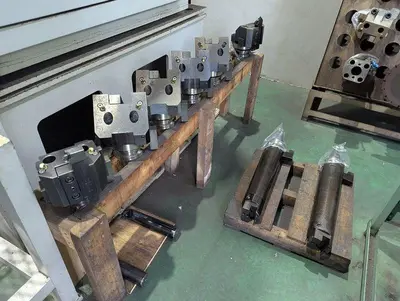

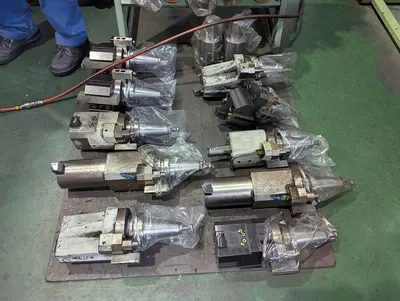

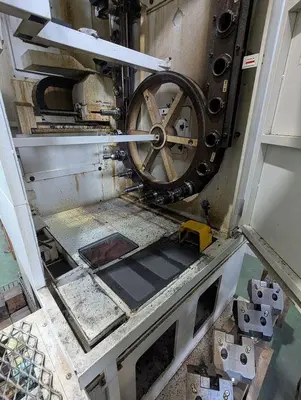

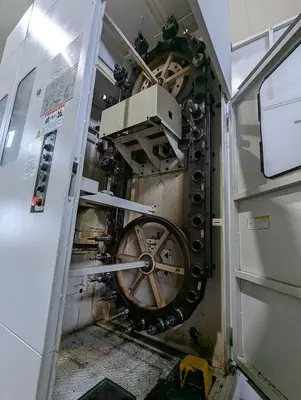

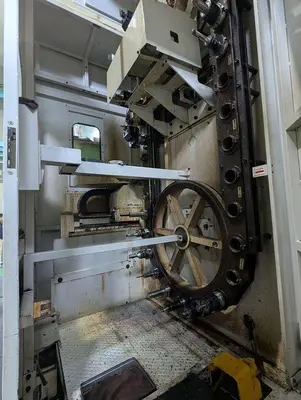

36 Position Automatic Tool Changer
BT50 BIG PLUS
Pull Stud P50T-II

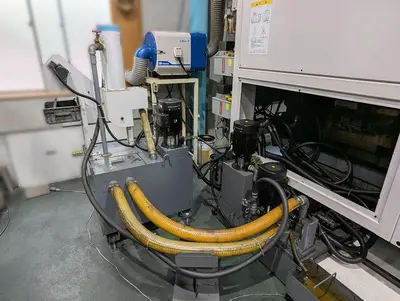

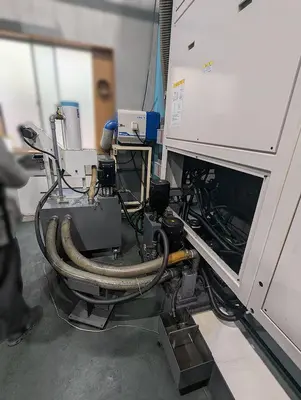

Hydraulic System
Lubrication Sliding Surfaces
(10 min/15 min) Spindle motor (30 min/continuous)
AC 45/37 (low speed)
AC 30/18.5 (low speed)
AC 30/22 (high speed)
(10 minutes/15 minutes) Spindle torque (30 min/continuous)
7670/6307 (low speed)
5113/3153 (low speed)
2701/1981 (high speed)
Specs
Manufacturer: Okuma
Model: VTM 200YB
Year: 2010
Condition: Used
Stock Number: 5654249
Max workpiece diameter: 2,000 mm
Swing: 2,400 mm
Max workpiece length: 1,400 mm
Max workpiece weight: 7,000 kg (including chuck)
Height from floor: 1,210 mm
X axis travel: 1,600 mm
Y axis travel: ±800 mm
Z axis travel: 1,400 mm
Spindle end shape: 380 mm diameter, flat
Shaft diameter at front main shaft: 260 mm
Spindle hole taper XYZ: 164 mm 2°
Main shaft through hole diameter: 160 mm
Spindle support method: Two-point support by tapered roller bearings
Number of spindle speeds: stepless
Spindle speeds: Low 4 - 200 rpm. High 6 - 400 rpm
Spindle speed override: 50 - 150%
C axis minimum setting unit: 0.001°
C axis indexing accuracy: ±0.005°

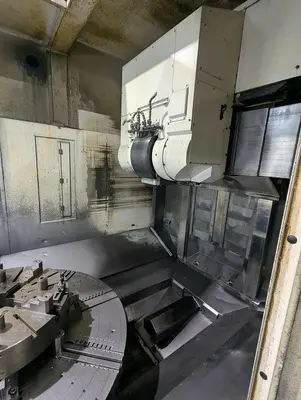

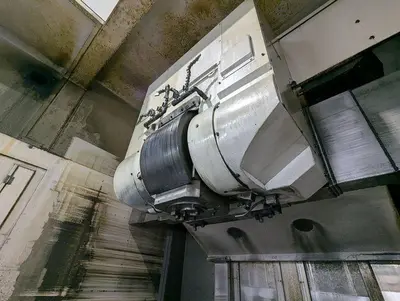

Tool spindle M axis shaft diameter: 90 mm
Tool spindle M axis gear stage number: Stepless
Tool spindle M axis rotation speed: 4,000 rpm
Tool spindle B axis angle: 90°
Tool spindle B axis minimum setting unit: NC Indexing (5° indexing combined)
Rapid feed x/y/z: 16 m/min
Cutting feedrate x/y/z: 0.001 - 500 mm/rev
Power capacity: NFB 250A
Floor space: 6,195 x 7,325 mm
Machine weight: 35,000 kg (chuck & pallet not included)
