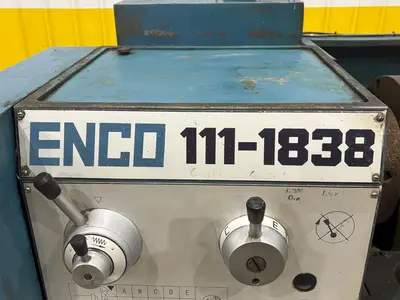

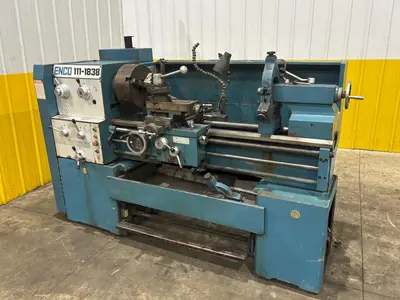

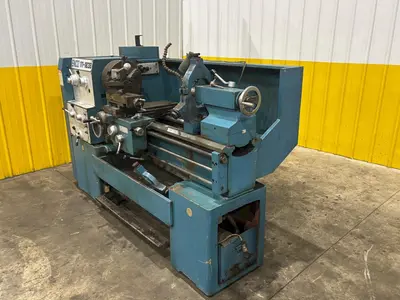

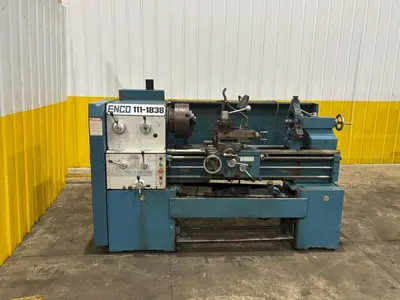

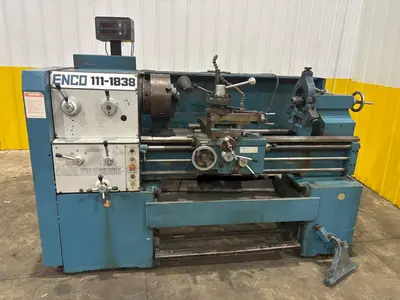

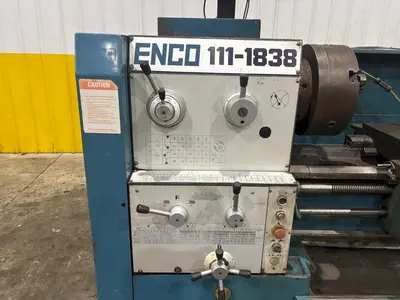

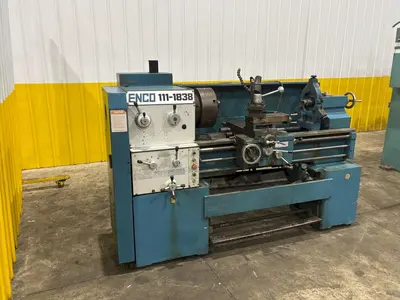

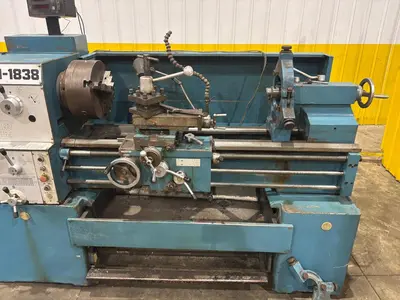

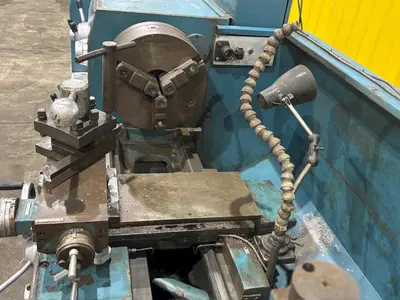

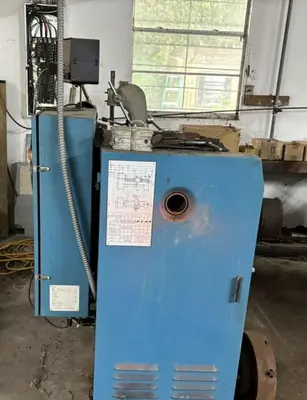

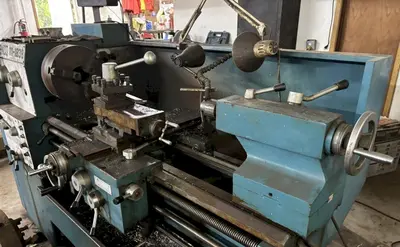

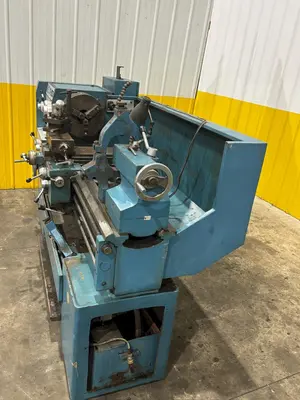

USED ENCO ENCO 111-1838

SERIAL 936965
NEW 09/1993
MODEL ENCO 111-1838
SWING OVER BED 19.6" (500 MM)
SWING OVER GAP 630 MM
SWING OVER CROSS 325 MM
CENTERS 39.37" (1.000 MM)
WED WITH 330 MM
SPINDLE BORE 2.56" (65MM)
SPINDLE SPEEDS (15) 22 TO 1800 RPM
CROSS FEEDS (66) .036 TO 20.19 MM/R
LONGITUDINAL FEEDS (66) .072 TO 4.038 MM/R
INCH THREADS (66) 1 TO 56 TPI
METRIC THREADS (66) .5 TO 25 MM
MODULAR THREADS (33) .5 TO 3.5 MP
DIAMETRICAL THREADS (33) 8 TO 56 DP
TOP SLIDE TRAVEL 130 MM
CROSS SLIDE TRAVEL 300 MM
TAILSTOCK QUILL TRAVEL 120 MM
TAILSTOCK QUILL DIAMETER 75 MM

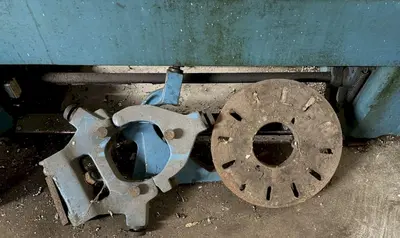

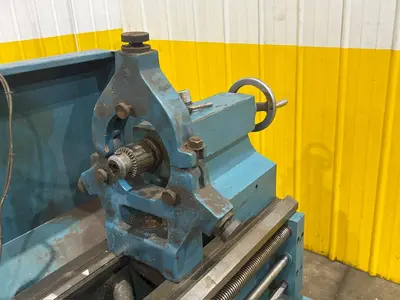

STEADY REST
FOLLOW REST

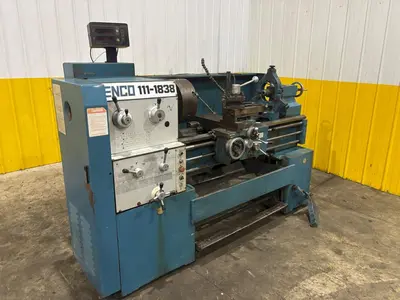

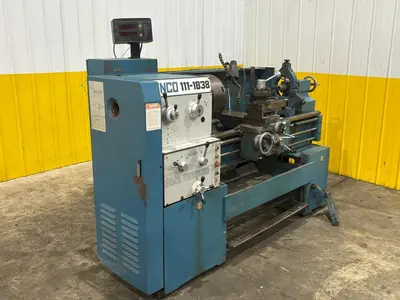

DIGITAL READ OUT 2 AXIS
MAIN MOTOR 7.5 KW

2420 X 1150 X 1650 MM
WEIGHT 1600 KG
Brand
ENCO
Type
Lathes, Engine
Stock No.
24324
