This Barely used Goodway GLS-200 CNC Turning Center is designed for high-speed, precision machining. Engineered with a compact design and rigid 30° slant bed, it ensures maximum stability and accuracy in heavy-duty turning operations. This advanced machine is ideal for modern machining and milling applications, with features like optional live tooling, C-axis, and Y-axis that enable multiple processes in a single setup. The Meehanite casting and Finite Element Methods (FEM) ensure superior structural integrity, while the fully enclosed splashguards and automatic lubrication system maintain a clean and efficient workspace.
| size | 8" Chuck | 8" Chuck |
| Swing | 19.69" | 500.13 mm |
| Machining Length | 19.69" | 500.13 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.05" | 52.07 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 15.75" | 400.05 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

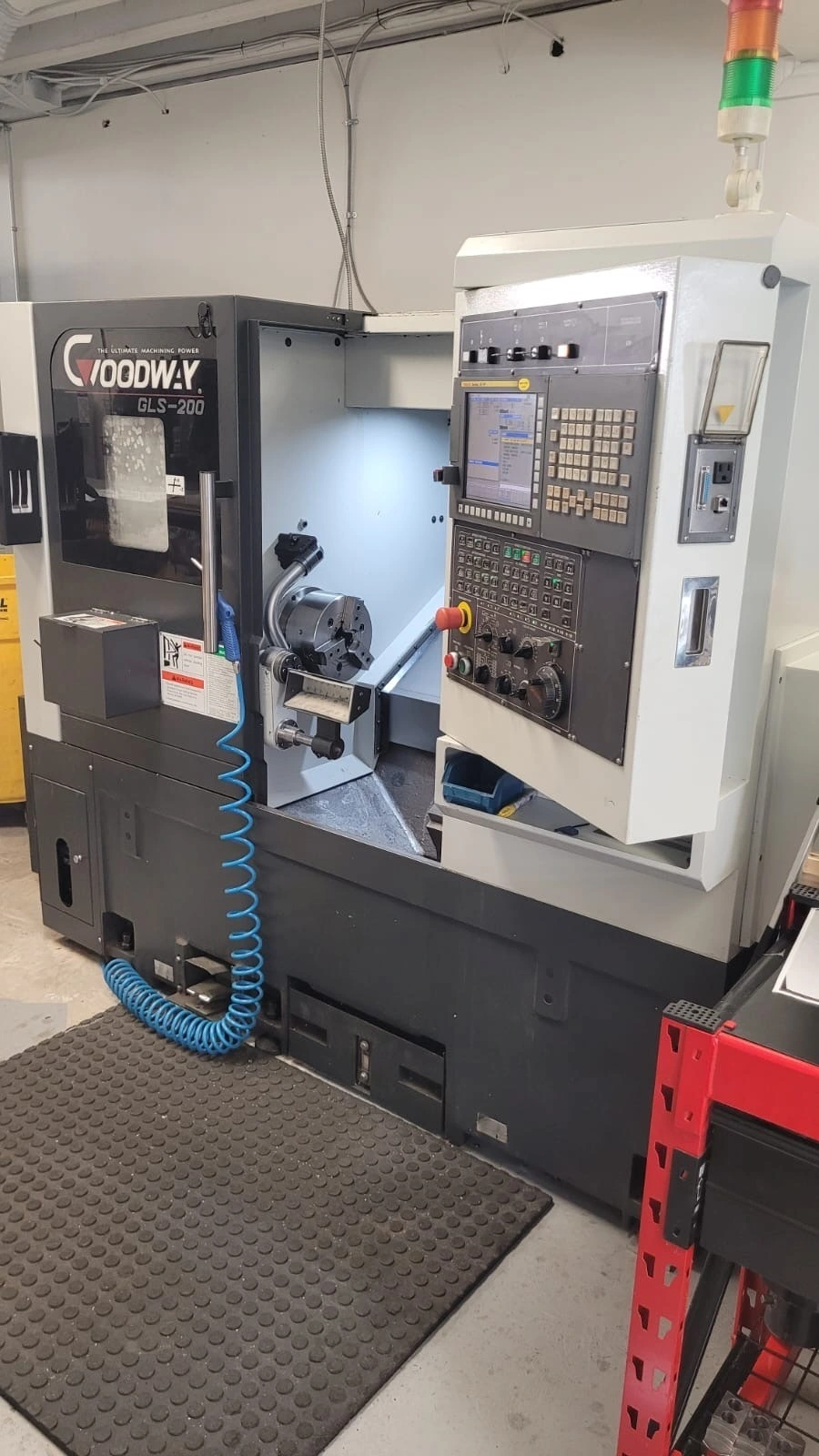

Goodway GLS-200 CNC Lathe (2016)
Max Swing Diameter 19.685"
Swing Over Saddle 12.205"
Max Turning Diameter 11.024"
Max Turning Length 19.685"
Standard Chuck Size 203.2 mm
Standard Bar Capacity 2.5591"
Hole through spindle 2.9921"
Spindle Bearing Diameter 4.3307"
Spindle Nose A2-6
Spindle Speed 4,500 RPM
CN Control FANUC OI-TD
