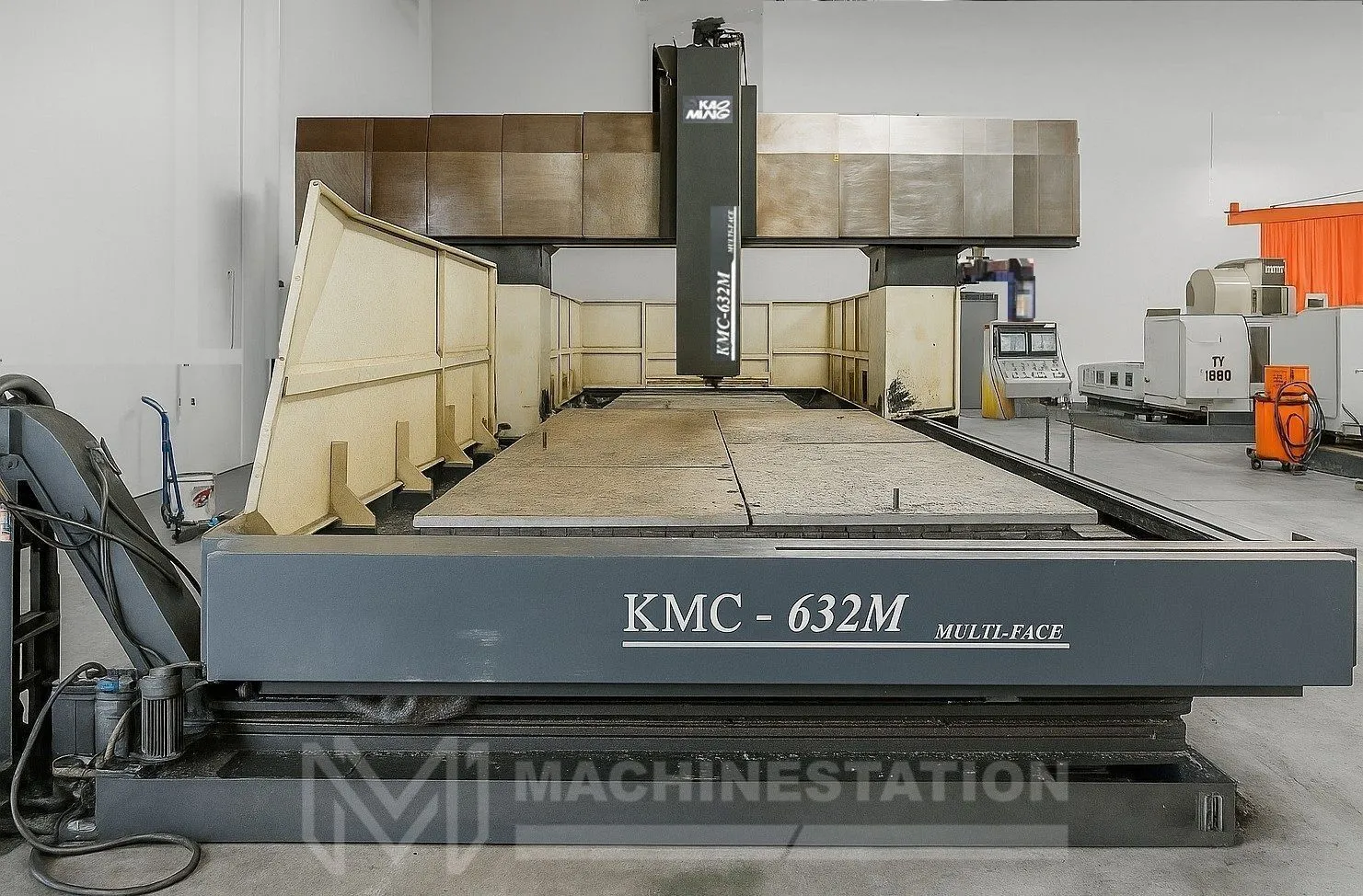

USED 2012 KAO MING KMC 632M

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

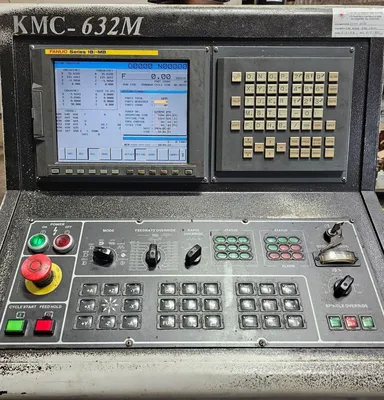

Fanuc 18iMB CNC Control

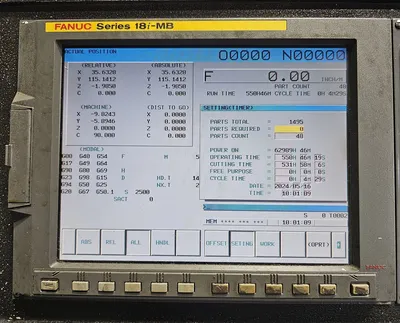

531 Hours Cutting Time
236.22″ X 102.36″ Table
30 Station Side Mount Tool Changer
CAT-50 Spindle Taper
35 HP high torque spindle motor
4000 RPM Spindle
Rigid Tapping
Spindle Orientation
PCMCIA Card Slot
RS-232 Port
Auto Lubrication System
Coolant System

Travels:
X-Axis: 245.27″
Y-Axis: 151.57″
Z-Axis: 43.30″
Distance Between Columns: 125.98″
Distance From Table Surface to Spindle Nose: 13.6″ - 56.9″
Distance From Table Surface to Horizontal Spindle Center: 5.2″ - 48.5″
Rapid Traverse X-Axis: 276 IPM
Rapid Traverse X-Axis: 393 IPM
Rapid Traverse X-Axis: 393 IPM
Cutting Feedrates: 196 IPM

Table:
Length: 236.22″
Width: 102.36″
Max Weight on Table: 33,000 lbs

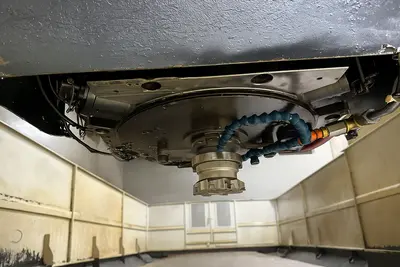

Spindle:
Taper Size: CAT-50
Speed Range: 4400 RPM (4000)
Spindle Power: 35 HP

Automatic Tool Changer:
CAT-50 Taper
Capacity: 30
Max Tool Weight (V/H): 44 lbs / 33 lbs
Max Tool Length (V/H): 13.80″ / 11.80″
Max Tool Diameter (Without Adjacent Tools): 5.70″ (7.87″)

General:
Air Required: 98 psi 4 scfm
Power: 205-235v / 66FLA / 3-Phase 70 Kva
Overall Dimensions: 564″ x 295″ x 200″ High
Weight: 127160 lbs.

4th Axis Ready
Spindle Chiller Unit
Screw Type Chip Conveyor
Chip Conveyor
All side Guardians Comes with Machine
Aluminum Fixture Plate Mounted on Table
