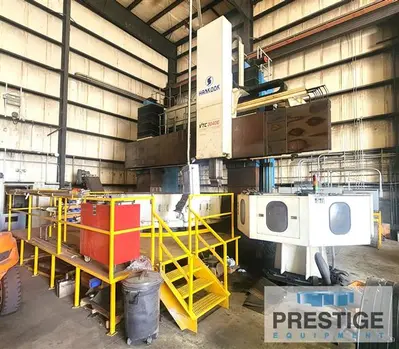

USED 2008 HANKOOK VTC 30/40E

Serial Number: 39G08588

SPECIFICATIONS:

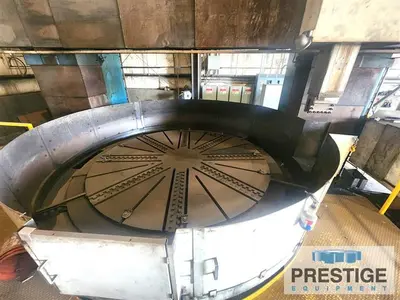

Table Diameter: 118.11"
Maximum Swing: 157.48"
Maximum Under Rail: 92.5"
Ram Stroke: 63"
Table Speeds: 0-120 RPM
Table Weight Capacity: 66,140 Lbs
C-Axis Indexing: .001 Degrees
Live Spindle Motor: 35 HP
Live Spindle Speeds: 1500 RPM
Rapid Traverse, X and Z-Axes: 315 IPM
Rapid Traverse, W-Axis: 19.7 IPM
Table Drive Motor: 100 HP
Approximate Machine Weight: 209,500 Lbs

Equipped With:

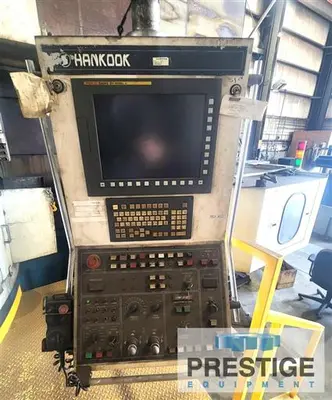

Fanuc 31iA CNC Control
118.11" 4-Jaw Chuck
C-Axis Table with Live Milling Spindle
24-Station (12M/12T) Automatic Tool Changer
Double Column Design
Coolant System
Chip Conveyor

NOTE:
Inspect Under Power In Midwest Plant!

Features:
Fanuc 31iA CNC Control
C-Axis Table W/ Live Milling Spindle
24-Station Automatic Tool Changer
