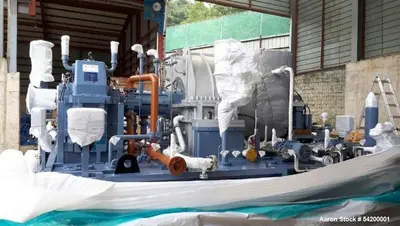

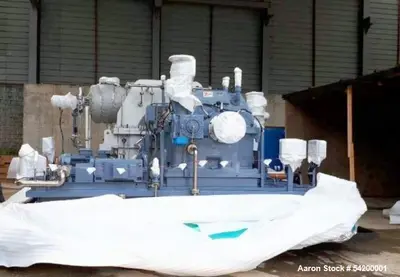

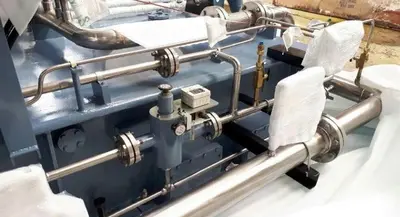

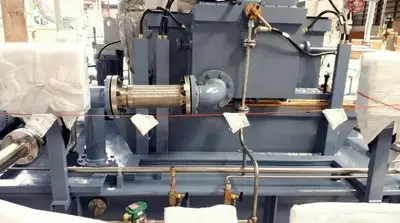

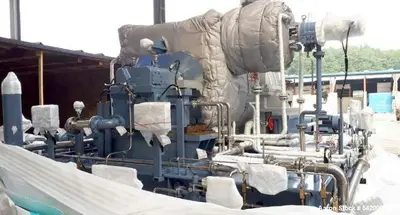

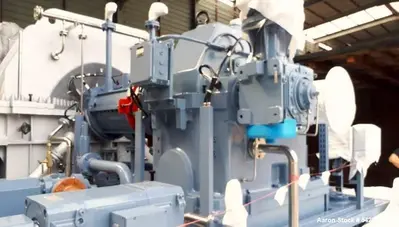

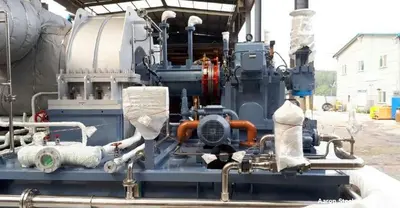

Unused Triveni Steam Turbine Generator – Model TST-2100LR, 9.8 MW, 1800 RPM

Manufacturer Information

Manufacturer: Triveni Turbines Ltd.

Model: TST-2100LR

Type: Steam Turbine Generator

Condition: Unused – built 2018

Description
This unused Triveni Steam Turbine Generator, Model TST-2100LR, is a high-efficiency industrial power generation system rated at 9.8 megawatts (MW) output.
Designed for industrial cogeneration, utility power, and process steam recovery applications, the turbine operates at an inlet pressure of 38.57 bar (559 psi) and temperature of 395°C (743°F), handling 57 tons of steam per hour.
Featuring a bleed at 19.7 bar (286 psi) and exhaust pressure of 0.288 bar (4.18 psi) at 68.2°C (154.8°F), the TST-2100LR provides stable, reliable performance with optimized thermodynamic efficiency for medium-to-large scale industrial operations.

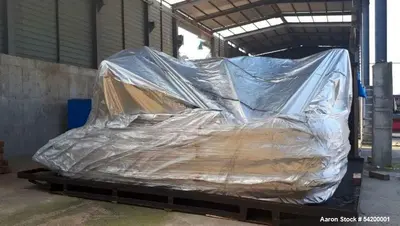

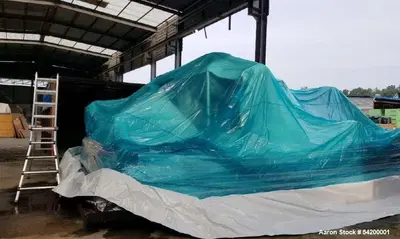

Operating at 1800 RPM, this turbine is precision engineered for long life, low vibration, and high thermal efficiency. Built in 2018 and never used, it remains in factory-preserved condition, ready for installation in power generation, refinery, or process plant systems.

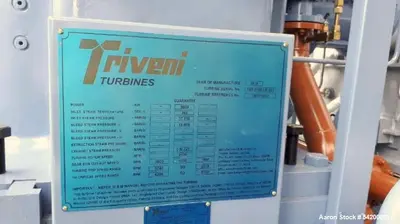

Specifications

Manufacturer: Triveni Turbines Ltd.

Model: TST-2100LR

Type: Steam Turbine Generator

Rated Output: 9.8 MW

Inlet Steam Pressure: 38.57 bar (approx. 559 psi)

Inlet Steam Temperature: 395°C (743°F)

Steam Flow Rate: 57 tons/hour

Exhaust Pressure: 0.288 bar (4.18 psi)

Exhaust Temperature: 68.2°C (154.8°F)

Bleed Steam Pressure: 19.7 bar (286 psi)

Bleed Steam Temperature: 316.1°C (601°F)

Speed: 1800 RPM

Condition: Unused (Built 2018)

Applications

Industrial and utility power generation

Cogeneration (combined heat and power) plants

Sugar mills and ethanol distilleries

Pulp and paper manufacturing plants

Oil refineries and petrochemical facilities

Food and beverage process steam systems

District heating and captive power units

Renewable energy (biomass, waste-to-energy) systems

Fertilizer and chemical processing

Textile and industrial manufacturing plants

What Might This Be Used For?
The Triveni TST-2100LR Steam Turbine Generator is designed for high-efficiency electrical power and process steam generation in industrial and utility operations.
Ideal for cogeneration and captive power plants, it converts process steam into electrical power while recovering thermal energy for industrial use. This unused 9.8 MW turbine offers significant cost and energy savings for refineries, distilleries, biomass plants, and other large-scale industrial applications.
