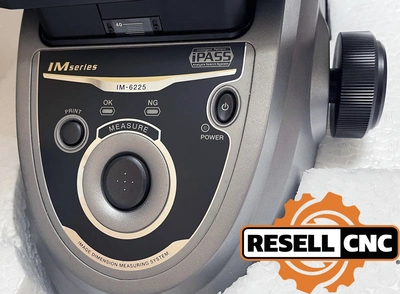

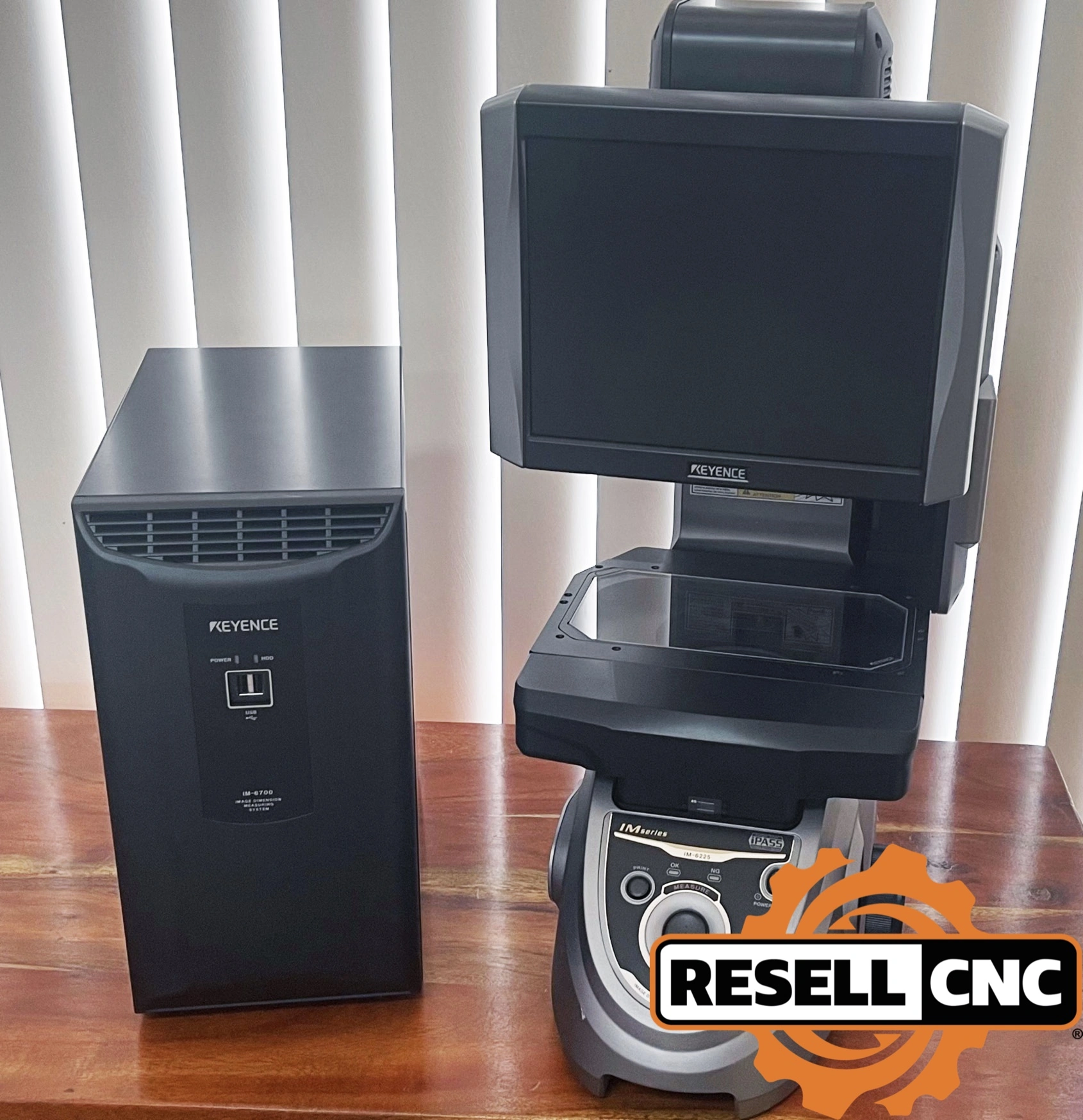

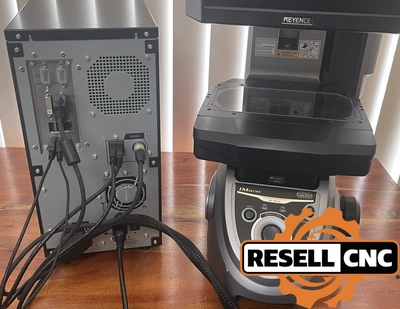

USED 2015 Keyence IM-6225

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Specs:

Field of View: 3.94" x 7.87"

Measuring Range: 0-2.36"

Measurement Positioning Accuracy: +/-0.003"

Measurable Area (Standard Probe): 1.77" x 3.74"

Measurable Area (Wide-Range Probe): 3.74" x 3.74"

X-Axis Moving Range (Electric ): 3.94"

Z-Axis Moving Range (Electric): 1.18"

Withstand Load: 2 kg

Min. Display Unit, Distance: 1 um



Equipped With:

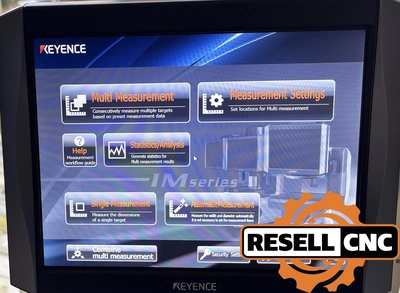

10.4" LCD Monitor

1" 6.6 Mega Pixel Monochrome CMOS

Double Telecentric Lens

B Axis: false
C Axis: false

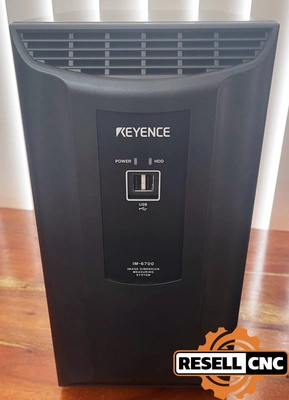

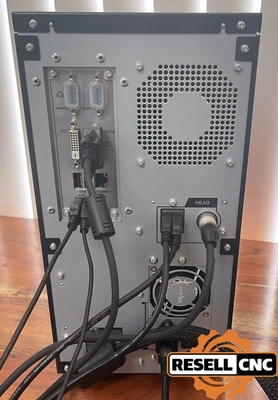

Control Make Model: IM-6701
Inspection Equipment Type: Inspection Tables
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
