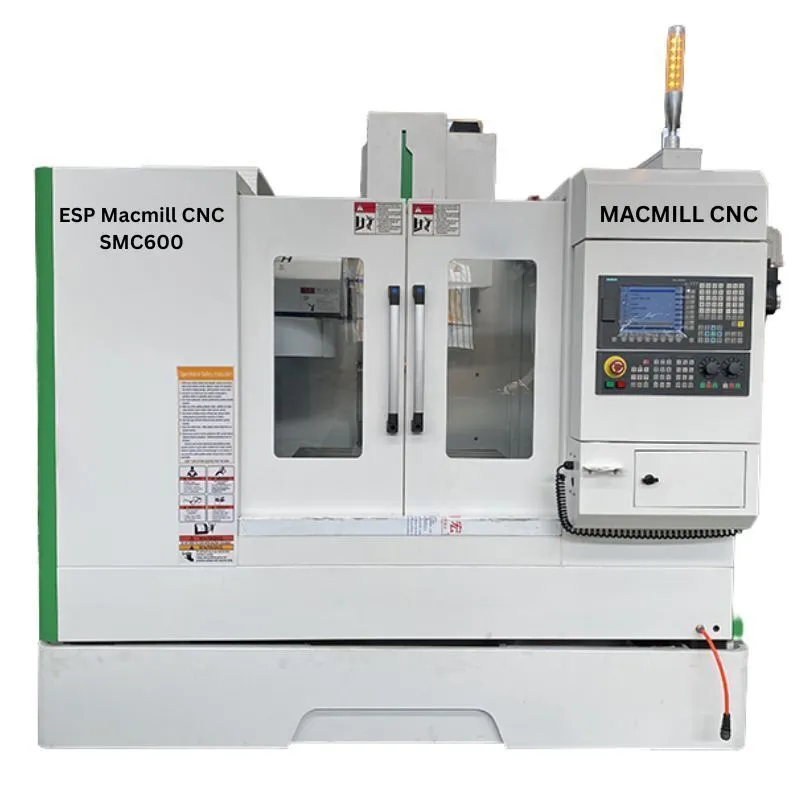

A great small VMC ideal for intricate components.
SMC600 with disc -type 20-
station tool turret
Fanuc control with graphics
Three linear guideways, fully enclosed
protection, alarm lamp, cabinet cooling,
automatic lubrication system, domestic
ball
screws, NSK screw bearings, Taiwan
BT40 spindle, coolant through coolant,
air curtain, BT40 disc -type 20-station
type tool
changer, manual chip removal, NC
system, main motor 3.7 -5.5kW
20-station disc-type tool reference drawing
| X | 600 mm | 23.622" |
| Y | 400 mm | 15.748" |
| Z | 450 mm | 17.717" |
| Table Size | 800mm x 320 mm | 800mm x 320 mm |
| Power | 5.5 kW | 7.4 hp |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 20 | 20 |
| Taper | BT40 | BT40 |
| Control | CNC (CNC (Fanuc)) | CNC (CNC (Fanuc)) |
| Dimensions | 82.68 x 70.87 x 86.61 | 82.68 x 70.87 x 86.61 |
| Weight | 4188.78 | 4188.78 |
Model:SMC600
Main motor power:5.5KW
Spindle max. rotating speed:Servo spindle 8000rpm
Z motor torque:15n.m
X motor torque:6n.m
Spindle taper:BT40
Worktable size:800x320mm
Travel (Longitudinal X/Horizontal YMertical
Z):600x400x450mm
Distance of spindle axis to guideway plane:350mm
Distance of spindle end to worktable:80-530mm
The vertical permissible error of spindle: less than 0.02mm
Positioning accuracy:0.02mm
Repeated positioning accuracy:0.01mm
Machine overall dimension
(LxWxH)mm:2600x1950x2400mm
Machine net weight :2800kg
