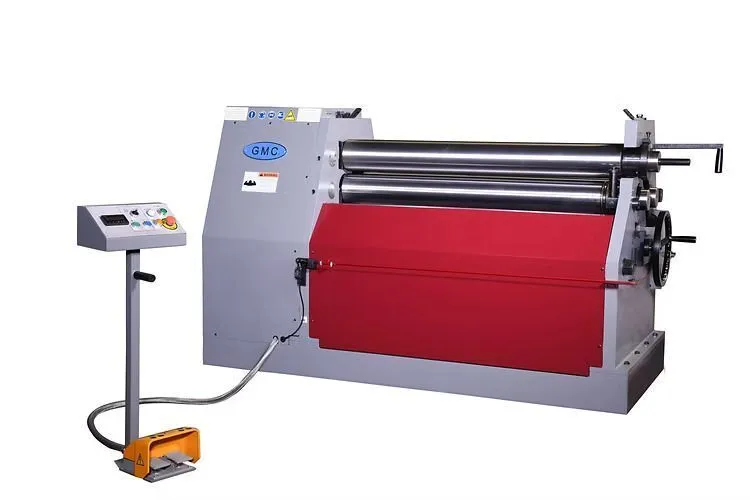

NEW GMC HBR-0625
Overview
Discover the new GMC HBR-0625, a 6' x 1/4" plate roll machine perfect for diverse metalworks. With a 5-1/2 HP motor, it handles mild steel, stainless steel, and aluminum. Features include an LED bending roll indicator and safety enhancements.
Specs
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us
Roll Capacity:
Mild Steel 6' x 1/4"
stainless steel 6' x 3/16"
soft aluminum 6' x 3/8"
min. thickness 22GA
Min. Roll dia. 8 1/2"
Rolls Length 6' 8"
Rolls Dia. 7 1/2"
Pre-bend 0.18"
Rolls speed 5 RPM
Rolls Opening 3/4"
Oil Tank Cap. 45L= 12 Gal
Main Motor 5-1/2 HP n20A/220V or 10A/440V
Weigth 6150 lbs
Dimensions 118" x 38" x 58"
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Cone attachment (to make cone parts)
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire
