| X | 33.46" | 849.88 mm |
| Y | 20.5" | 520.7 mm |
| Z | 23.6" | 599.44 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT40 | CT40 |
| Table-W | 43.3" | 1,099.8 mm |
| Table-L | 20" | 508 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc OiM) | CNC (Fanuc OiM) |
| Dimensions | 97" x 95" x 104" | 97" x 95" x 104" |
| Weight | 12,566 lbs | 12,566 lbs |
Specifications (subject to buyer verification):
Taper: CT40
RPM: 6,000
HP: 10
ATC: 24 Tools
Maximum Tool Length: 11.81”
Maximum Tool Diameter: 3”
Maximum Tool Weight: 15.5 lbs
Table Size L x W: 43.3” x 20”
Maximum Workpiece Weight: 2,204 lbs
Number of Axis: 3
X Axis Travel: 33.46”
Y Axis Travel: 20.5”
Z Axis Travel: 23.6”
Dimensions: 97” x 95” x 104”
Weight: 12,566 lbs
Equipped With (subject to buyer verification):

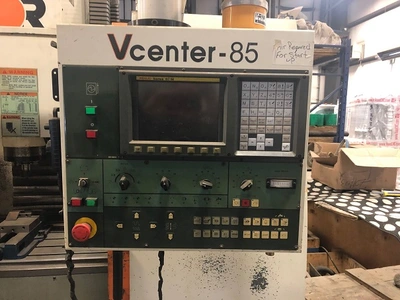

Fanuc OiM CNC Controller
Chip Conveyor
Coolant Tank
