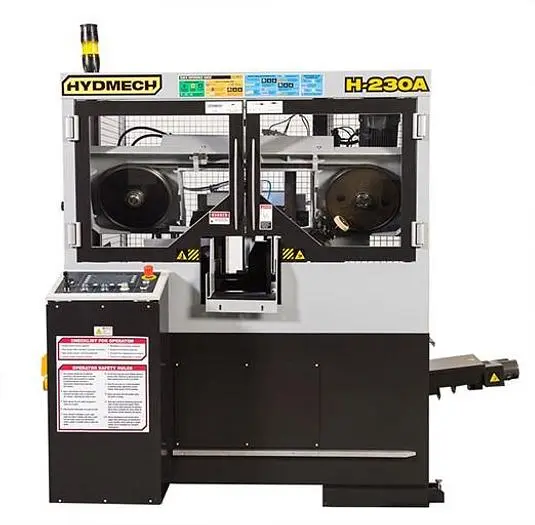

NEW HYDMECH GROUP H-230A

Delivery:
TBD
Terms:
Net Before Ship
F.O.B.:
Conway, AR
Technical Specifications
Blade Size 1” x 9’ 8”
Remnant Length 2.5” (6” with bundling)
Blade Drive 3 HP VFD
Coolant Tank Capacity 30 Gallons
Machine Voltage 208*, 240, 480, 575* v
Machine Weight 2,200 lbs.
Blade Speed 50-350 SFM
Table Height 35”
Automatic Multi-indexing 0-19”
Dimensions (w x l x h) 61” x 63” x 67”
Standard Machine Features
• Heavy-duty, cast iron saw head
• Spilt front vise
• Cast iron shuttle features automatic multi-indexing up to 19” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
• On-demand hydraulics
• Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
• Variable vise pressure • 3 HP VFD. True direct blade drive – no belts/pulleys
• Full capacity, full stroking hydraulic vises
• Hydraulic positive down feed
• Blade chamber separates material from cut part
• Cast iron band wheels
• Automatic PLC, touch screen control programmable up to 20 jobs with 5 in queue.
• Replaceable blade brush
• Robust steel base
• Automatic chip removal auger
• Blade breakage switch • Easy access electrical panel and hydraulics
• Designed for safety with saw-in-a-box style
• Out of stock switch
• Mechanical band tensioning with digital readout
• Replaceable carbide guide inserts
• Safety door interlocks
• Flood coolant with wash down hose
• Vertical rollers
• Laser light
• Work light
Optional Machine Features
• Full capacity hydraulic overhead bundling
• Mist lubrication
• Idler conveyors • Powered conveyors
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.
