SPECIFICATIONS:
Line Direction: Right to Left
Maximum Tube Diameter: 2-1/2″ (63.5 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Wall Thickness: .095″ (2.41 mm)
Minimum Wall Thickness: .020″ (.508 mm)
Maximum Line Speed: 180 FPM, Maximum Gear In Speed, No Load
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI
GEARBOX DATA:
Roll Space Forming: 13″ Max
Roll Space Fin & Size: 13″ Max
Horizontal Centers: 15″
Vertical Roll Space: 5″ – 6-3/4″

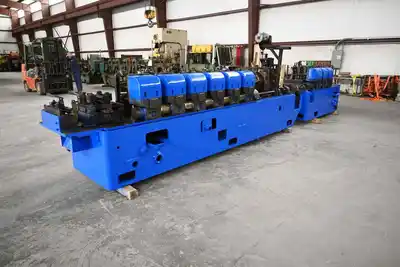

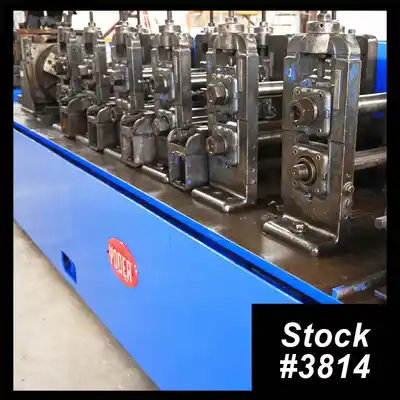

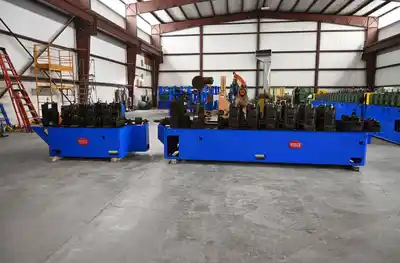

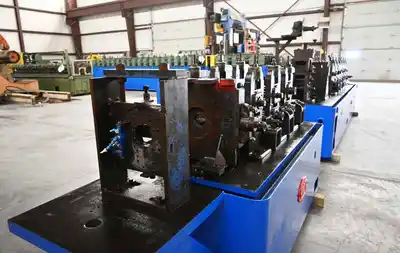

FORMING MILL:
(1) Entry Guide Table

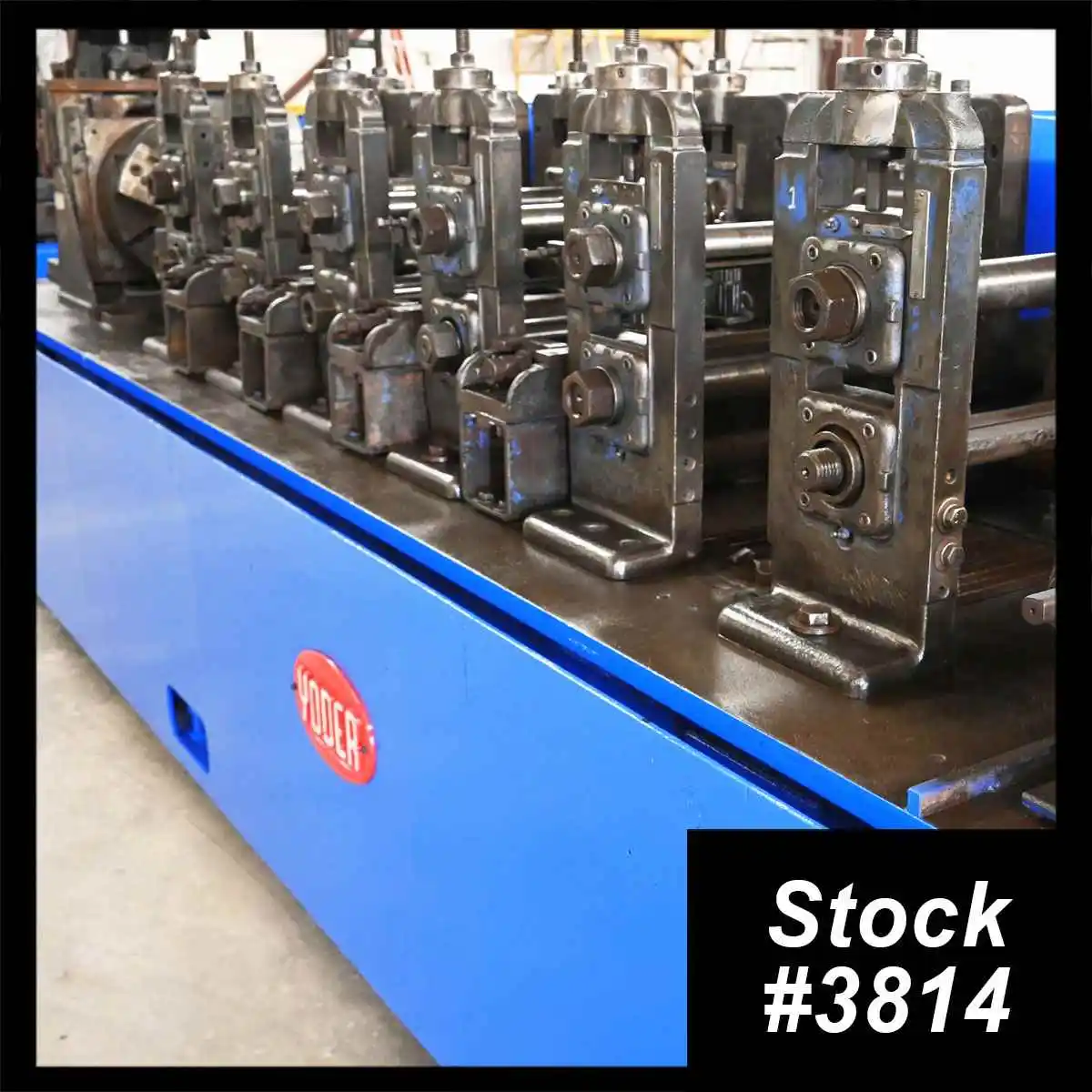

(3) Driven Breakdown Stands
(5) Idle Side Rolls
(3) Driven Fin Stands
WELDING SECTION:

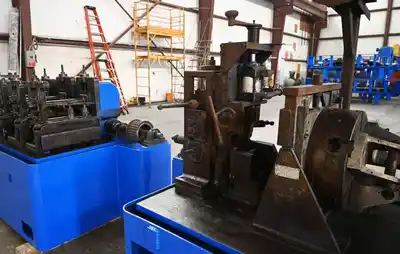

(1) 3-Roll Weld Pressure Unit

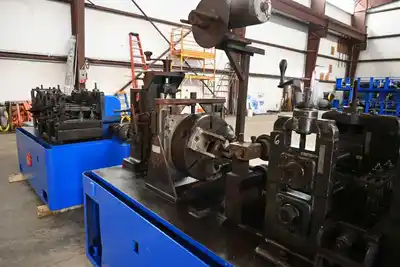

(1) Single Scarfing Unit
SIZING MILL:
(3) Driven Sizing Stands
(3) Idle Side Rolls
(1) Straightener, Turkshead 4-Roll
MILL DRIVE:
(2) 40 HP AC Motors
(1) Control Panel
(1) ABB Drive Panel
LOCATION: Universal Warehouse, Perrysburg, Ohio
