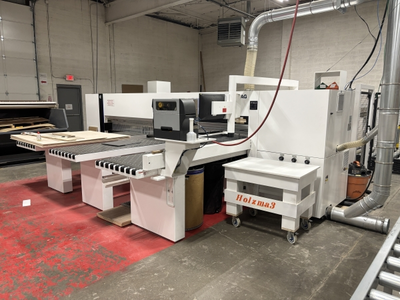

Homag SawTeq B-400 Rear-Load Panel Saw - 2022 Machine!
Overview
Specifications

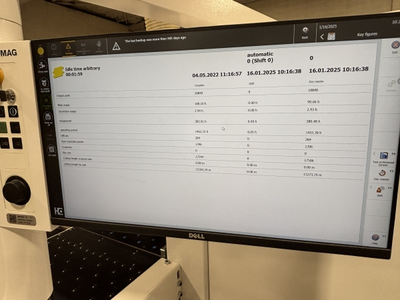

Check out this extremely late model saw, with only a couple weeks worth of hours on the meter! 2022 Homag SawTeq B-400, available immediately!

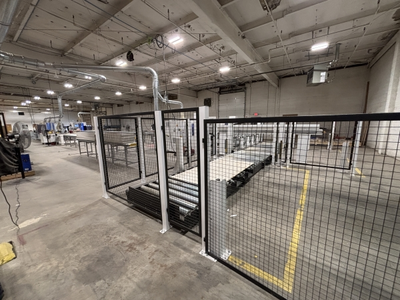

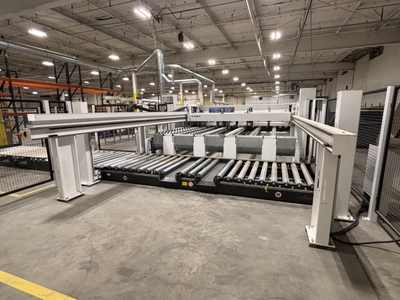

HOMAG SAWTEQ B-400 (HPL 400) US Edition is a flexible saw center. This CNC controlled machine features fast, simple programming coupled with high operating speeds to meet today's varied production requirements. Designed for clean and accurate cutting of a wide range of sheet goods. Equipped with rear lift table, feed system, with main saw and scoring saw. Run by a single operator, the saw is capable of executing a wide range of cutting pattern types.
Maximum Panel Size: 62.99" X 145.67 (1,600mm x 3,700mm)
Cutting Length: 149.6" (3,800mm)

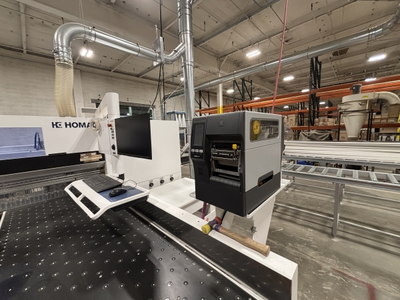

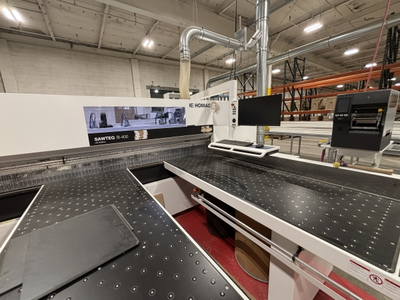

Three Air Tables
Main Saw Blade Diameter: 450mm
Scoring Saw Blade Diameter: 180mm
Main Saw Motor: 37.8 HP
Blade Projection: 4.9" (125mm)
Saw Carriage Speed Forward: 0 - 492 FPM
Saw Carriage Speed Reverse: 492 FPM
Program Fence Speed Forward/Reverse: 82/295 FPM
Automatic Side Pressure Device

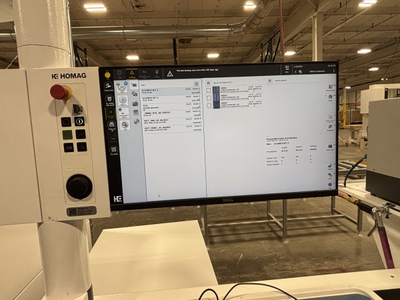

Powercontrol/PowerTouch Touch-Screen w/ Windows 10
CADmatic 5 Control with Assistance Graphic
480v, 3ph

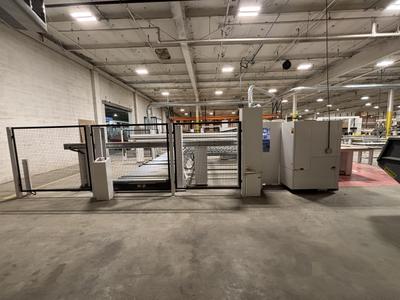

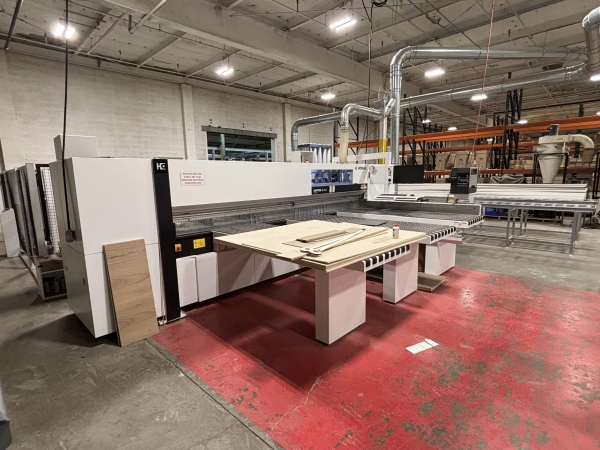

Machine is still installed at the owner's faciliy. Buyer will be responsible for dismantling and loading.
