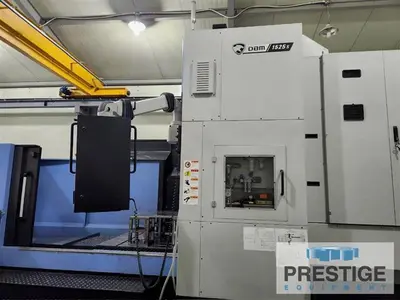

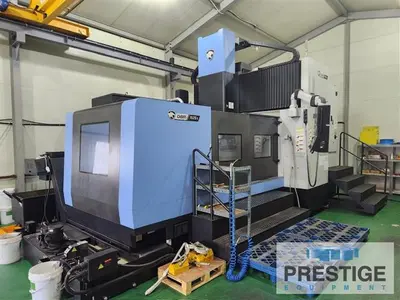

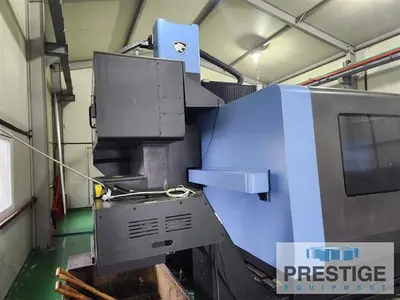

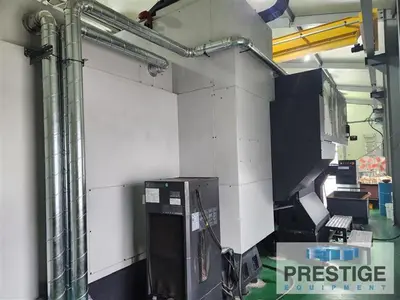

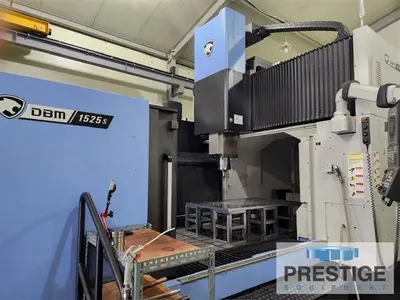

USED 2022 DOOSAN DBM-1525S
Specs
SPECIFICATIONS:
X-Axis Travel: 110.23"
Y-Axis Travel: 53.14"
Z-Axis Travel: 29.52"
Table to Spindle Nose: 9.84"-51.18"
Distance Between Columns: 61.02"
Table Size: 110.23" x 49.21"
Table Capacity: 22,000 lbs
Spindle Speeds: 12,000 RPM
Spindle Drive Motor: 40 HP
Spindle Taper: #50
Machine Electrics: 220/3/60
Approximate Weight: 63,800 Lbs.
Equipped With:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
Linear Scales X,Y & Z Axis
TS27R Tool Setter
11.81" Raised Column
Semi Splash Guard wtih Rear Top Cover
Chip Conveyor
NOTE: This DBM1525S has Z-axis Box Ways & double ball screws to secure heavy duty machining.
Features:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
Linear Scales X,Y & Z Axis
TS27R Tool Setter
11.81" Riser Block
Semi Splash Guard wtih Rear Top Cover
Chip Conveyor
