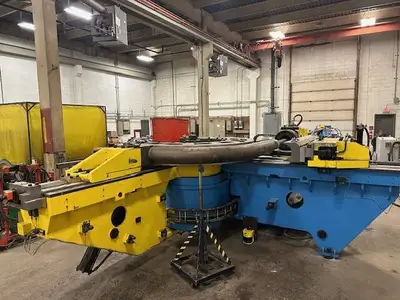

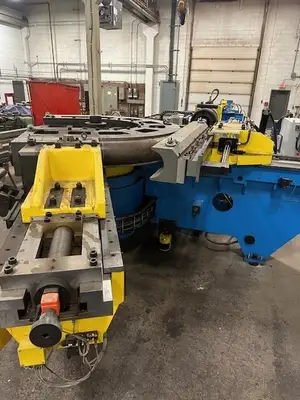

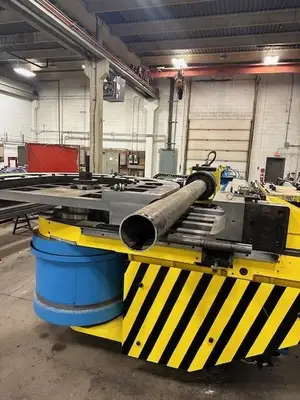

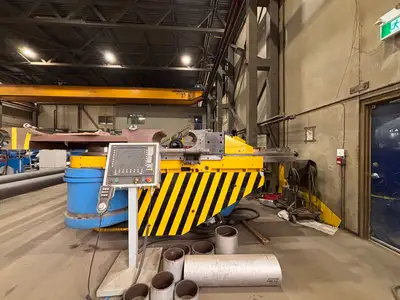

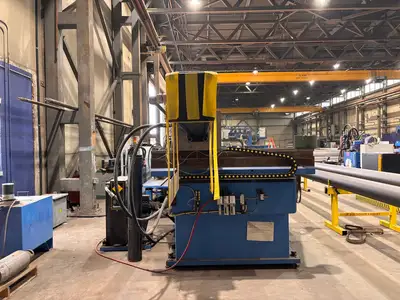

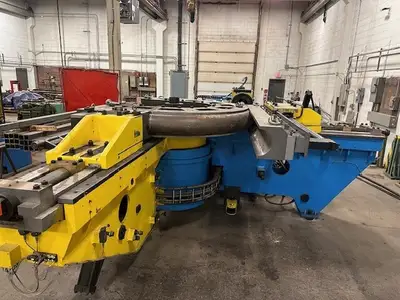

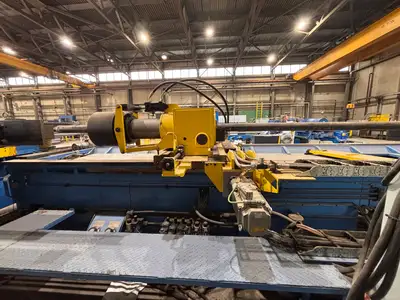

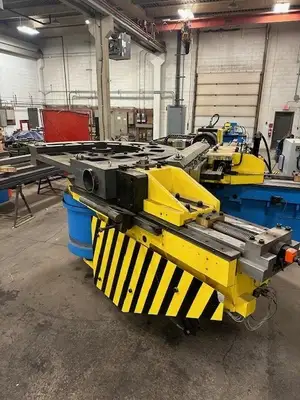

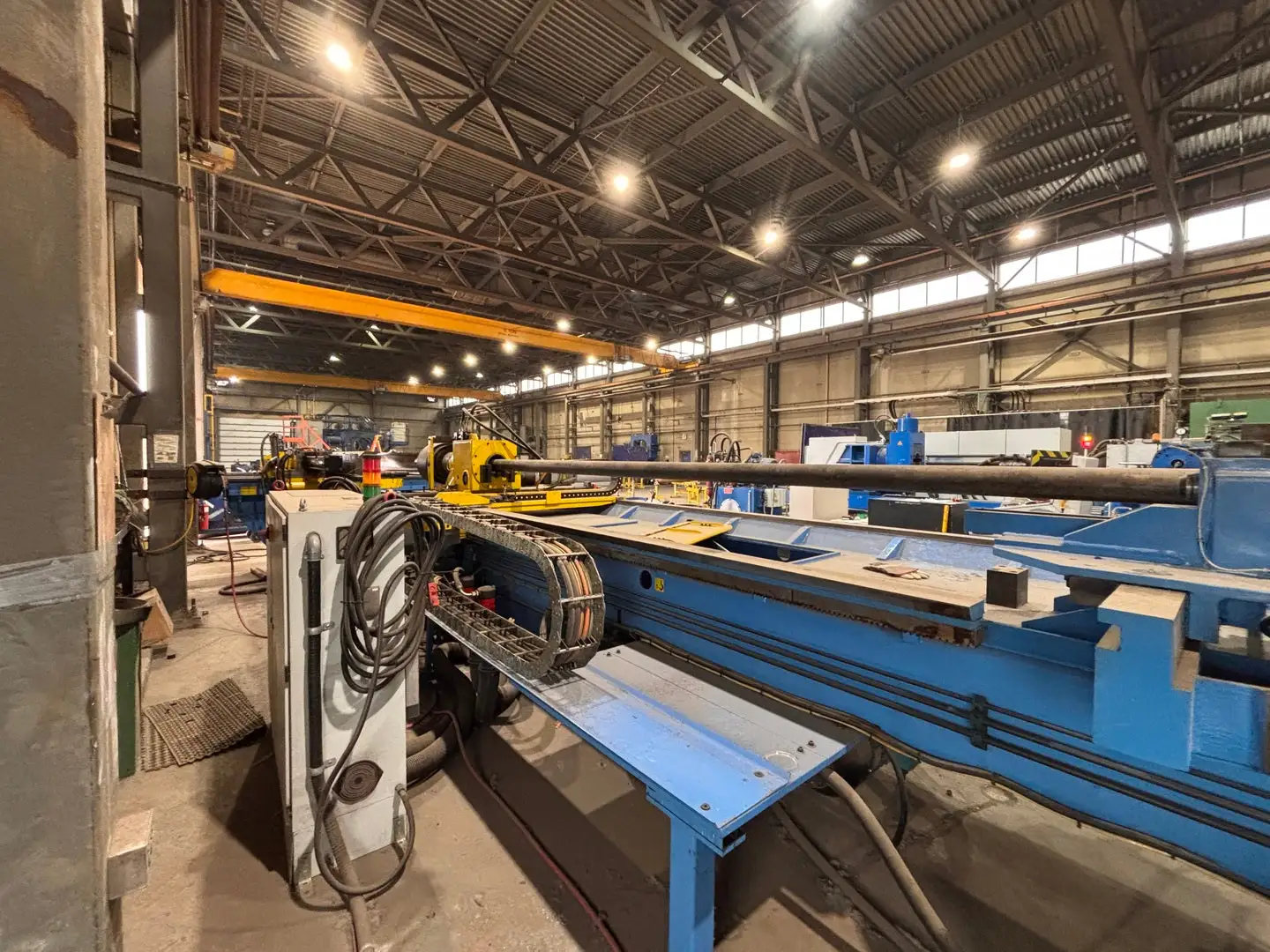

USED 2008 ADDISON MCKEE DB220

Voltage: 380 volts
Phase: 3-phase
Bend Simulation Program Manual PDF

DB 220 Operator Manual PDF

Overview:
Max tube diameter capacity (outside diameter x wall thickness): Up to 219.66 mm (8.65 in) x 12.7mm (0.55 in)
B, C, Y, X axis
330v 3ph, 50hz
Control system: CNC (multi-axis programmable)
Machine weight: Approx. 36 metric tons
Drive type: Hydraulic (with CNC positioning)
Mandrel extraction Hydraulic
347.8 hours of operation.

List of tooling:
*All tooling manufactured by Tools For Bending USA
Slightly used
8" x 5D CLR

All below 'as new' never used:
8" x 3D CLR
6" x 3D CLR
57mm OD x 300mm CLR
76mm OD x 300mm CLR
89mm OD x 400mm CLR
133mm OD x 600mm CLR
159mm OD x 650mm CLR

*includes all clamp and pressure dies and collets for all pipe OD's listed above

Mandrels- OD dimensions- all plug:
Slightly used
8" sch80
8" sch40

All below 'as new' never used:
68mm
79mm
87.5mm
97.5mm
118mm
122mm
138mm
140mm
142mm
4 x 24 foot mandrel rods with internal lubrication capability to fit all above mandrels
