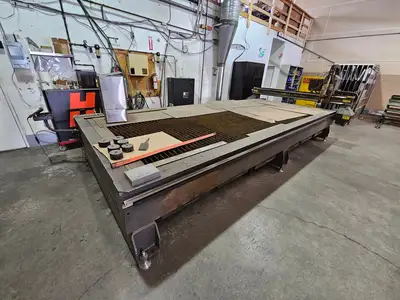

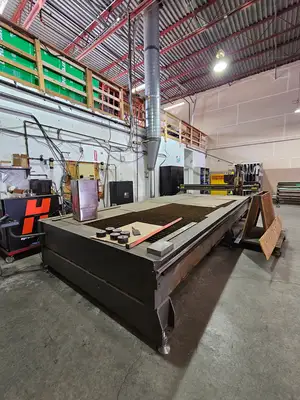

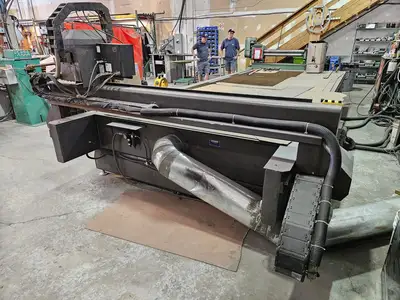

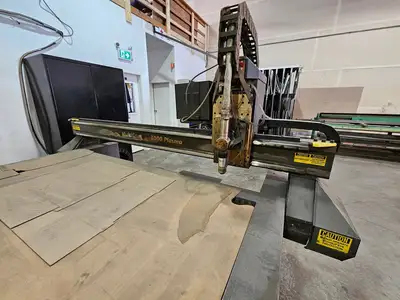

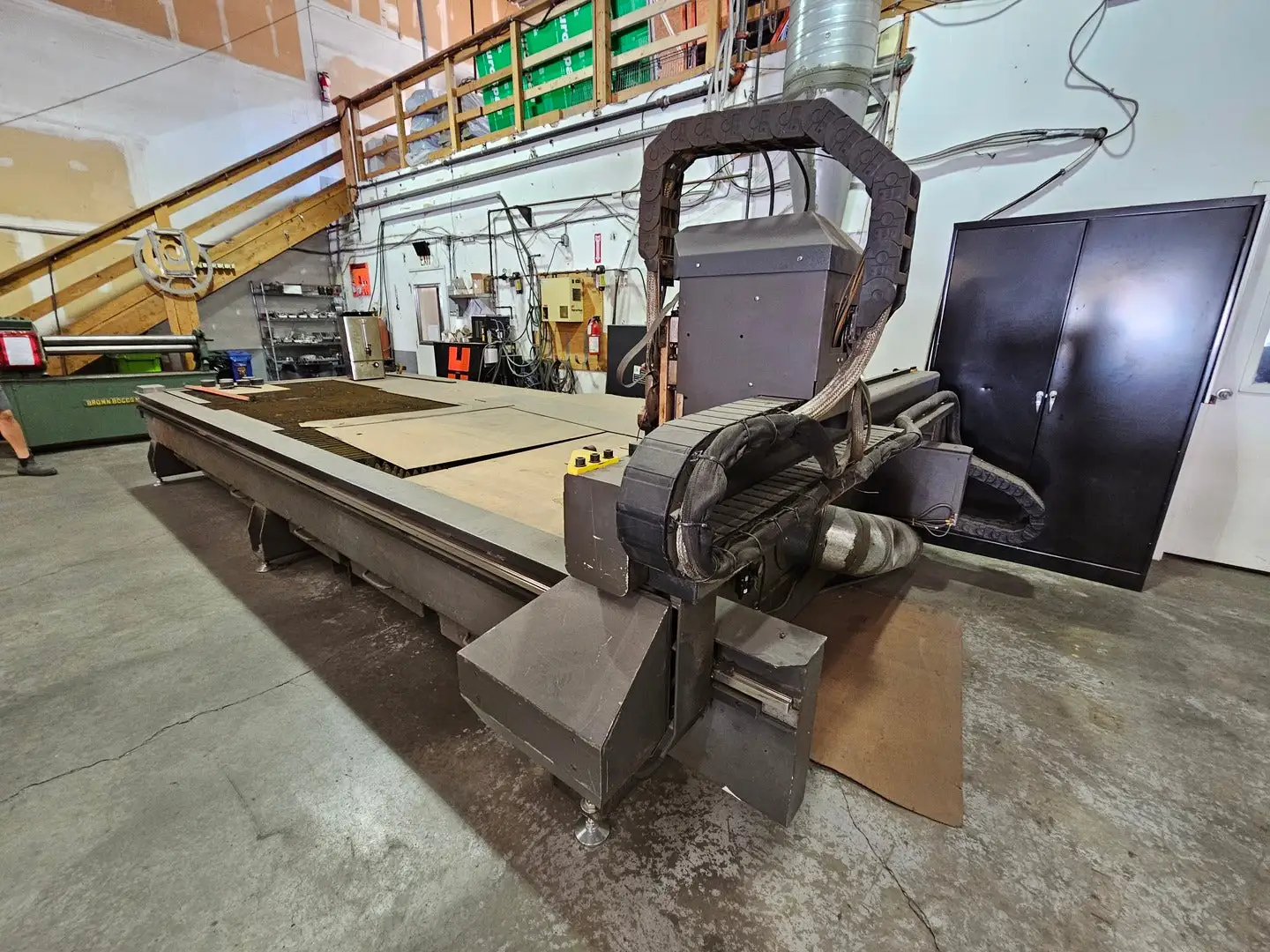

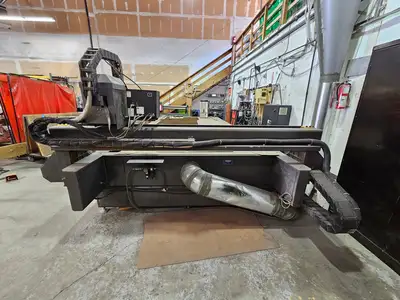

USED 2005 MULTICAM 3000 SERIES

Table Size: 5ft x 14ft
CNC: Yes

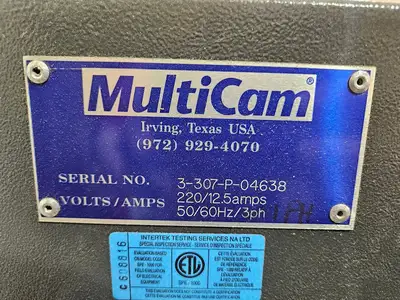

Amps: 12.5 amps
Voltage: 220 volts
Phase: 3-phase
Overview:
Cutting area (X/Y): 60" x 168" (5 ft x 14 ft)
Z-axis travel: 6"
Z-axis clearance: 4", or the maximum thickness of material that can be loaded
Overall length: 206" (5,232 mm)
Overall width: 95" (2,413 mm)
Overall height: Approx. 60" (5 ft)
Weight: Approx. 5,450 lbs

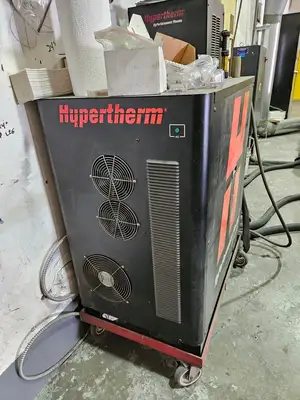

Mild steel capacity: A high-definition model can cut up to 1.56" - 2.375" thick mild steel, depending on the plasma power source
Stainless steel capacity: Up to 0.875" - 1.5" thick stainless steel
Aluminum capacity: Up to 1" - 1.5" thick aluminum.
